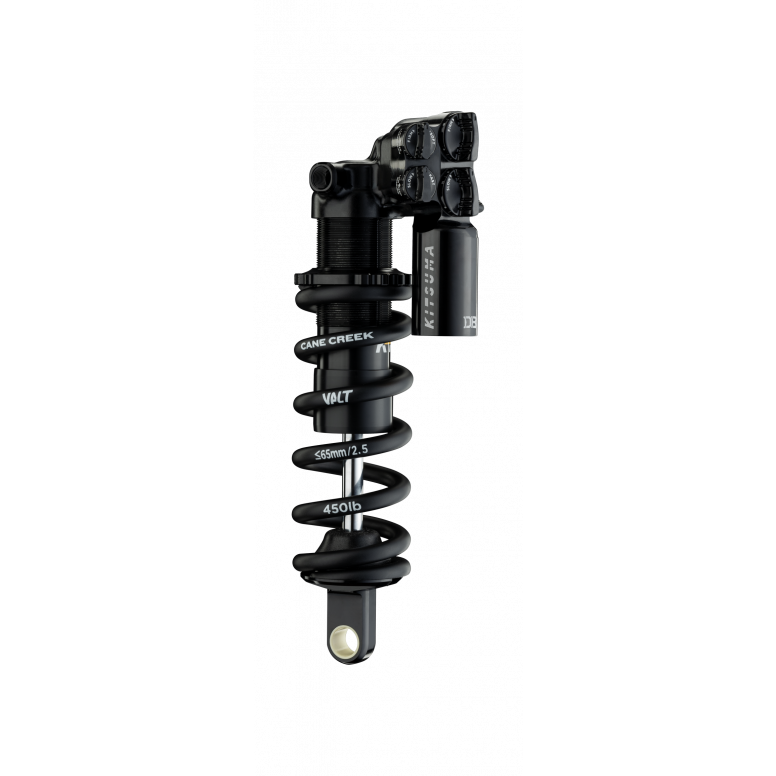

Cane Creek G2 Kitsuma Coil Trunnion

Kitsuma turns your bike into a downhill bike. It hugs the ground on the roughest and steepest trails. It gives you maximum grip, a planted feel, and allows you to go faster thanks to a more personalized tune. It’s the only 4-way adjustable shock that’s tunable by hand – making it easier to move through the setup process and get back to ripping down the trail faster than before.

This second generation Kitsuma shock has updates that make it easier to tune and more reliable than ever.

G2 Updates:

• Single-turn dials on ALL adjustments with laser-etched marks for easier, more intuitive tuning.
• Easy-turn dials feature machined grooves for precise feel
• Greater control on big hits, hard compressions, take-offs & landings
• Higher native HSR tune
• More plush on abrupt impacts and chunky trails
• Lower native HSC tune
• Updated valve seats and damper tube material for greater reliability
• Updated, modern graphics

Features

• Damper: Twin-tube, independent high & low speed compression and rebound circuits. Motorex 4wt damper oil. Largest oil volume of Cane Creek shock line.
• Adjustments: Single turn, 11 positions on: high speed compression, low speed compression, high speed rebound, low speed rebound. Kitsuma Air uses easy, tool-free volume reduction to increase progression
• Climb Switch: 9.5mm, solid steel3 position CS lever : Open, Climb, Locked
• Shaft Diameter: (Coil and Air) 9.5mm, solid steel
• Weight: +/- 585g (Air) +/- 417g (Coil w/o spring) *varies by size
• Manufacturing: Hand-built and individually dyno tested in Fletcher, NC, USA
• Warranty: 2 Years
