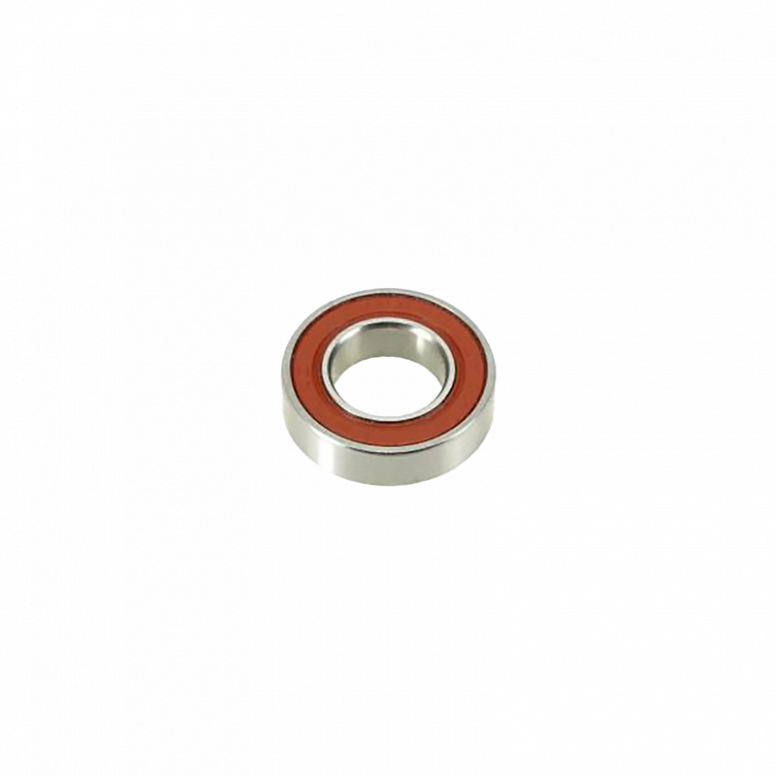

F6801 LLU MAX – ABEC 3 – 12×21/23×5/6

F6801 LLU MAX BO- Flanged, MAX-Design, Black-Oxide treated, ABEC-3, radial suspension bearing – 12mm x 21/23mm x 5mm –

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The flanged design ensures precise insertion into through-holes in swing-arms and suspension linkages.

This bearing has been used as a suspension pivot bearing by a number of bicycle brands.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

• Static load – 286lbf / 1.27kN
• Weight – 5.8g
