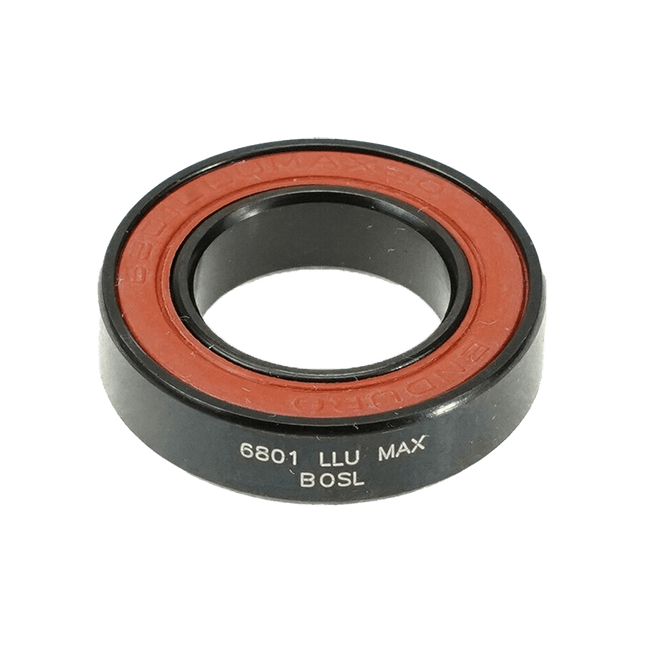

F6801 LLU MAX BO- Flanged, MAX-Design, Black-Oxide treated, ABEC-3, radial suspension bearing - 12mm x 21/23mm x 5mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The flanged design ensures precise insertion into through-holes in swing-arms and suspension linkages.This bearing has been used as a suspension pivot bearing by a number of bicycle brands.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 286lbf / 1.27kN
Weight - 5.8g
MAX bearings are designed specifically for suspension pivots without retainers and 40% more balls than standard ABEC 3 or 5 bearings. This enables them to carry a much higher load and makes them perfect for frame pivots. They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.
Bearing Code: 63801 MAX
Dimensions: 12 x 21 x 7mm
ABEC: 3
Grade: 10
Seals: LLU
Grease: CRC Marine
Application: Suspension Pivots
MAX bearings are designed specifically for suspension pivots without retainers and 40% more balls than standard ABEC 3 or 5 bearings. This enables them to carry a much higher load and makes them perfect for frame pivots. They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.

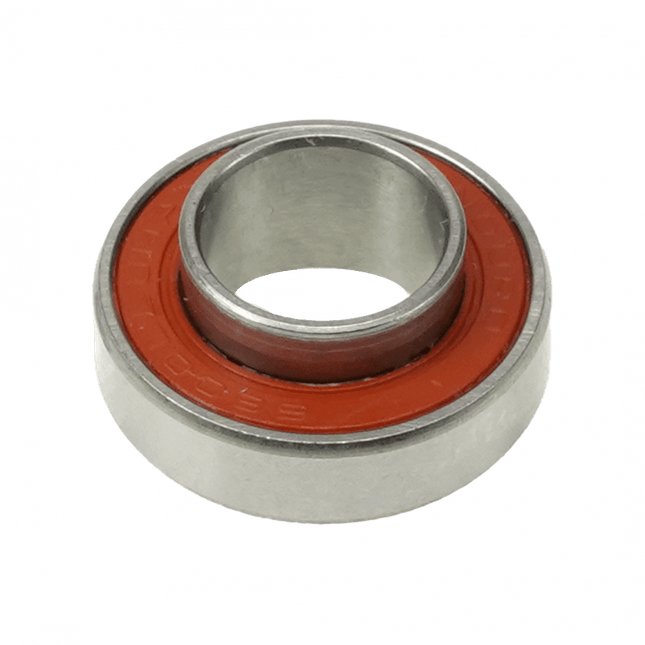

Bearing Code: 6800 MAX-E
Dimensions: 10mm x 19mm x 5mm
ABEC: 3
Grade: 10
Seals: LLU
Grease: CRC Marine
Application: Suspension Pivots
MAX bearings are designed specifically for suspension pivots without retainers and 40% more balls than standard ABEC 3 or 5 bearings. This enables them to carry a much higher load and makes them perfect for frame pivots. They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.

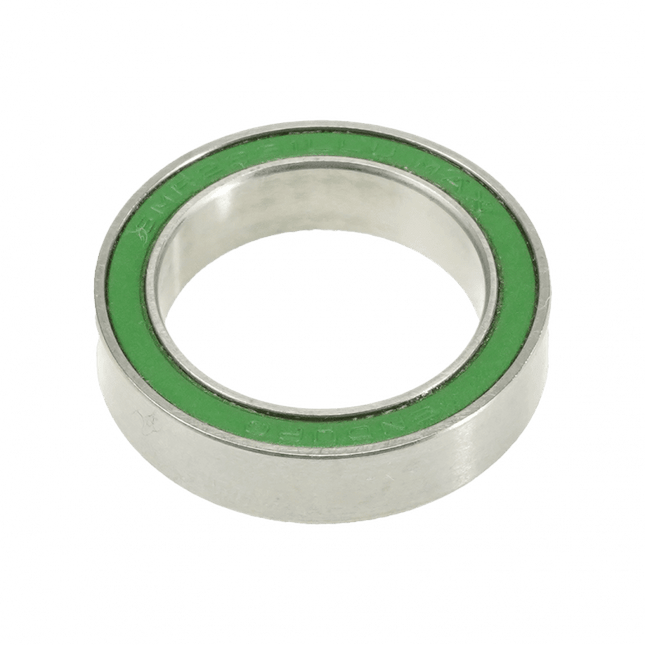

Bearing Code: SMR 2231
Dimensions: 22mm x 31mm x 7mm
ABEC: 5
Grade: 5
Seals: LLU
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
MAX bearings are designed specifically for suspension pivots without retainers and 40% more balls than standard ABEC 3 or 5 bearings. This enables them to carry a much higher load and makes them perfect for frame pivots. They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.

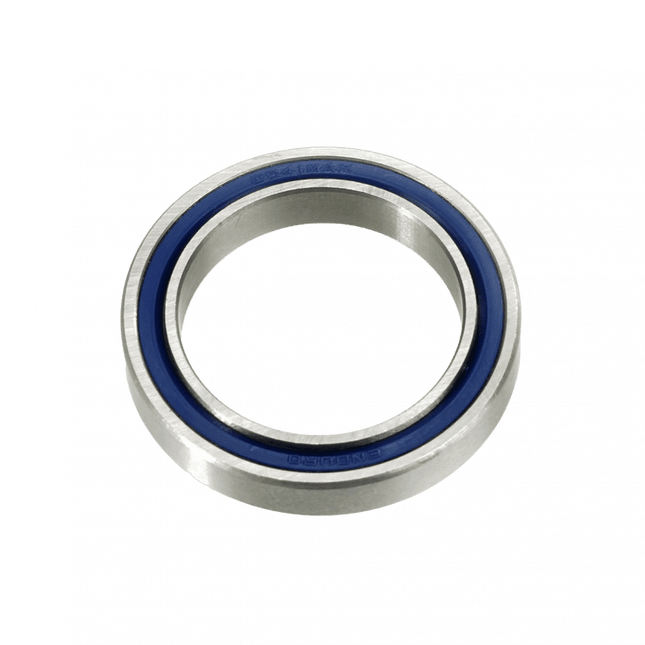

Bearing Code: B541/F
Dimensions:1 1/16 x 1 1/2 x 9/32""
ABEC: 3
Grade: 10
Seals: LLU
Grease: CRC Marine
Application: Suspension Pivots
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.

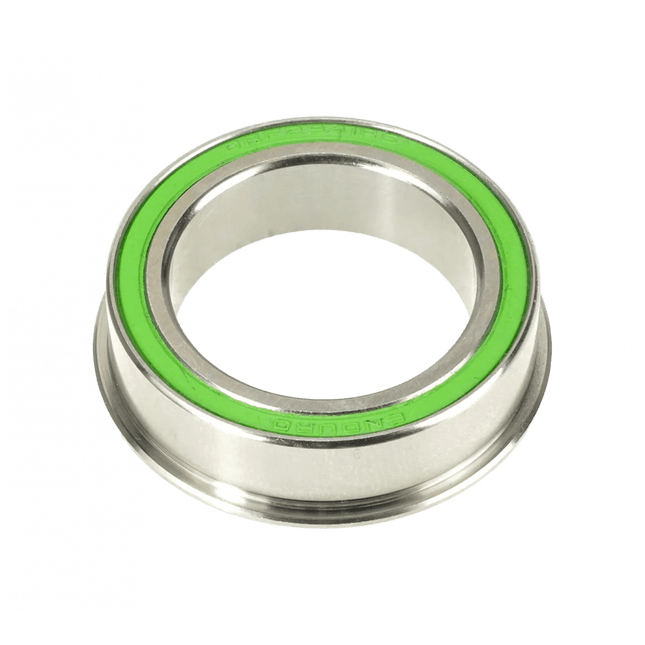

Bearing Code: DRF 2941
Dimensions: 29 x 41 x 11mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 19.24g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.

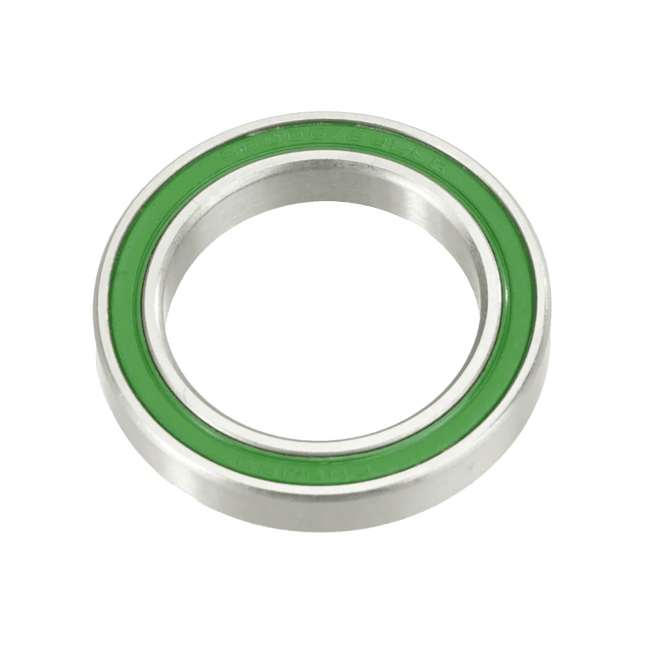

Bearing Code: S6806/29
Dimensions: 29 x 42 x 7mm
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: N/A
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.

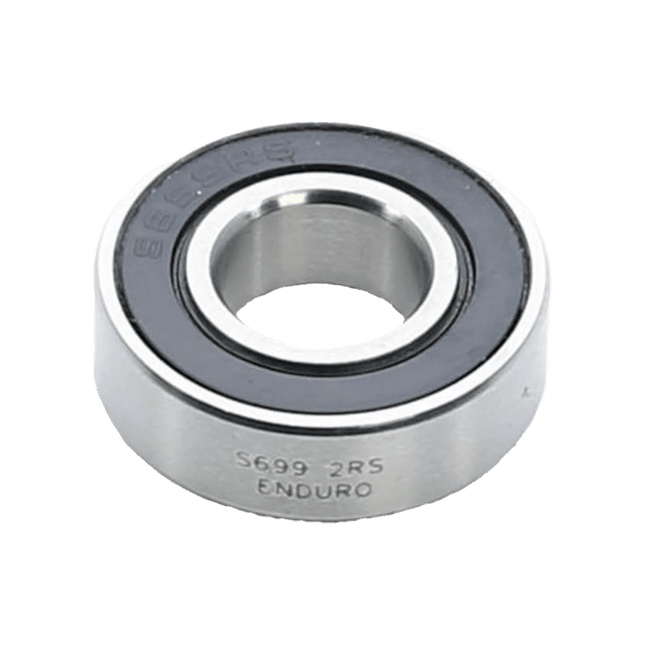

Bearing Code: S699
Dimensions: 9mm x 20mm x 6mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 7.10g
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.

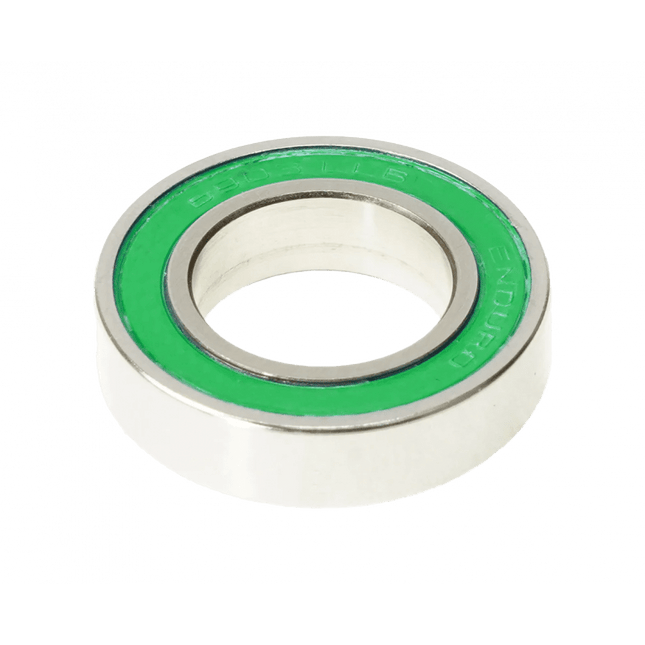

Bearing Code: S6903
Dimensions: 17mm x 30mm x 7mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 17.13g
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.

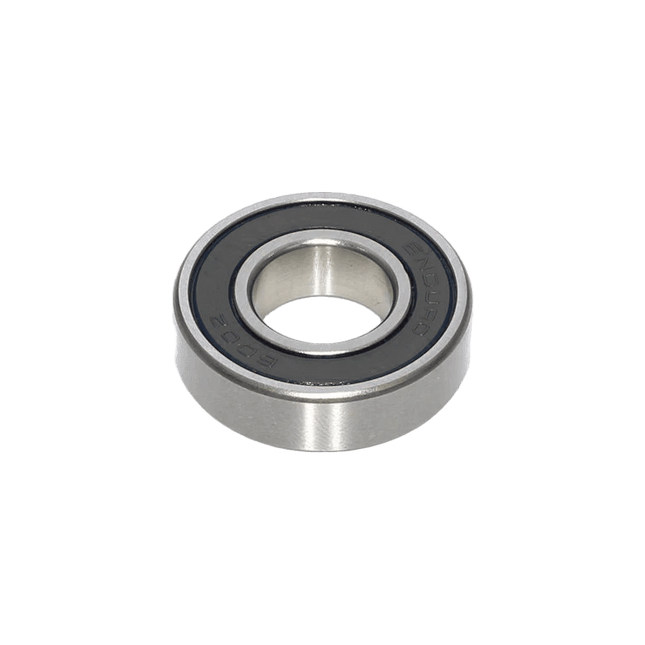

Bearing Code: S6002
Dimensions: 15mm x 32mm x 9mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 29.24g
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.

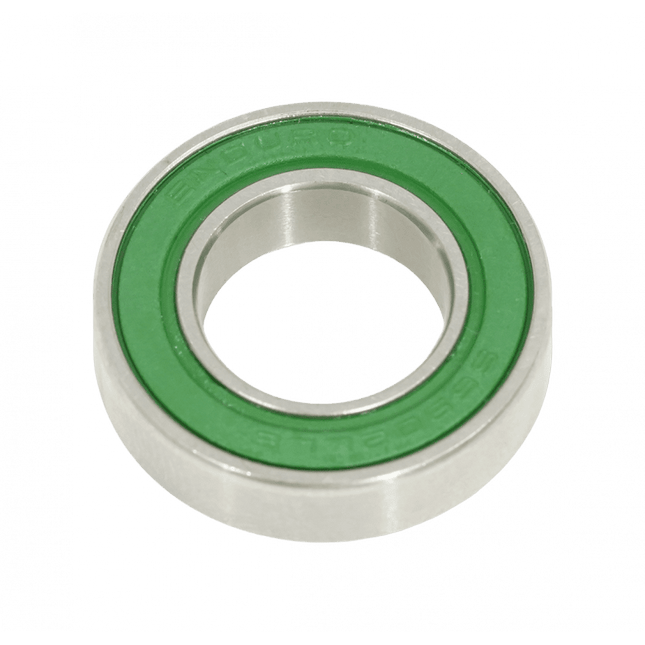

Bearing Code: S6902
Dimensions: 15mm x 28mm x 7mm
ABEC: 3
Grade: 10
Seals: LLU/LLBÂ
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 15.73g
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.

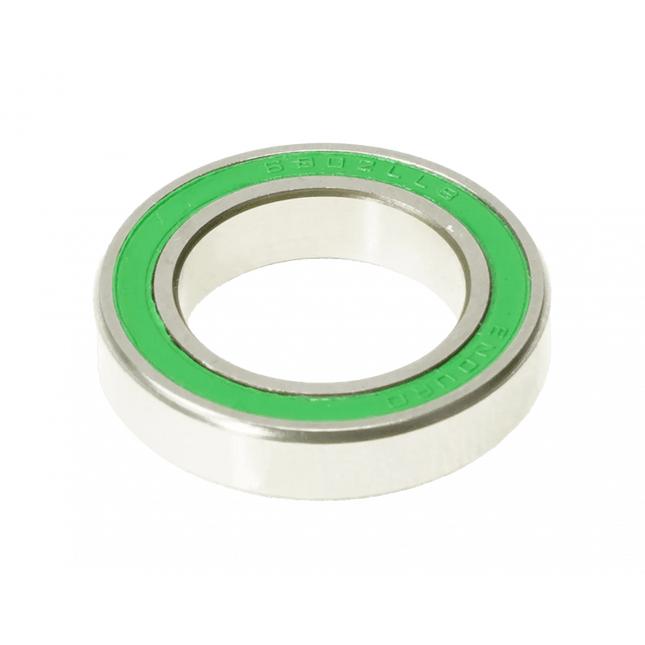

Bearing Code: S6802
Dimensions: 15mm x 24mm x 5mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 6.71g
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.

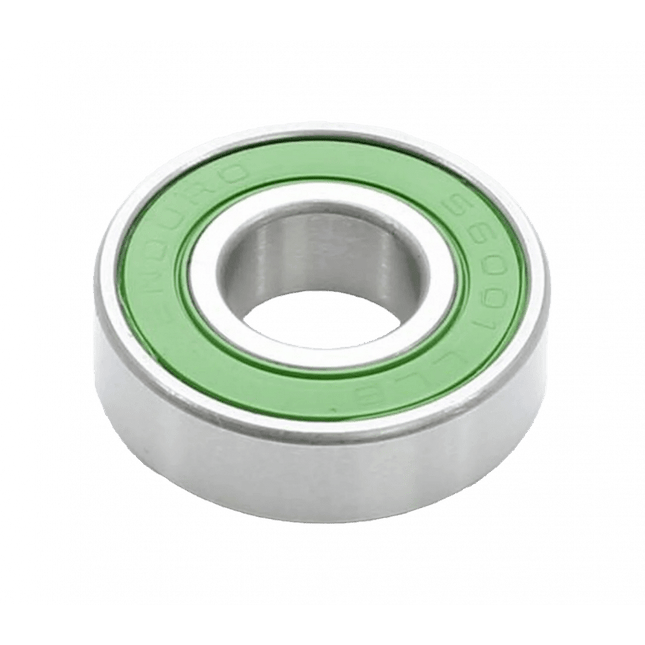

Bearing Code: S6001
Dimensions: 12mm x 28mm x 8mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 19.28g

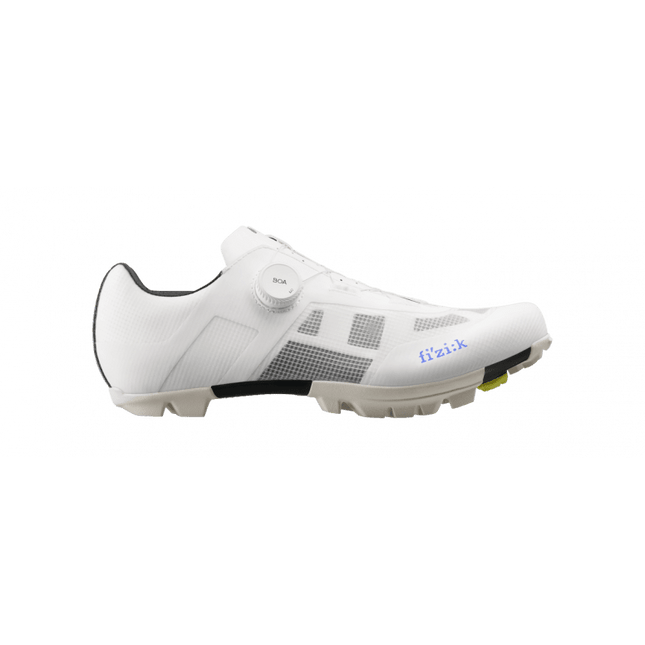

Proxy Wide is an ultra-breathable off-road racing shoe with a wider fit, developed for competitive riders seeking performance features, lasting comfort, and efficient power transfer on unpaved roads.Low weight, high performanceProxy is an off-road shoe with pure racing DNA that recalls our top-tier products. When performance is required on demanding XC tracks or in fast gravel races, this shoe is the solution. Proxy is well ventilated thanks to an innovative translucent PU laminated mesh that makes the shoe both lightweight and comfortable. The upper is durable thanks to its tearproof construction, protecting you from the pitfalls of rowdy riding on rough terrain. More room off roadsDesigned to deliver big performance for riders with wider feet, Proxy Wide features a higher volume fit with more room at the forefoot, for greater comfort around the ball of the foot and metatarsals.Fine-tuned fitThe closure pattern is minimal and supportive, using BOA® textile lace guides that balance tension and further eliminate pressure hot spots. Featuring a single incremental Li2 BOA® Fit System platform, cyclists can fine tune their fit, ensuring maximum performance without compromising on comfort.More power, better gripThe newly redesigned X3 carbon reinforced nylon outsole offers more stiffness for efficient power transfer. The generous rubber tread delivers better grip on the pedals and improved traction for dismounted segments during CX races.Speed that blurs linesOne thing CX, XC, and gravel racing all share is a need for speed—and Proxy is made to move. Whether that’s the explosive responsiveness required to be first off the line in cyclocross competition, the nimble feeling needed to quickly navigate technical cross-country trails, or supportive comfort for fast gravel racing, Proxy’s performance delivers across off-road disciplines. SPECIFICATIONS
PU Laminated mesh upper
Li2 BOA® Dial A Fit SystemÂ
X3 Carbon reinforced nylon outsole - with rubber threadÂ
Stiffness index 8
Weight: 326 g
Sizes: 36-48 (37 to 47 also in half sizes)
VENTO - Performance racing series designed in collaboration with professional cyclists OFF-ROAD - Designed and engineered to perform off-road, from singletrack to gravel roads and everything in between

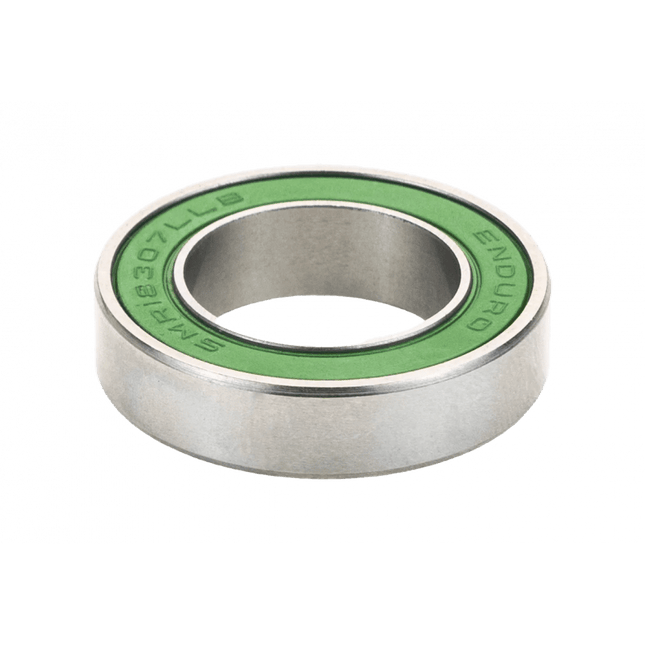

SMR 18307LB - Stainless Steel Radial Bearing (C3 clearance) - 18mm x 30mm x 7mmThis radial bearing features 440C stainless steel alloy races and Grade 10 balls with dual-seals and 90% fill with Mobil XHP 222 high pressure water proof grease to withstand daily abuse of use and the elements.A radial bearing generally used as a hub bearing and can be used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use.Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem.Enduro stainless bearings all carry a full two year anti-corrosion warranty.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 460lbf / 2.05kN
Weight - 13.6g

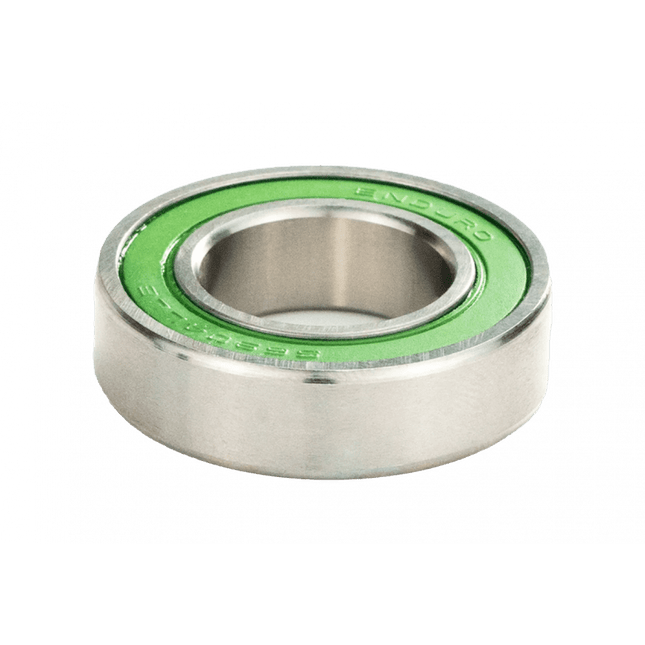

S6904 LLB - Stainless steel radial bearing (C3 clearance) - 20mm x 37mm x 9mmThis radial bearing features 440C stainless steel alloy races and Grade 10 balls with dual-seals and 90% fill with Mobil XHP 222 high pressure water proof grease to withstand daily abuse of use and the elements.A radial bearing generally used as a front hub bearing and can be used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use.Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem.Enduro stainless bearings all carry a full two year anti-corrosion warranty.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 661lbf / 2.94kN
Weight - 37.2g"

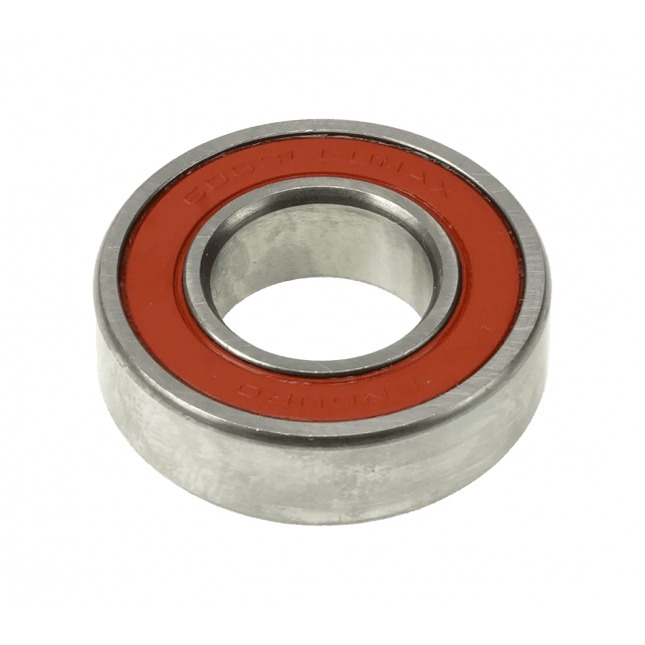

6003 LLU MAX - MAX -Design, ABEC-3 BO, Radial suspension bearing - 17mm x 35mm x 10mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.This bearing has been used as a suspension pivot bearing by a number of bicycle brands.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 1097lbf / 4.88kN
Weight - 39.69g

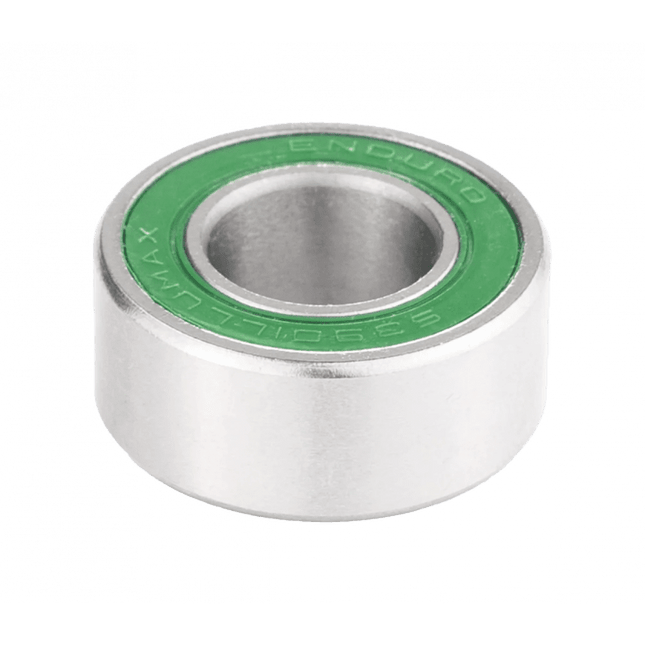

S3901 LLU MAX - Stainless Steel, MAX-Design, Double Row, ABEC-3, Radial Suspension Bearing -12mm x 24mm x 10mm -Enduro Bearings pioneered MAX type bearings 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX bearings provide 35-40% more load capacity than standard radial bearings by employing with a special design where the maximum number of balls (full-complement) are inserted into the bearing, via a custom ground slot in the races. The race grooves are also deeper on these bearings to provide increased lateral support to counteract the twisting and multi-directional forces associated with mountain bike pivots. This 440C Stainless Steel, MAX-type, Double-Row, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area and load bearing capacity over single-row bearings.This bearing is most commonly used as a suspension pivot bearingThe Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 1117bf / 4.97kN
Weight -9.3g

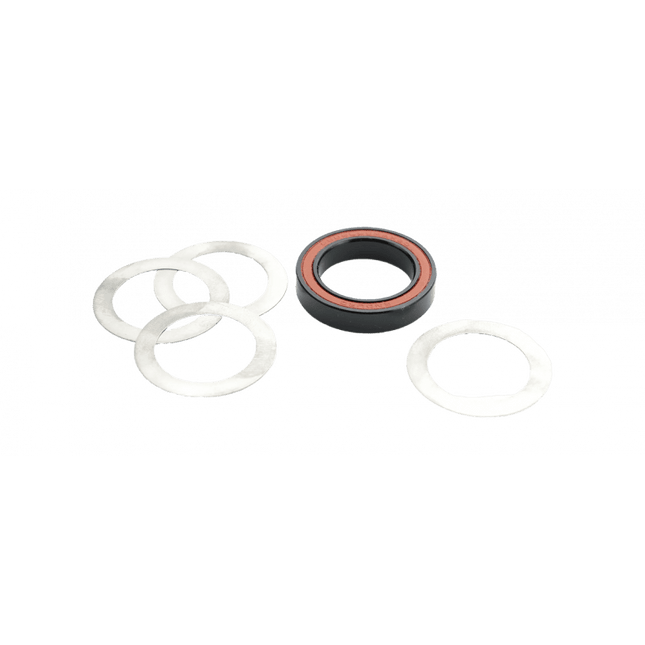

Maxguard, super-thin stainless shims are designed as an extra layer of protection for your suspension bearings. These bearing shields are an excellent upgrade to protect your pivots from water, particularly for those of us who like to keep our bikes clean.Pack of 4.

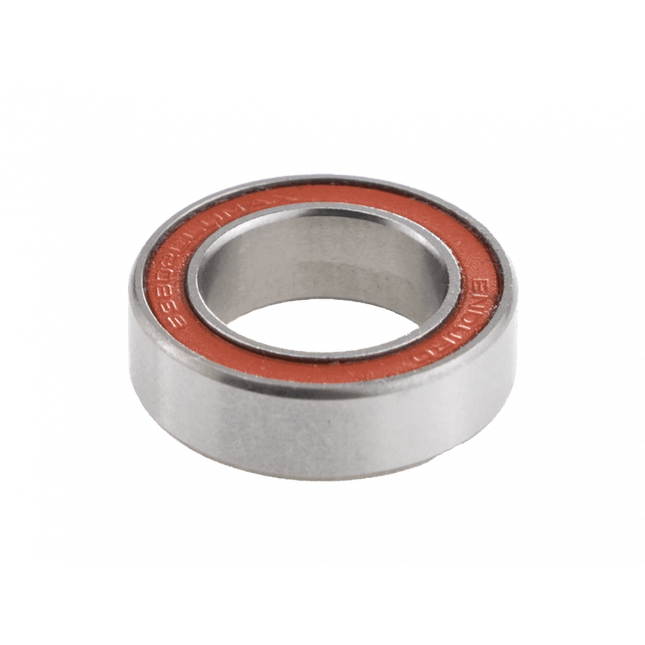

63802 LLU MAX - MAX-Design, Extra-Wide, ABEC-3, radial suspension bearing - 15mm x 24mm x 7mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The extra-wide design greatly reduces flex in the suspension linkage.This bearing is generally used as a suspension pivot bearing.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.
Static load - 897lbf / 3.99kN
Weight - 25.2g
