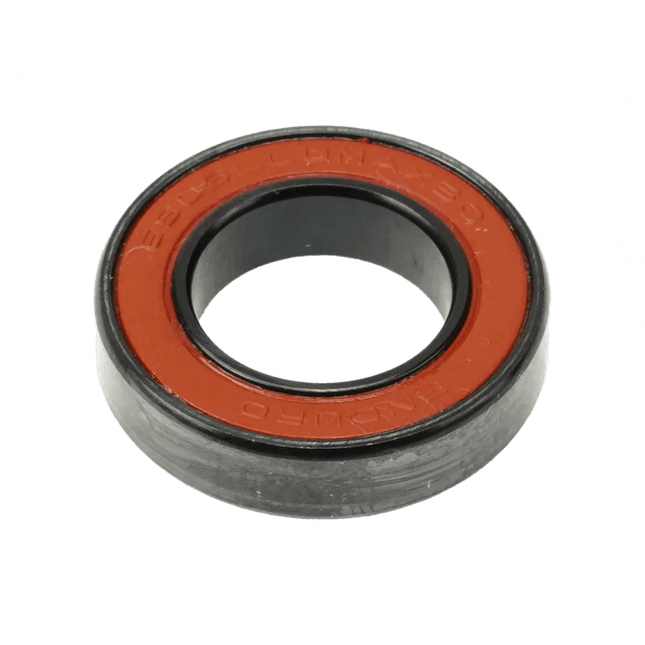

6903 LLU MAX BOSL Solid-Lube, MAX-Design, Black-Oxide, ABEC-3, radial suspension bearing - 17mm x 30mm x 7mm - Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where a full complement of balls (i.e. all balls, no retainer) are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide much greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. MAX Solid-Lube bearings feature a unique solid-lubricant-infused polymer that replaces the grease inside of the bearing, eliminating any space for water or dirt to gather inside of the bearing. After 3 years of successful field testing in the harshest conditions, we can confidently back Enduro MAX Solid Lube, Black-Oxide bearings with a two-year, all-conditions, maintenance-free warranty. Enduro Solid Lubricant fills the entire cavity of a ball bearing leaving almost no room for contaminants or moisture to penetrate and create friction. The foamed polymer is injection molded into the bearing assembly replacing traditional grease or oils. The Solid Lube polymer is composed of two essential parts: a continuous microporous polymer and a proprietary lubricant containing special additives. When the Solid Lube is in contact with the moving balls, the lubricant is transferred from the millions of pores to the ball and race surfaces under the action of temperature and pressure. This creates a uniform and continuous lubrication film between all metal parts, minimizing friction. When the bearing has stopped, the lubricant on the surface is absorbed back into the micropores of the polymer under the action of capillary forces and stored for the next movement. This MAX-type, Black-Oxide, ABEC-3 bearing features Black-Oxide treated, 52100 High-Carbon Chromium alloy races paired with two rows of grade 10 Balls. All Enduro bearings are engineered with deeper grooves to accommodate the largest balls possible, providing maximum bearing contact area and greatly increased bearing life. Designed specifically for bicycle applications, the LLU full contact seals used in these bearings utilize a dual-lip labyrinth design to provide maximum protection from the elements. The Black-Oxide/Magnetite coating provides an extra level of corrosion resistance, as well as an additional level of material normalization, for extended worry-free performance against wear and the elements. This size bearing has been used as a suspension pivot bearing by a number of bicycle brands. This bearing is also commonly identified in the industry by these part numbers: W272452 300020001 The Enduro line of MAX suspension bearings is available in high-carbon chromium steel, black-oxide-treated chromium steel, and 440C stainless steel. All Enduro bearings are always engineered and manufactured for maximum life. Static load - 763lbf / 3.39kN Weight - 17.59g - Â

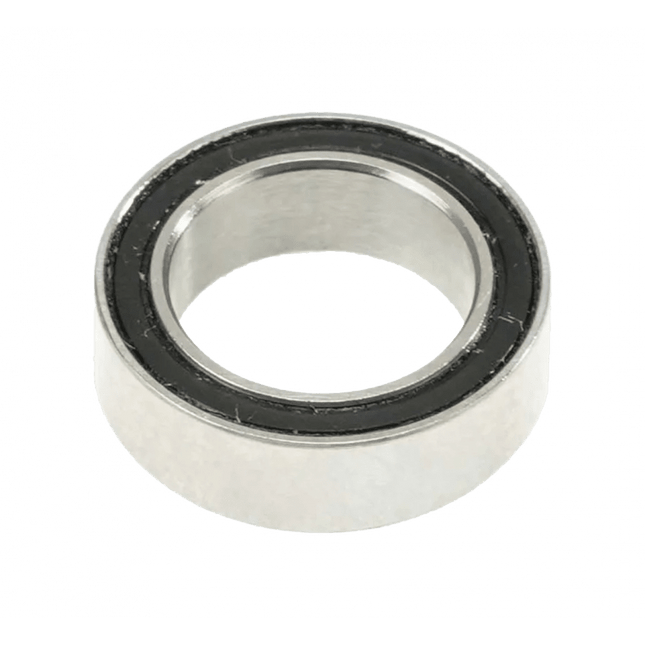

MR 126 2RS - ABEC-3 Radial Bearing (C3 clearance) - 6mm x 12mm x 4mm -This ABEC-3 radial bearing features 52100 High-Carbon Chromium alloy races paired with Grade 10 balls and dual seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 28lbf / 0.12kN
Weight - 1g

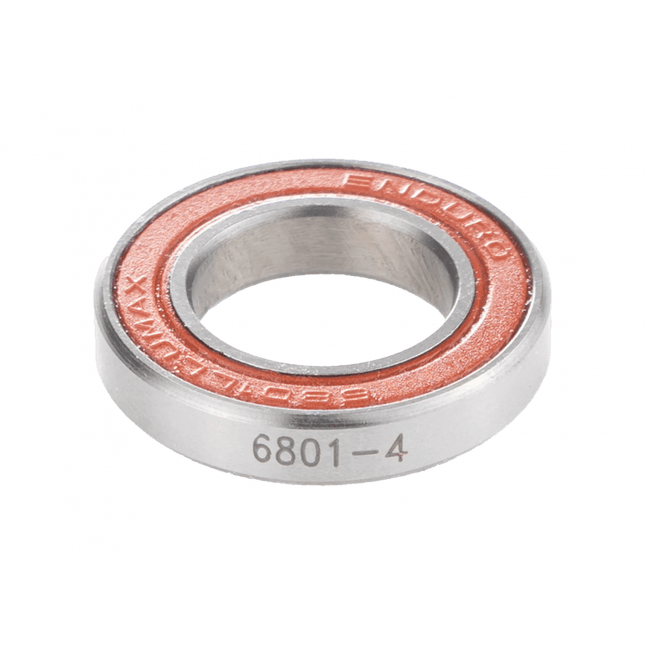

6801 LLU MAX-4 - Narrow, MAX-Design, ABEC-3, radial suspension bearing - 12mm x 21mm xmm -Â Â Enduro Bearings pioneered MAX type bearings almost 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing

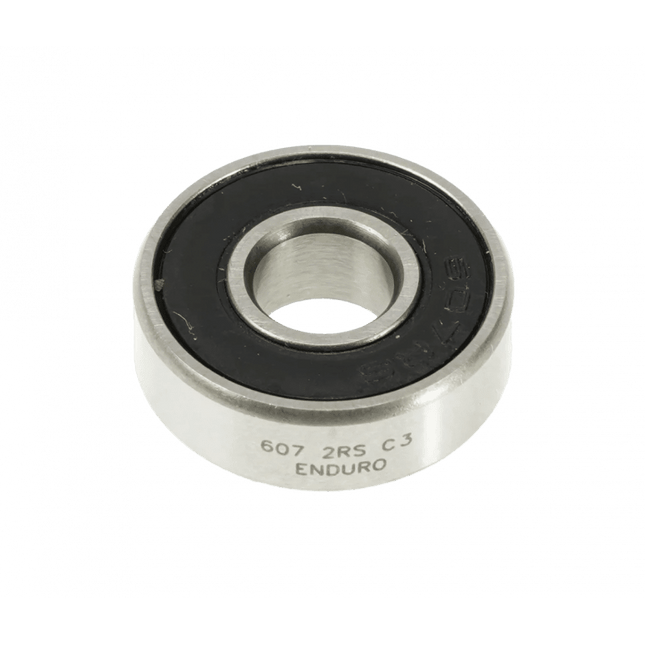

607 LLB - ABEC-3 radial Bearing (C3 clearance) - 7mm x 19mm x 6mm -Not a particularly popular bearing, this radial bearing has been used primarily as a pedal bearing. This ABEC-3 radial bearing features 52100 High-Carbon Chromium alloy races paired with Grade 10 balls and full-contact, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 286lbf / 1.27kN
Weight - 7.4g

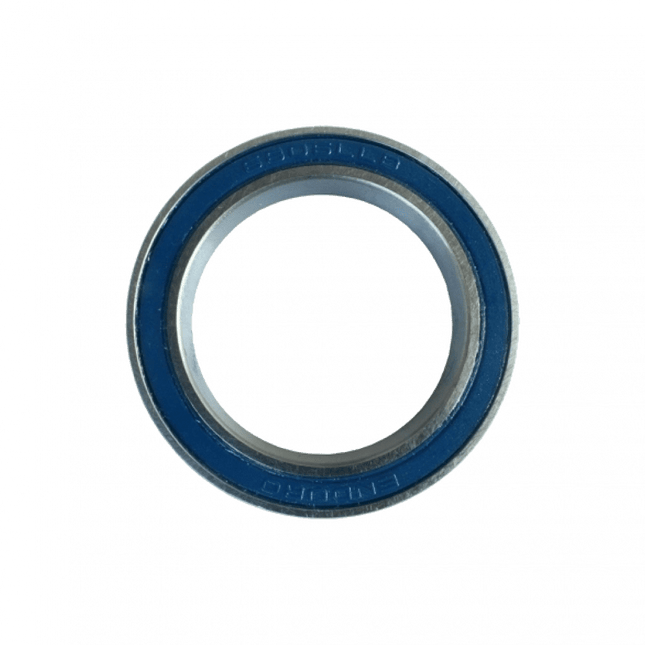

6806/28 LLB-E - Extended Race, ABEC-3 Radial Bearing (C3 Clearance) - 29mm x 42mm x 7/8mmExtended Race, ABEC-3 Radial Bottom Bracket Bearing featuring 52100 High-Carbon Chromium alloy races paired with grade 10 Balls with 90% fill, high-pressure, water-proof grease.The most common use for this bearing is as a direct replacement bearing for the non-drive side beaing on Praxis M30 cranksets.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 854lbf / 3.8kN
Weight - 24.7g

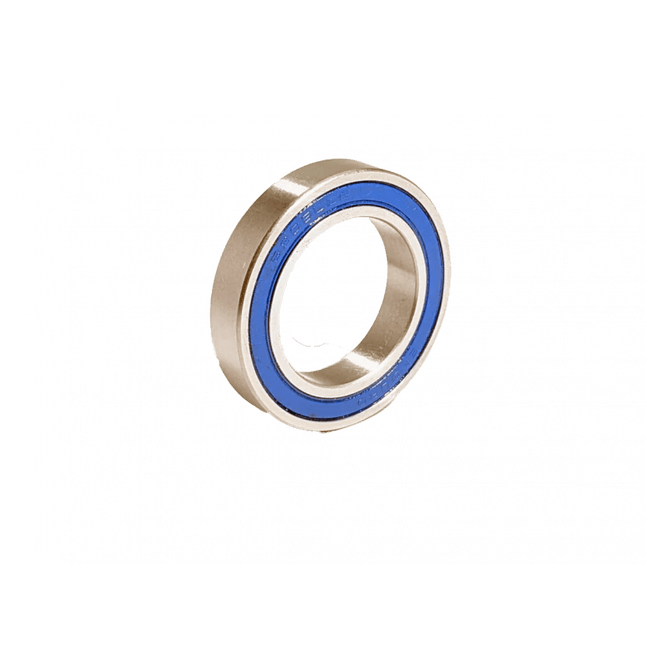

6906 LLB - ABEC-3 Radial Bearing (C3 Clearance) - 30mm x 47mm x 9mm -A radial bearing generally used as a heavy-duty 30mm BB bearing by White Industries. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, LLB seals and 90% fill with high pressure water proof grease to withstand daily abuse of use and the elements.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 813lbf / 3.61kN
Weight - 42.6g

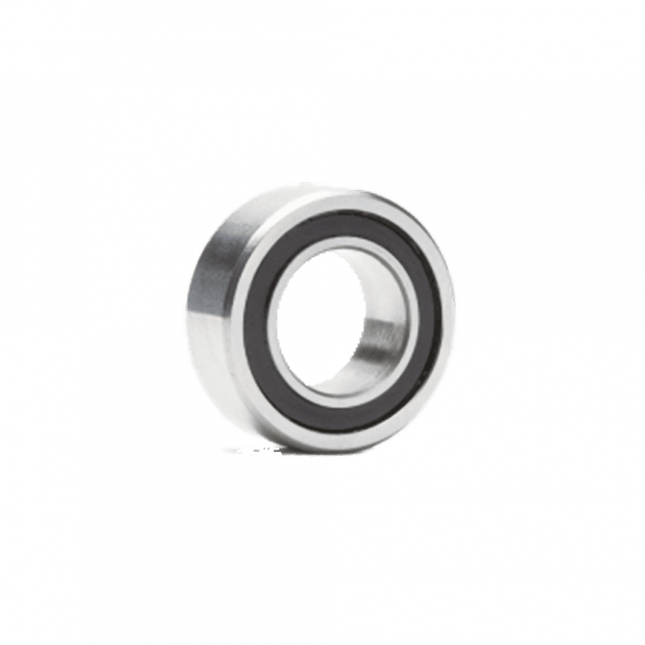

MR 116 2RS - ABEC-3 Radial Bearing (C3 clearance) - 6mm x 11mm x 4mm -This tiny radial bearing has generally been used as a pedal bearing. This ABEC-3 radial bearing features 52100 high-Carbon Chromium alloy races paired with Grade 10 balls and dual seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 23lbf / 0.10kN
Weight - 0.8g

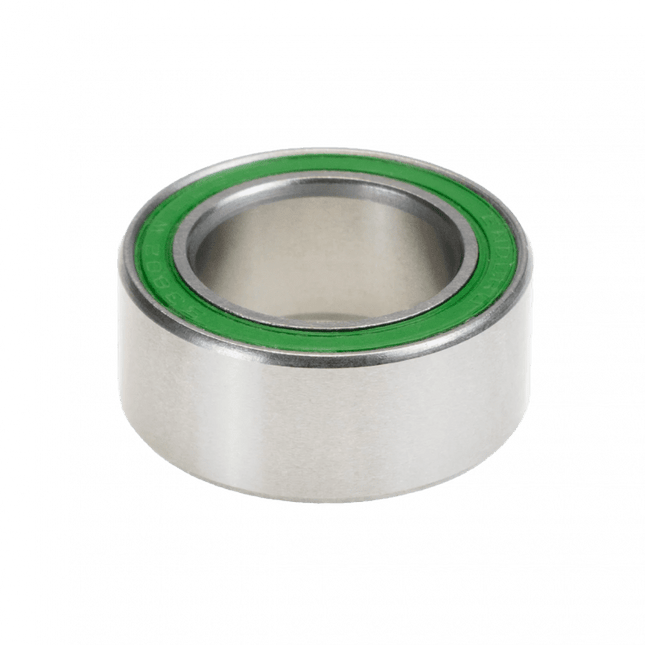

S3802 LLB W - ABEC-3, Double-Row, Radial Bearing (C3 Clearance) -¨15mm x 24mm x 10mmExtra-Wide, Double-Row, ABEC-3, Radial Bearing with 52100 High-Carbon Chromium alloy races paired with grade 10 Balls. This bearing is used primarily by White Industries in their rear hubs. The extra-wide double-row design greatly reduces flex in the axle of the rear hub, while precisely filling the same space as two 6802 single-row bearings. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, LLB seals and 90% fill with high pressure water proof grease to withstand daily abuse of use and the elements.The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.
Static load - 452lbf / 2.01kN
Weight - 10.5g
6904 LLU MAX - MAX-Design, ABEC-3, radial suspension bearing - 20mm x 37mm x 9mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.This bearing has commonly been used as a suspension pivot bearing by Forbidden Bicycles.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deep groove raceso accommodate the largest balls possible. All of our standard bearings featureual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.Static load - 1356lbf / 6.03kNWeight - 42g

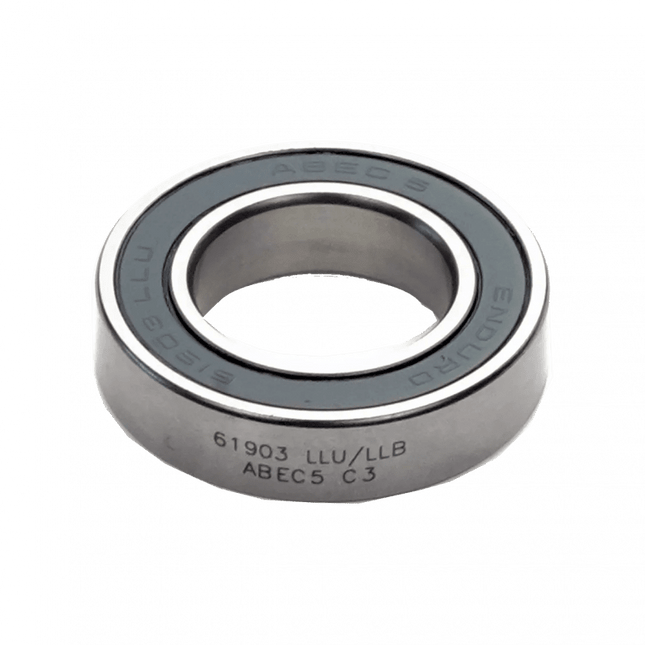

61903 LLB C3- ABEC-5 Radial Bearing (C3 clearance) - 17mm x 30mm x 7mm -A radial bearing generally used as a hub bearing and can be used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use. This ABEC-5 bearing features deep-groove design races, with Grade 10 balls, dual-lip, full-contact LLU seals facing outwards to withstand daily abuse of use and the elements, and lighter-contact LLB seals facing inwards to contain the 90% fill with high pressure water proof grease. C3 clearance specification is best for tighter press-fit bearing bores.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.Static load - 308lbf / 1.37kNWeight - 15.86g

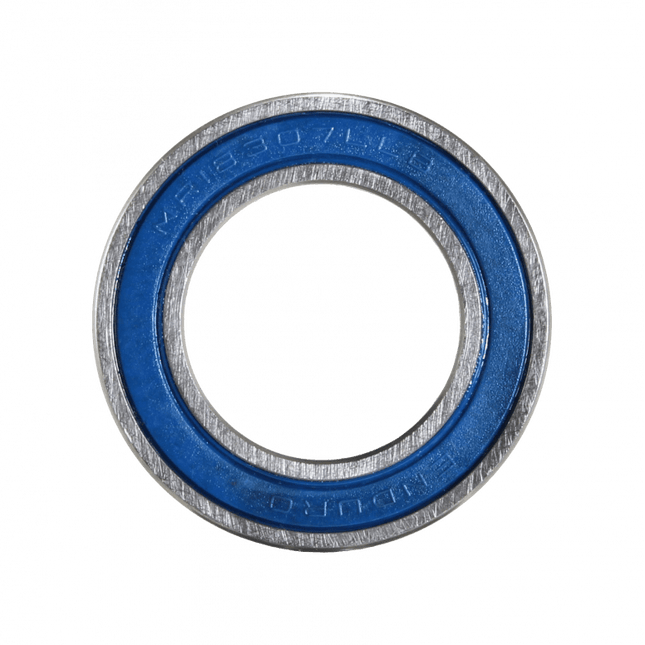

MR 18287 LLB - ABEC-3, Radial Bearing (C3 Clearance) - 18mm x 28mm x 7mmThis ABEC-5 bearing features deep-groove design races, with Grade 10 balls, dual-lip, labyrinth, LLB seals to withstand daily abuse of use and the elements and contain the 90% fill Mobil XHP 222 high-pressure water-proof synthetic grease.  Radial bearing generally used as a hub bearing, and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use.The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.
Static Load: 438 lbf, 1.94 Kn
Weight - 15.1g

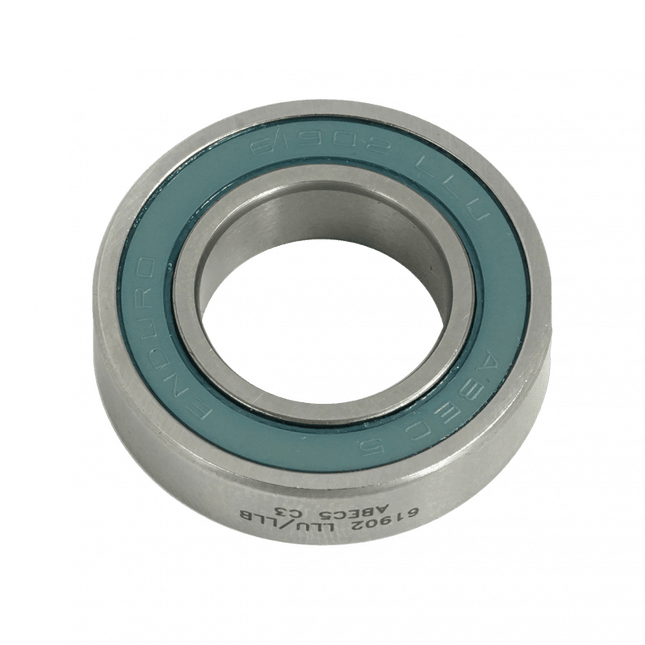

61902 LLU/LLB A5 - ABEC-5 Radial Bearing (CN Clearance) - 15mm x 28mm x 7mmEnduro ABEC-5 radial bearings feature 52100 High-Carbon Chromium alloy races paired with grade 10 Balls. Enduro engineers all of our radial bearings with deeper grooves to accommodate the largest balls possible, providing maximum bearing contact area and greatly increased bearing life. Designed specifically bicycle applications, the LLU/LLB seal combination on these bearings utilizes a more protective LLU seal facing outward, towards the elements, to reduce contamination from water or dirt, while the lighter-contact (less seal-drag) LLB seals facing inward keep the 90% fill Mobil XHP 222 high pressure grease where it belongs.This size bearing is generally used as a hub bearing and can be used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use.The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.
Static Load: 563 lbf, 2.5 Kn
Weight: 27.4g

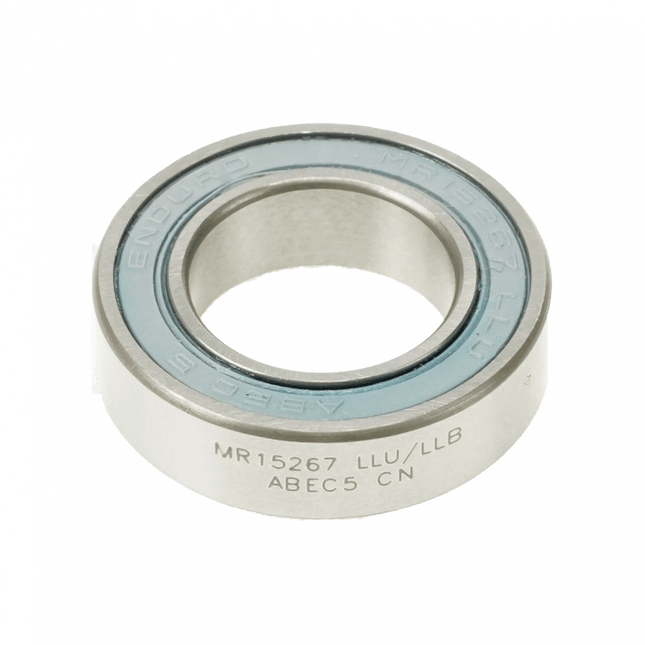

MR 15267 LLU/LLB A5 CN - ABEC-5 Radial Bearing (CN Clearance) - 15mm x 26mm x 7mmRadial bearing generally used as a hub bearing and can be used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use. This ABEC-5 bearing features deep-groove design races, with Grade 10 balls, dual-lip, full-contact LLU seals facing outwards to withstand daily abuse of use and the elements, and to contain 90% fill with Mobil XHP 22 high-pressure water-proof grease. The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.
Static Load: 390 lbf, 1.73 Kn
Weight: 11.2g
Radial Bottom Bracket Bearing featuring 52100 High-Carbon Chromium alloy races paired with grade 5 Balls with 90% fill, high-pressure, water-proof grease. Designed specifically bicycle applications, the LLU/LLB seal combination on these bearings utilizes a more protective LLU seal facing outward, towards the elements, to reduce contamination from water or dirt, while the lighter-contact (less seal-drag) LLB seal face inward to keep the grease where it belongs.The most common use for this bearing is as a direct replacement bearing for Shimano external cup BBs when using the plastic Shimano bearing insert. If you wish to avoid using the plastic insert MR 2437 is the correct bearing for the job.

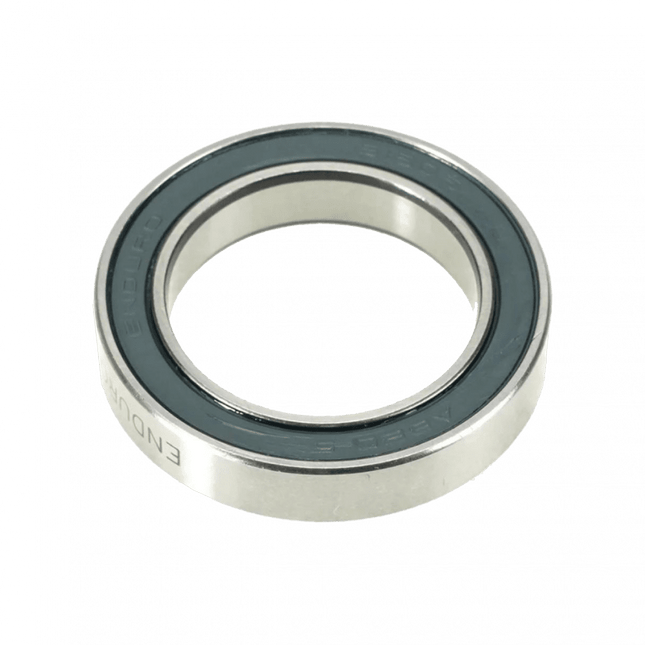

Bearing Code: 6805 (61805)
Dimensions: 25mm x 37mm x 7mm
ABEC: 5
Grade: 5
Seals: llu/LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 20.37g
Enduro's ABEC 5 is the next performance step up from the popular ABEC 3 range. By using military level, high precision HRC-64 hardened Grade 5 Chromium Steel Balls, and 52100 High-Carbon Chromium-Alloy mirror polished races. This combination allows Enduro's ABEC 5 bearings to use tolerances twice as tight as ABEC 3, and operate without any noise. The Graphite/Nylon ball retainers allow virtually frictionless movement and provide constant lubrication to maximise the life of the bearing.

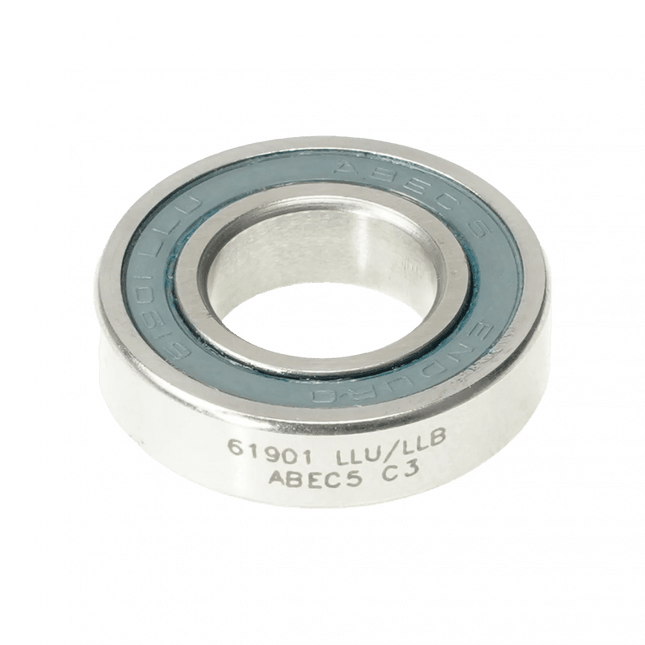

Bearing Code: 61901
Dimensions: 12mm x 24mm x 6mm
ABEC: 5
Grade: 5
Seals: LLU/LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Enduro's ABEC 5 is the next performance step up from the popular ABEC 3 range. By using military level, high precision HRC-64 hardened Grade 5 Chromium Steel Balls, and 52100 High-Carbon Chromium-Alloy mirror polished races. This combination allows Enduro's ABEC 5 bearings to use tolerances twice as tight as ABEC 3, and operate without any noise. The Graphite/Nylon ball retainers allow virtually frictionless movement and provide constant lubrication to maximise the life of the bearing.

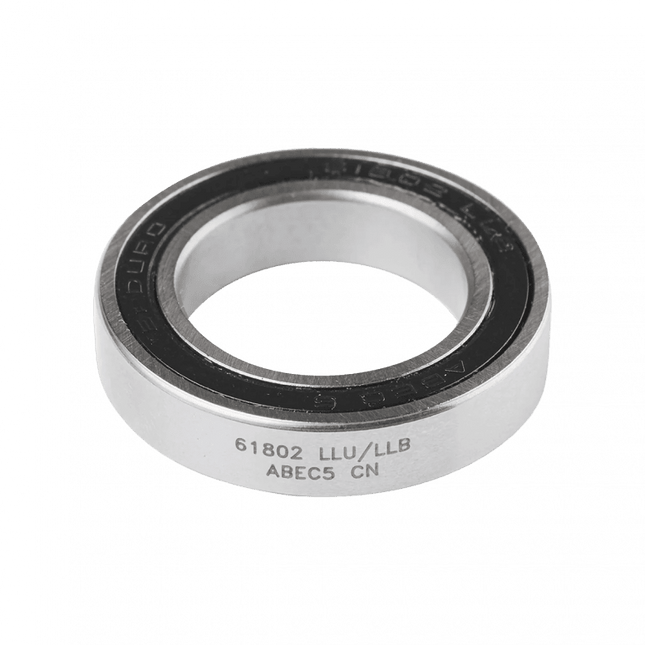

Bearing Code: 61802
Dimensions: 15mm x 24mm x 5mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.

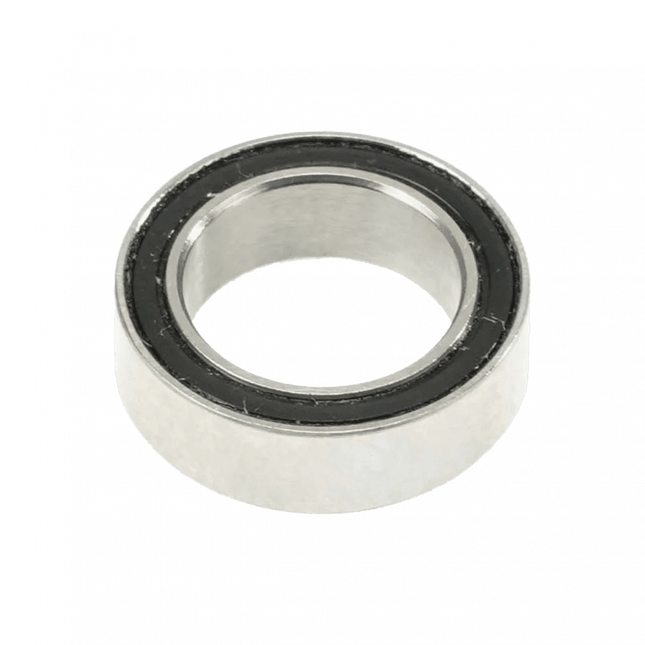

Bearing Code: MR 128
Dimensions: 8 x 12 x 3,5mm
ABEC: 3Â
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.

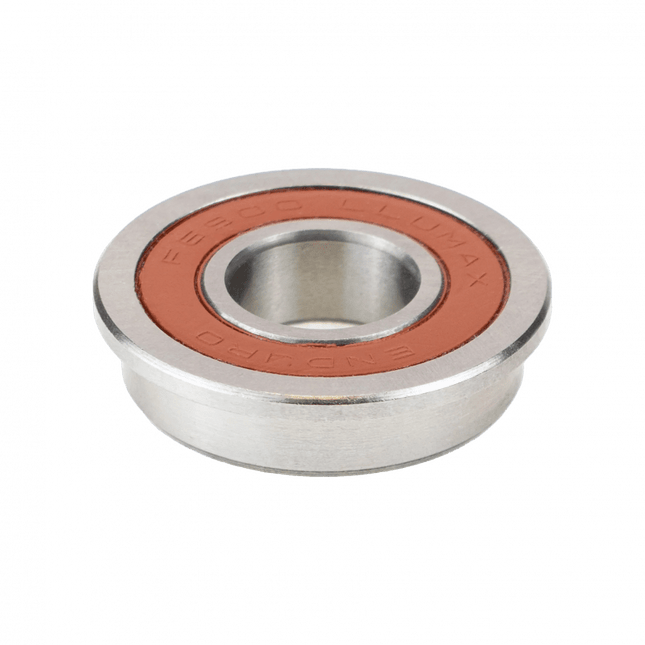

Bearing Code: F6900
Dimensions: 10x22/25x6mm
ABEC: 3Â
Grade: 10
Seals: LLU
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.

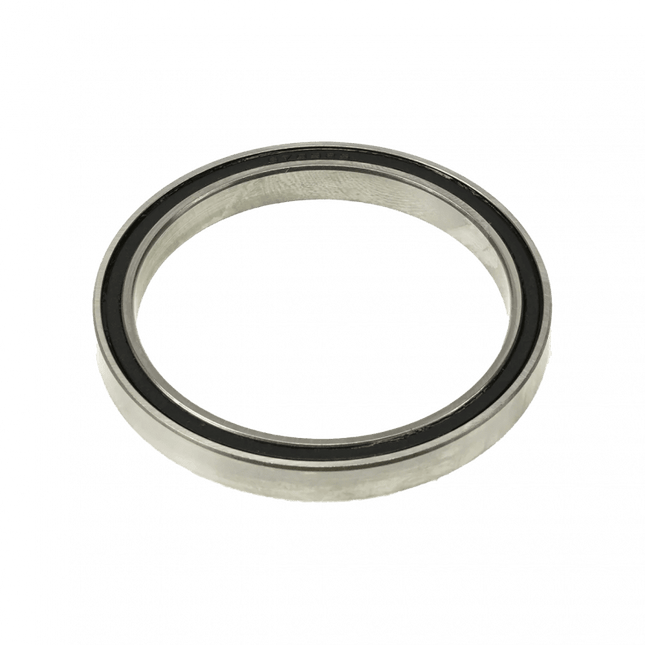

Bearing Code: 6709
Dimensions: 40 x 55 x 6mm
ABEC: 3Â
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.

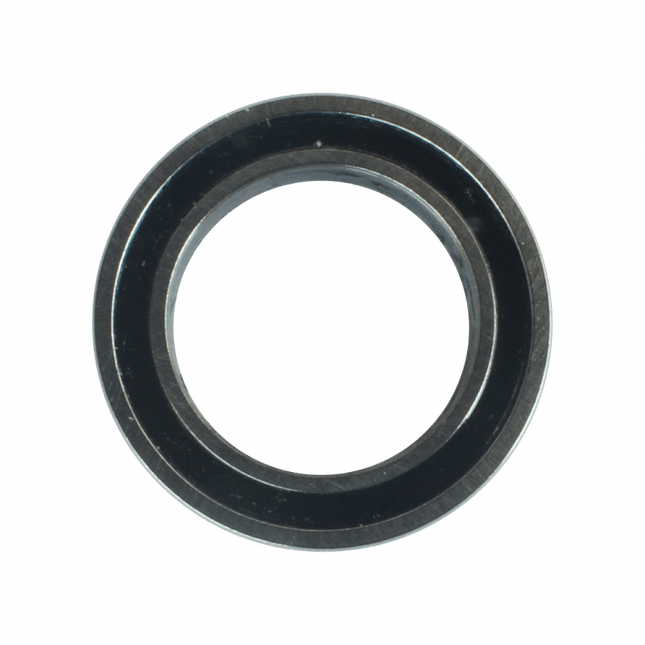

Bearing Code: 1212
Dimensions: 1/2 x 3/4 x 5/32"
ABEC: 3Â
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 3.07g
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.

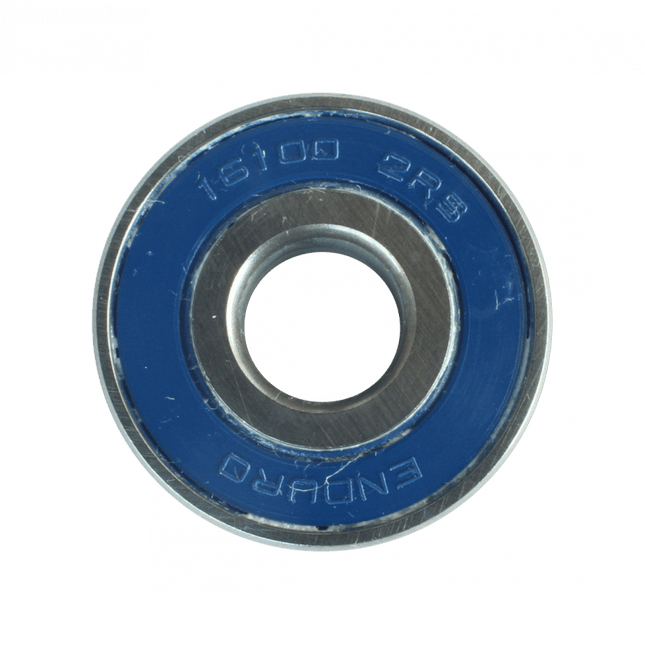

Bearing Code: 16100
Dimensions: 10 x 28 x 8mm
ABEC: 3Â
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 21.27g
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.

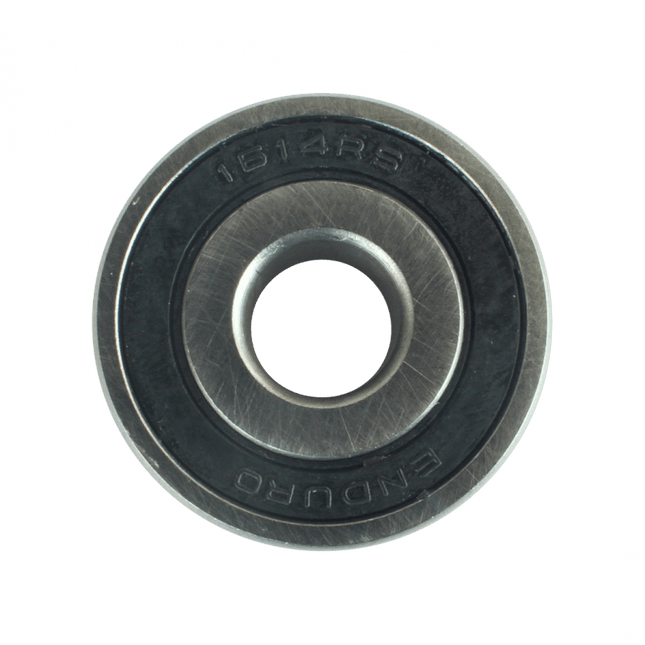

Bearing Code: 1614
Dimensions: 3/8 x 1"1/8 x 3/8"
ABEC: 3Â
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 28.67g
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.
Bearing Code: 1614
Dimensions: 1/2" x 1"1/8 x 3/8"
ABEC: 3Â
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.

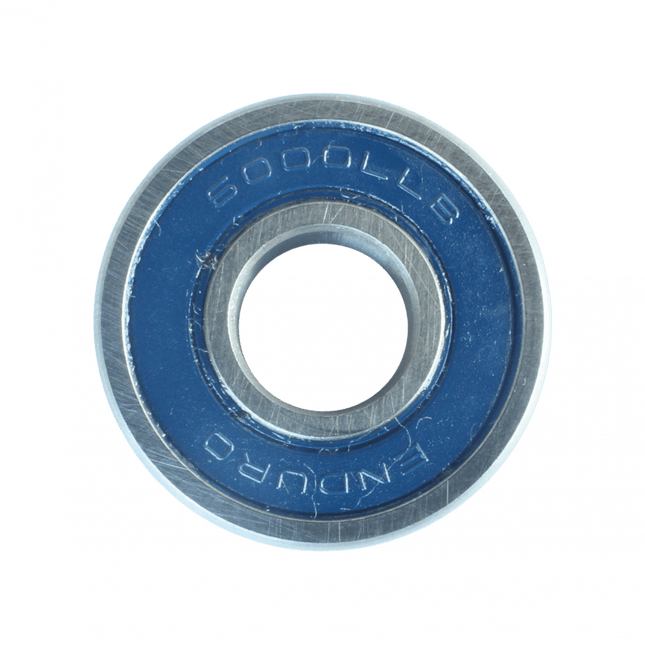

Bearing Code: 6000
Dimensions: 10 x 26 x 8mm
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 18.66g
