Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6804
Dimensions: 20mm x 32mm x 7mm
ABEC: 3
Grade: 10
Seals: LLB
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 17.20g
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6005
Dimensions: 24mm x 47mm x 12mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 78.70g
3800 LLU MAX - MAX-Design, Double Row, ABEC-3, radial suspension bearing - 10mm x 19mm x 8mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The extra-wide double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area.This bearing has been used as a suspension pivot bearing by Trek bicycles.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.
Static load - 679lbf / 3.02kN
Weight - 9.31g
3001 LLU MAX BO - Black-Oxide Coated, MAX Design, ABEC-3, Double-Row, Radial Bearing (C3 Clearance) 11mm x 26mm x 12mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This MAX-type, Double-Row, Black-Oxide, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area and the black-oxide coating provides an extra level of corrosion resistance and extended worry-free performance.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 1100lbf / 4.88kN
Weight - 32.5g
6000 LLU MAX - MAX-Design, ABEC-3, radial suspension bearing - 10mm x 26mm x 8mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.This bearing has been used as a suspension pivot bearing by a number of bicycle brands.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 697lbf / 3.1kN
Weight - 19.28g
688 LLU MAX EE- Max-Type, Double Extended Race, ABEC-3 radial suspension bearing - 8mm x 16mm x 5/7mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside and Black-Oxide/Magnetite coating to provide an extra level of corrosion resistance and extended worry-free performance.This bearing has been used as a suspension pivot bearing by Knolly bikes. The extended race helps simplify linkage installation by eliminating the need for additional spacers.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.Static load - 210lbf / 0.93kNÂ Weight - 3.9g
7002 LLU MAX - MAX-Design, Angular Contact, ABEC-3, Radial Suspension Bearing -15mm x 32mm x 9mmEnduro Bearings pioneered MAX type bearings almost 20 years ago for bicycles to address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. We accomplish this with a special design where the maximum number of balls are inserted into the bearing. The race grooves are deeper on these bearings for more lateral support for the twisting and multiple forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard Extra High Pressure Grease inside. This bearing has been used as a suspension pivot bearing by a number of bicycle brands. The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.
F6800 LLU MAX BO - Flanged, MAX-Design, Black-Oxide, ABEC-3, radial suspension bearing - 10mm x 19/21mm x 5mm -Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX bearings provide 35-40% more load capacity than standard radial bearings by employing with a special design where the maximum number of balls (full-complement) are inserted into the bearing, via a custom ground slot in the races. The race grooves are also deeper on these bearings to provide increased lateral support to counteract the twisting and multi-directional forces associated with mountain bike pivots. This MAX-type, Black-Oxide, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside and Black-Oxide/Magnetite coating provides an extra level of corrosion resistance and extended worry-free performance.This bearing has been used as a suspension pivot bearing by a number of bicycle brands including Trek.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 260lbf / 1.15kN
Weight - 5.06g
S6801 LLU MAX - Stainless Steel, MAX-Design, ABEC-3, radial suspension bearing - 12mm x 21mm 5mmEnduro Bearings pioneered MAX type bearings almost 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that maybe less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatments to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem.Enduro stainless bearings all carry a full two year anti-corrosion warranty.This bearing has been used as a suspension pivot bearing by a number of bicycle brands including Intense and Guerrilla Gravity.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 254lbf / 1.13kN
Weight - 10.4g
S6803 LLU MAX - Stainless Steel, MAX-Design, ABEC-3, radial suspension bearing - 15mm x 28mm 7mm -Â Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem.Enduro stainless bearings all carry a full two year anti-corrosion warranty.This bearing has been used as a suspension pivot bearing by a number of bicycle brands including Orbea and Niner.Enduro bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 556lbf / 2.47kN
Weight - 17g
MAX bearings are designed without retainers and 40% more balls than standard ABEC 3 or 5 bearings. This enables them to carry a much higher load and makes them perfect for frame pivots. They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.
Bearing Code: 3802 LLU
Dimensions: 15 x 24 x 7/10
ABEC: 3Â
Grade: 10
Seals: LLU
Grease: CRC Marine
Application: Frame Pivots
Weight: 17.50g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: SMRA 2437
Dimensions: 24 x 37 x 7mm
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Bottom Brackets
Weight: 31g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: SMR 17287
Dimensions: 17 x 28 x 7mm
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Bottom Brackets
Weight: 13.60g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: SMR 15267
Dimensions: 15 x 26 x 7mm
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Bottom Brackets
Weight: 11.20g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: SMR 9227
Dimensions: 9 x 22 x 7mm
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Bottom Brackets
Weight: 11.20g
Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: DRF3041
Dimensions: 30 x 41 x 11mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 35.60g

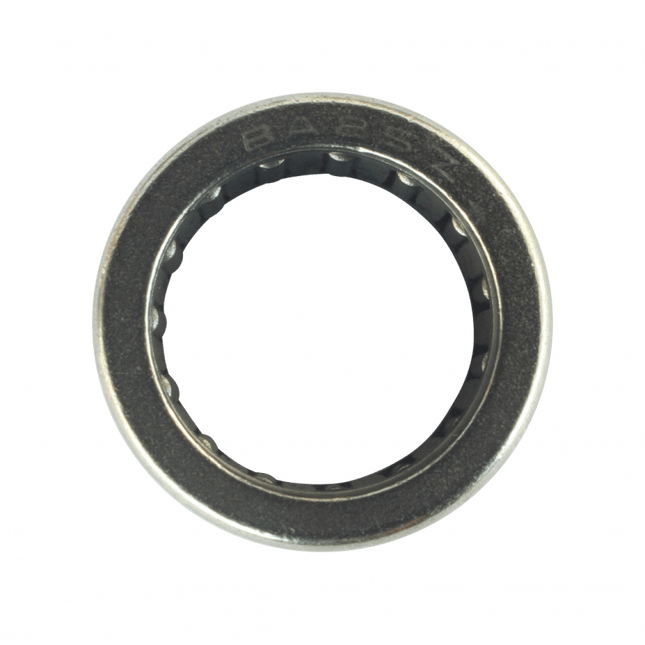

The entry standard for Enduro bearings. Enduro’s ABEC 3 bearings offer improved quality and performance over ABEC 1 bearings fitted by many OE manufacturers. Only the finest cycling components come standard with Enduro’s ABEC 3 bearings. With hardened chromium steel races, balls, and tough riveted steel retainers, these bearings are durable and the perfect low cost performance upgrade.
Bearing Code: BA 85 Z
Dimensions: 1/2 x 11/16 x 5/16"
Application: Frame Pivot, Pedals
Weight: 4.39g

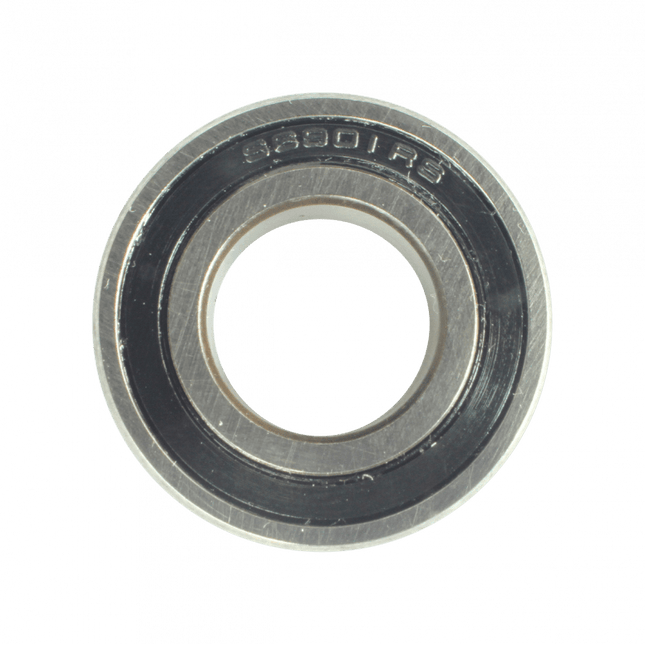

Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6901
Dimensions: 12mm x 24mm x 6mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 10.41g

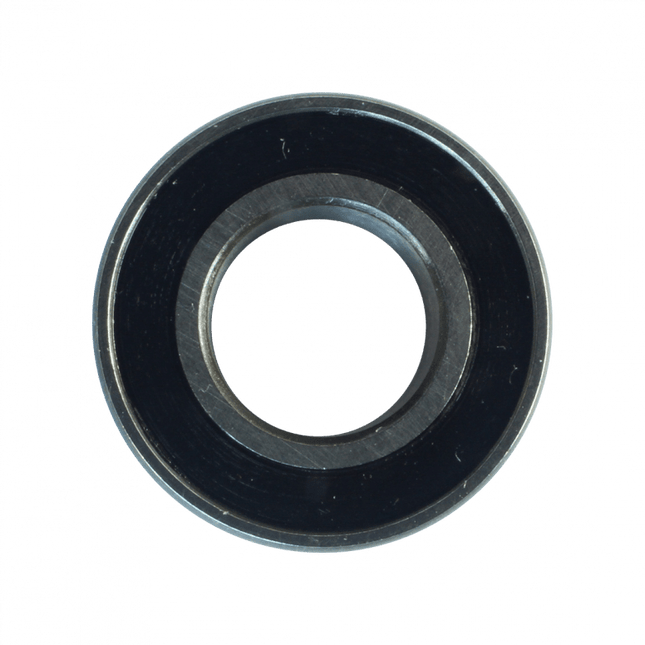

Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S688
Dimensions: 8mm x 16mm x 5mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 3.70g

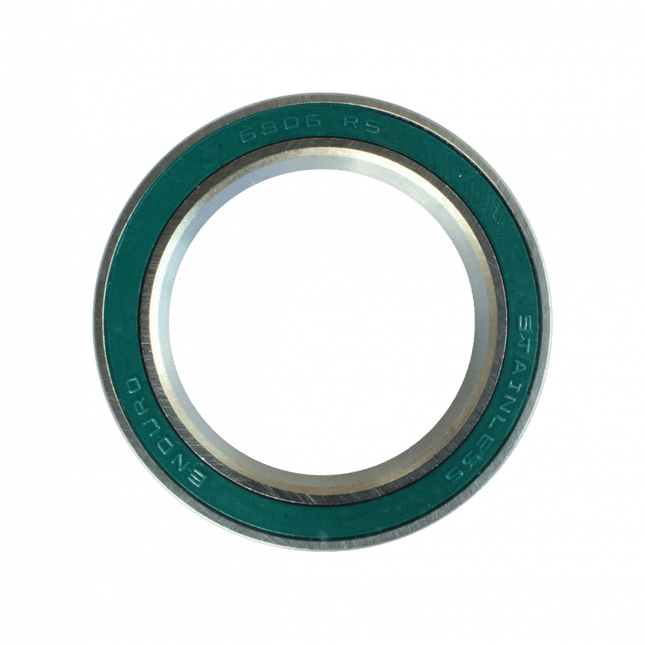

Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6806
Dimensions: 30mm x 42mm x 7mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 21.25g

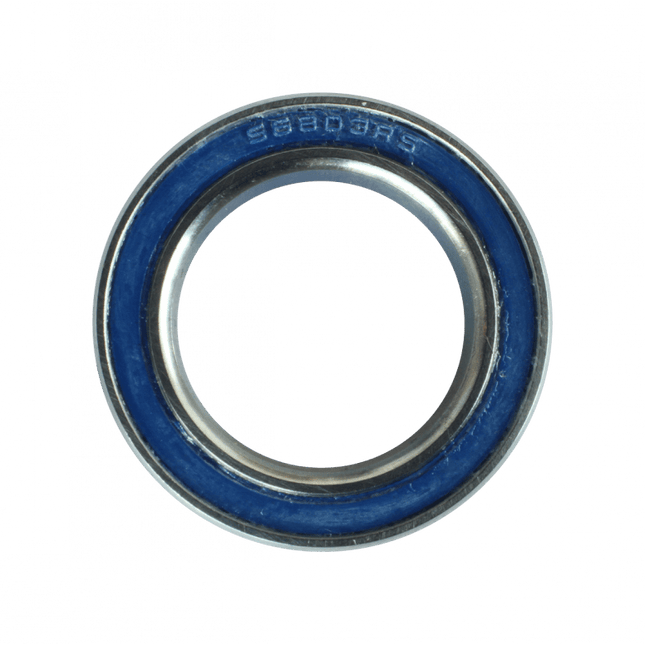

Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6803
Dimensions: 17mm x 26mm x 5mm
ABEC: 3
Grade: 10
Seals:Â LLB
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 7.34g

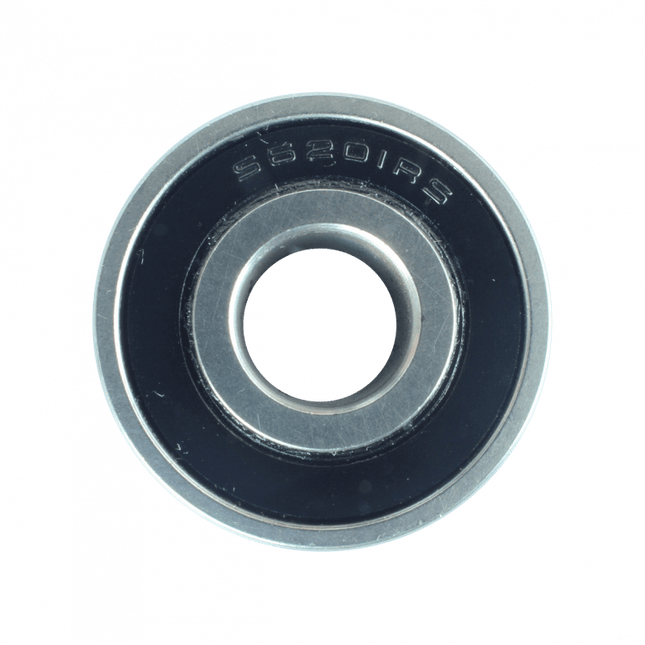

Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6201
Dimensions: 12mm x 32mm x 10mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 34.70g

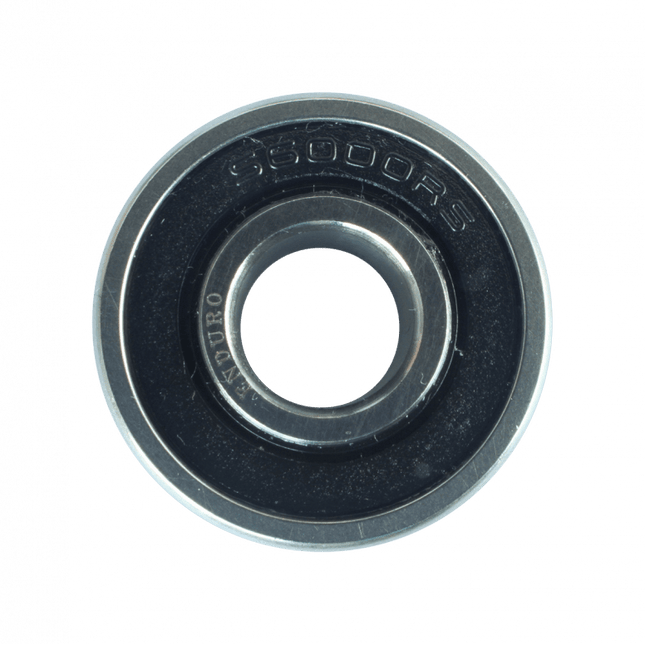

Enduro's Stainless Steel bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6000
Dimensions: 10mm x 26mm x 8mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease:Â Mobile HP 222
Application:Â Hubs, Bottom Brackets
Weight: 10.41g

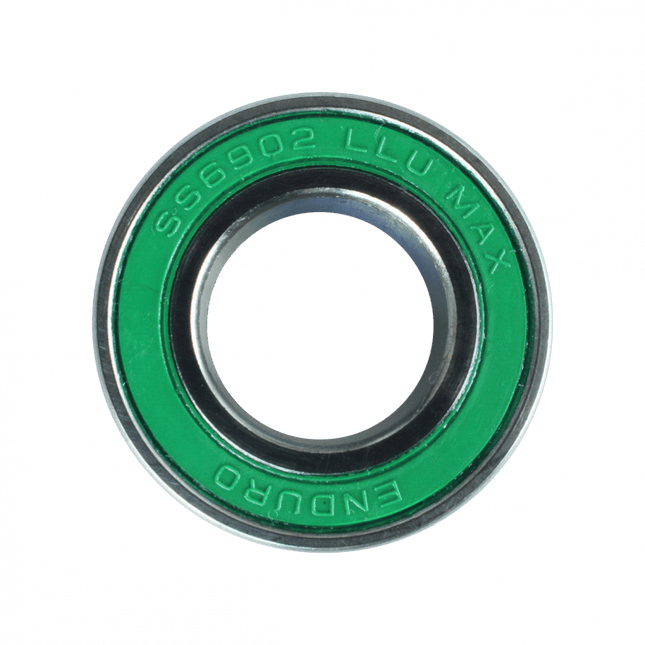

Enduro's Stainless Steel MAX bearings feature the same specs as the popular ABEC 3 range, but with corrosion resistant 440 C stainless steel balls and races.
Bearing Code: S6902
Dimensions: 15mm x 28mm x 7mm
ABEC: 3
Grade: 10
Seals: 2RS
Grease: Mobile HP 222
Application: Hubs, Bottom Brackets
Weight: 15.85g
