MAX bearings are designed without retainers and 40% more balls than standard ABEC 3 or 5 bearings. This enables them to carry a much higher load and makes them perfect for frame pivots. They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.
Bearing Code: 6809
Dimensions: 45mm x 58mm x 7mm
ABEC: 3Â
Grade: 10
Seals: LLU
Grease: CRC Marine
Application: Frame Pivots
Weight: 31.74g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: 36 x 45
Dimensions: 30.2 x 41 x 6.5mm
Contact Angle: Inner 36 degree, Outer 45 degree
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 19.24g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 4545 150
Dimensions: 40 x 52 x 7mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 24.00g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 4545 1375
Dimensions: 37 x 49 x 7mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 28.40g
Low friction needle bearings designed specifically to replace rear shock eyelet bushings. They reduce friction and provide smoother shock travel.
Fits 15mm diameter shock eyelets.
Includes eyelet bearing & spacing hardware.
Sold indiviually - 2 required for one shock.
Replacement bearing for Hellbender Lite headsets. Also compatible with any Cane Creek headset making it a viable upgrade to lighten up your headset.Lightweight aluminium/w steel hybrid Hellbender LITE sealed cartridge bearing
Replacement Bearings for Cane Creek Headsets.All bearings are cross compatible between all Cane Creek headsets. This means you can upgrade your 40 Series headset to a Hellbender or AER bearing etc.Bearing options:ZN40 - Durable zinc coated steel cartridge bearing (standard in 40 Series)Hellbender - Full stainless steel bearing for ultimate durability (standard in Hellbender 70 and 110 Series)AER - Lightweight hybrid Steel/Aluminium. Maintains the quality and durability our bearings are known for, while shaving 35% of the weight
ACB 4545 150M SS - 1-1/2 440C stainless steel Angular Contact Headset bearing (40mm x 51.8mm x 7mm: 45x45 deg)Angular-contact headset bearing featuring 440C stainless steel balls and races for superior corrosion protection.This size bearings fits the DEDA/FSA ICR headset systems.Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem. Enduro bearings also uses LLB type seals and CRC Marine Grease in these bearings to additionally water proof against the elements. Enduro 440C stainless headset bearings are the same bearings found in many popular headset brands, including those that carry a 110 year warranty.The Enduro line of angular-contact headset bearings start with Black Oxide treated chromium Steel races, steps up to full 440C stainless steel, and the top of the line is, lifetime-guaranteed, XD-15 aerospace-stainless (races and balls). They are always engineered with the largest balls possible, feature dual-lip seals riding in a micro-groove (labyrinth) and are filled 90% with high pressure water proof grease for the ultimate protection against sweat and the elements. Enduro Angular Contact (A/C) bearings are designed so all balls are evenly engaged to spread the force over a larger surface area, decreasing friction, minimizing wear and maximizing life.
Static load - 977lbf / 4.34kN
Weight - 24g"
6712 2RS-45 - ABEC-3 Radial Bearing (C3 Clearance) - 60mm x 75mm x 7mm w/45 degree inner chamfer -ABEC-3 Radial Bearing featuring 52100 High-Carbon Chromium alloy races paired with grade 10 Balls with 90% fill, high-pressure, water-proof grease.This bearing has been used as a headset bearing by VAAST bikesThe Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.Static load - 878lbf / 3.90kNWeight - 67g
ACB 3645 5062 SS - 1.8 inch 440C stainless steel Angular Contact Headset Bearing (50mm 62mm x 8mm: 36 x 45 deg) -Angular-contact headset bearing featuring 440C stainless steel balls and races for superior corrosion protection.This oversized size bearing is also known as TH MR229, and has been specified on the Giant Reign e+ series bikes.Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatments to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem. Enduro Bearings also uses LLB type seals and CRC Marine Grease in these bearings to additionally water proof against the elements. Enduro 440C stainless headset bearings are the same bearings found in many popular headset brands, including those that carry a 110 year warranty.The Enduro line of headset bearings begin with chromium steel, Black Oxide finish A/C type and then offer full 440C stainless steel at the top. They are always engineered with the largest balls possible and dual lip seals riding in a micro-groove for ultimate protection against sweat and the elements. They are filled 90% with high pressure water proof grease, so you never have to guess if there is grease inside. Enduro angular Contact (A/C) bearings, all balls are engaged to spread the force over a larger surface area, pressure water and minimizing wear.
Static load - 935lbf / 4.15kN
Weight - 20g
ACB 4545 4252 SS - 1-1/2 440C stainless steel Angular Contact Headset bearing (42mm x 52mm x 7mm; 45 x 45deg) - Angular-contact headset bearing featuring 440C stainless steel balls and races for superior corrosion protection.This size bearing has been used as an upper bearing for Acros headsets that are designed specifically for aero cable routing, and is also know by part number AC4252Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatments to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem. Enduro Bearings also uses LLB type seals and CRC Marine Grease in these bearings to additionally water proof against the elements. Enduro 440C stainless headset bearings are the same bearings found in many popular headset brands, including those that carry a 110 year warranty.The Enduro line of angular-contact headset bearings start with Black Oxide treated Chromium Steel races, steps up to full 440C stainless steel, and the top of the line is, lifetime-guaranteed, XD-15 aerospace-stainless (races and balls). They are always engineered with the largest balls possible, feature dual-lip seals riding in a micro-groove (labyrinth) and are filled 90% with high pressure water proof grease for the ultimate protection against sweat and the elements. Enduro Angular Contact (A/C) bearings are designed so all balls are evenly engaged to spread the force over a larger surface area, decreasing friction, minimizing wear and maximizing life.
Static load - 917lbf / 408kN
Weight - 24.9g
ACB 6806 CC SS- 1-3/8"" 440C stainless steel Angular Contact Headset bearing (37mm x 49mm x 6.5mm; 36 x 45deg)Angular-contact headset bearing featuring 440C stainless steel balls and races for superior corrosion protection.This size bearing is also known in the bike Industry by part number HD446K.Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatments to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem. Enduro Bearings also uses LLB type seals and CRC Marine Grease in these bearings to additionally water proof against the elements. Enduro 440C stainless headset bearings are the same bearings found in many popular headset brands, including those that carry a 110 year warranty.The Enduro line of angular-contact headset bearings start with Black Oxide treated Chromium Steel races, steps up to full 440C stainless steel, and the top of the line is, lifetime-guaranteed, XD15 aerospace-stainless (races and balls). They are always engineered with the largest balls possible, feature dual-lip seals riding in a micro-groove (labyrinth) and are filled 90% with high pressure water proof grease for the ultimate protection against sweat and the elements. Enduro Angular Contact (A/C) bearings are designed so all balls are evenly engaged to spread the force over a larger surface area, decreasing friction, minimizing wear and maximizing life.
Static load - 917lbf / 408kN
Weight - 24.9g"
Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem. Enduro Bearings also uses LLB type seals and CRC Marine grease in these bearings to additionally water proof against the elements. Enduro 440C stainless headset bearings are the same bearings found in many popular headset brands, including those that carry a 110 year warranty.The Enduro line of angular-contact headset bearings start with Black Oxide treated Chromium Steel races, steps up to full 440C stainless steel, and the top of the line is, lifetime-guaranteed, XD-15 aerospace-stainless (races and balls). They are always engineered with the largest balls possible, feature dual-lip seals riding in a micro-groove (labyrinth) and are filled 90% with high pressure water proof grease for the ultimate protection against sweat and the elements. Enduro Angular Contact (A/C) bearings are designed so all balls are evenly engaged to spread the force over a larger surface area, minimizing wear and maximizing life.
ACB 4545 405495 SS 1-1/2" 440C stainless steel Angular Contact Headset bearing (40.5mm x 49.5mm x 6.5mm: 45x45 deg)
Angular-contact headset bearing featuring 440C stainless steel balls and races for superior corrosion protection.
This size bearings also known in the bike Industry by part number:
HSS 6011
ACB495H6.5
Static load - 470lbf / 2.09kN
Weight - 24g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 3645 3544
Dimensions: 35 x 44 x 5.5mm
Angular Contacts: 36x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 25.50g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 3645 3344
Dimensions: 33 x 44 x 6mm
Angular Contacts: 36x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 25.50g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 6805
Dimensions: 27,15 x 38 x 6,5mm
Angular Contacts: 36x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 1125
Dimensions: 30,5 x 41,8 x 6,3mm
Angular Contacts: 36x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Replacement Bearings for Cane Creek Headsets.All bearings are cross compatible between all Cane Creek headsets. This means you can upgrade your 40 Series headset to a Hellbender or AER bearing etc.Bearing options:
ZN40 - Durable zinc coated steel cartridge bearing (standard in 40 Series)
Hellbender - Full stainless steel bearing for ultimate durability (standard in Hellbender 70 and 110 Series)
AER - Lightweight hybrid Steel/Aluminum. Maintains the quality and durability our bearings are known for, while shaving 35% of the weight.
Replacement Bearings for Cane Creek Headsets.All bearings are cross compatible between all Cane Creek headsets. This means you can upgrade your 40 Series headset to a Hellbender or AER bearing etc.Bearing options:
ZN40 - Durable zinc coated steel cartridge bearing (standard in 40 Series)
Hellbender - Full stainless steel bearing for ultimate durability (standard in Hellbender 70 and 110 Series)
AER - Lightweight hybrid Steel/Aluminium. Maintains the quality and durability our bearings are known for, while shaving 35% of the weight.
Replacement Bearings for Cane Creek Headsets.All bearings are cross compatible between all Cane Creek headsets. This means you can upgrade your 40 Series headset to a Hellbender or AER bearing etc.Bearing options:
ZN40 - Durable zinc coated steel cartridge bearing (standard in 40 Series)
Hellbender - Full stainless steel bearing for ultimate durability (standard in Hellbender 70 and 110 Series)
AER - Lightweight hybrid Steel/Aluminium. Maintains the quality and durability our bearings are known for, while shaving 35% of the weight.

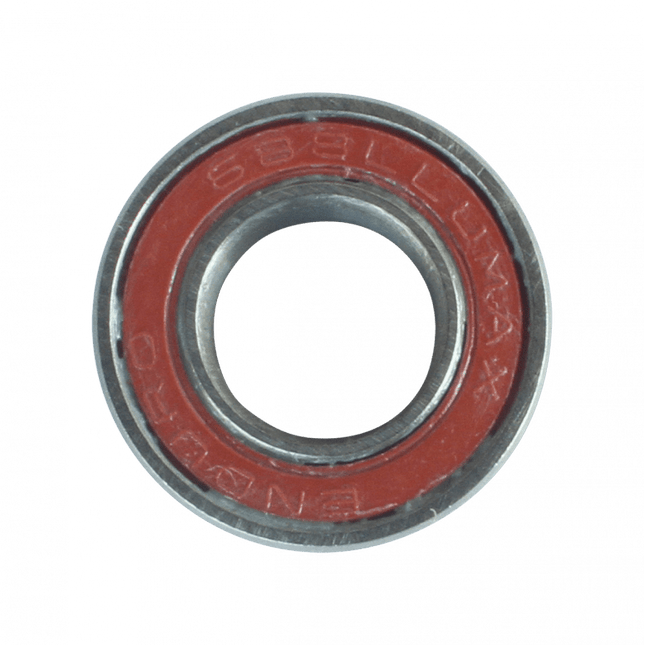

MAX berings are designed without retainers and 40% more balls than standard ABEC 3 or 5 bearings. This enables them to carry a much higher load and makes them perfect for frame pivots. They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.
Bearing Code: 688
Dimensions: 8mm x 16mm x 5mm
ABEC: 3Â
Grade: 10
Seals: LLU
Grease: CRC Marine
Application: Frame Pivots
Weight: 3.90g
