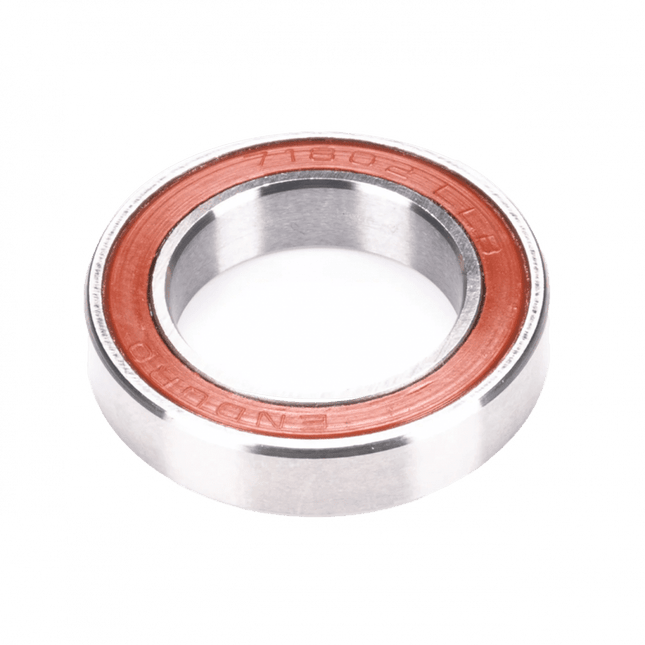

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: 71802
Dimensions: 15mm x 24mm x 5mm
ABEC: 5
Grade: 5
Seals: LLM
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 6.38g

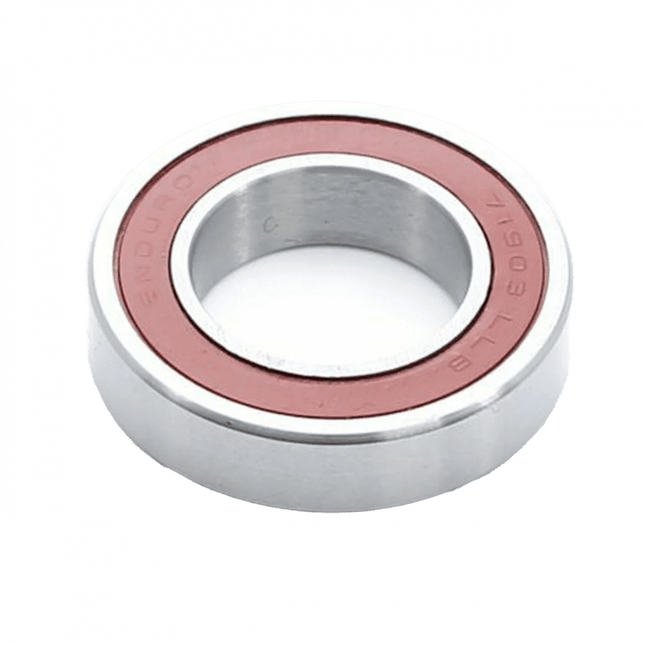

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: 71903
Dimensions: 17mm x 30mm x 7mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 14.47g

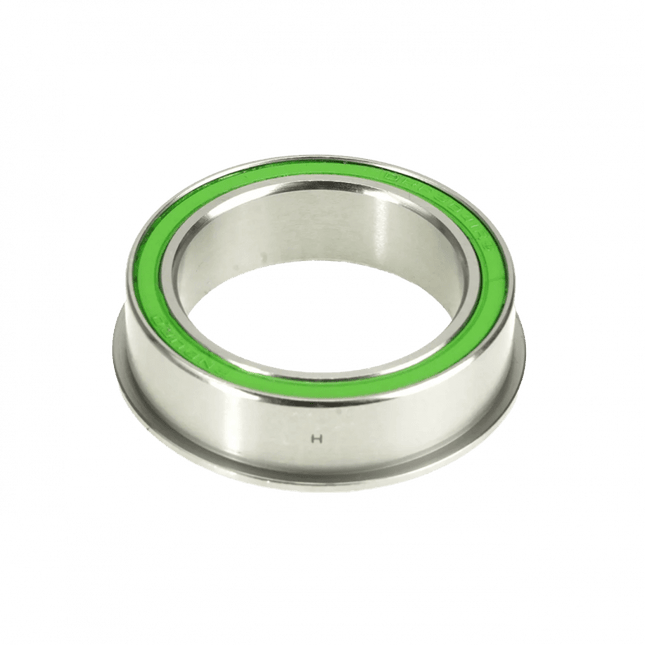

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: DRF 3041 2RS
Dimensions: 30x41x11mm
ABEC: 5
Grade: 5
Seals: 2RS
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 33.60g

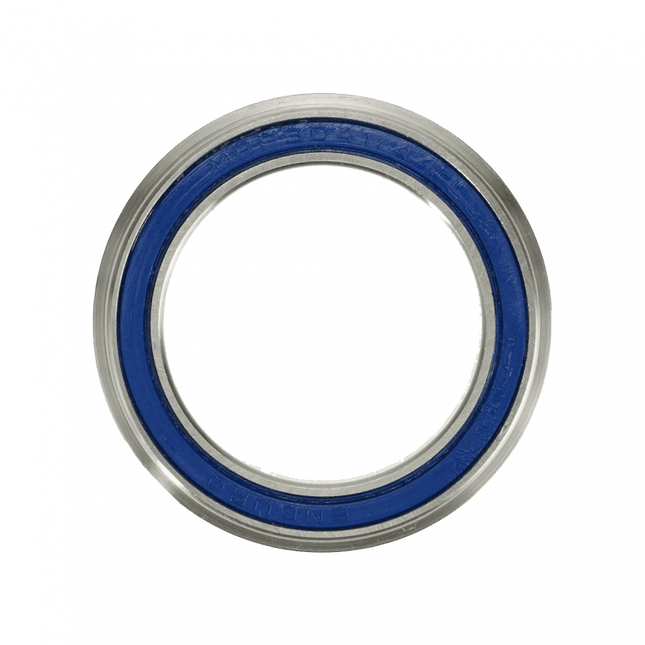

CH MRF 3041/44 LLB - ABEC-5, Ceramic-Hybrid, Flanged Bottom Bracket bearing solution for BB86/92 framesets and BB30 style cranksets - 30mm x 41/44mm x 7mmThis custom designed bearing allows you to fit 30mm cranks directly into a BB86/92 frameset by utilizing flanged bearings that press directly into the BB shell to provide a clean solution in an extremely tight space.  These Ceramic-Hybrid bearings feature 52100 High-Carbon Chromium alloy races paired with grade 5 Silicon-Nitride Ceramic Balls with 90% fill, high-pressure, water-proof grease. Sl-Ni ceramic balls rolls smoother, reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing. This bearing is designed specifically for BB86/92 framesets and cranksets with 30mm BB spindles (BB386 & BB30). If are looking for a more robust solution for the same BB/crankset configuration, you may also want to consider our double-row bearings in this size (DRF 3041).The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.
Static Load: 650 lbf, 2.89 Kn
Weight: 20.5g

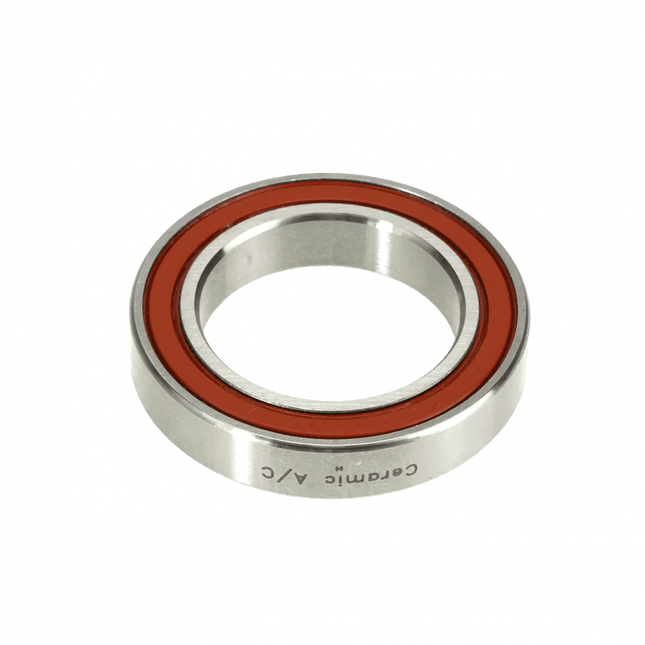

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: MRA 2437
Dimensions: 24x37x7mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 18.90g

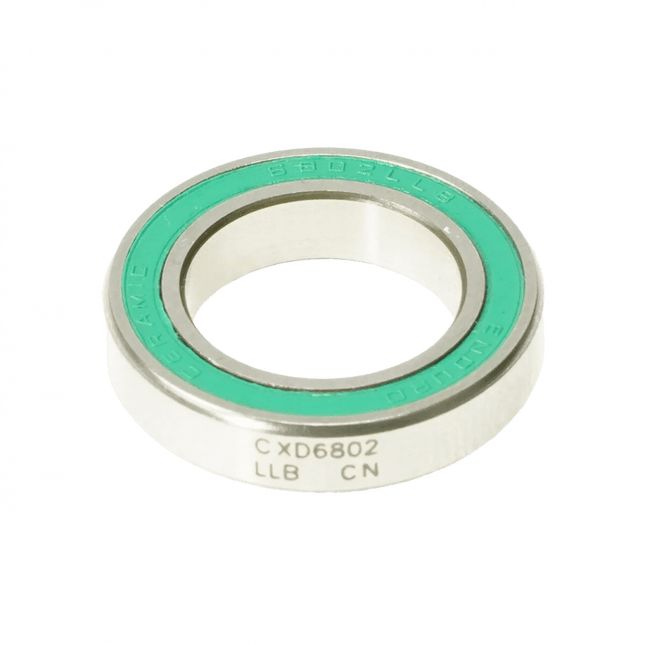

The ultimate bottom bracket bearing. XD-15 uses an angular contact design to provide the perfet preload. Combined with the advanced lightweight nitrogen steel races and oversied grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market.
Bearing Code: 6802
Dimensions: 15 x 24 x 5mm
ABEC: 5
Grade: 3
Seals: LLB
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 6.38g

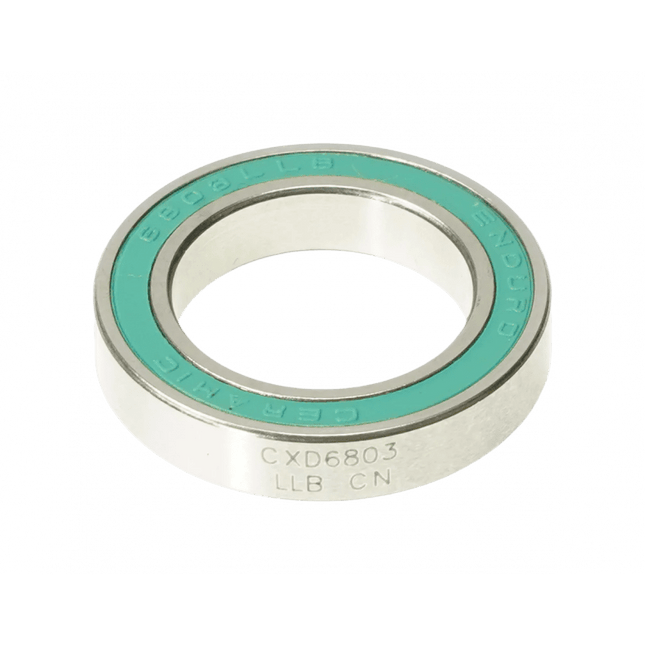

The ultimate bottom bracket bearing. XD-15 uses an angular contact design to provide the perfet preload. Combined with the advanced lightweight nitrogen steel races and oversied grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market.
Bearing Code: 6803
Dimensions: 17 x 26 x 5mm
ABEC: 5
Grade: 3
Seals: LLB
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 6.85g

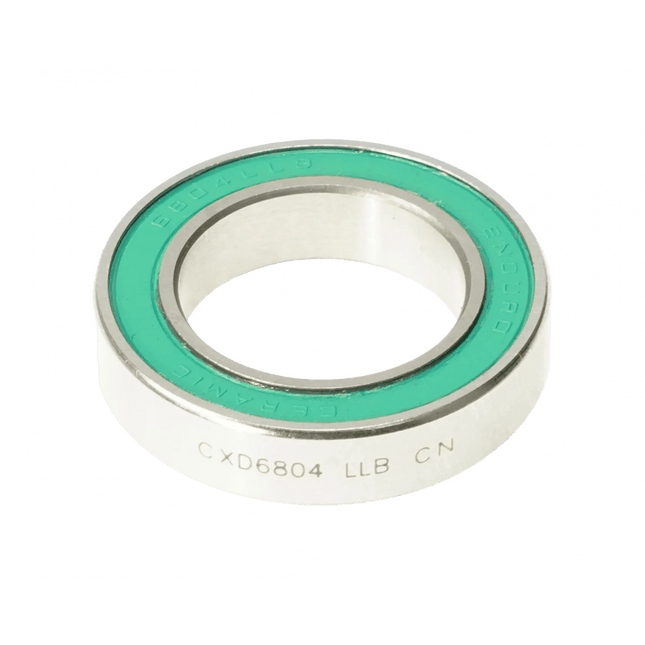

The ultimate bottom bracket bearing. XD-15 uses an angular contact design to provide the perfet preload. Combined with the advanced lightweight nitrogen steel races and oversied grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market.
Bearing Code: 6804
Dimensions: 20 x 32 x 7mm
ABEC: 5
Grade: 3
Seals: LLB
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 15.54g

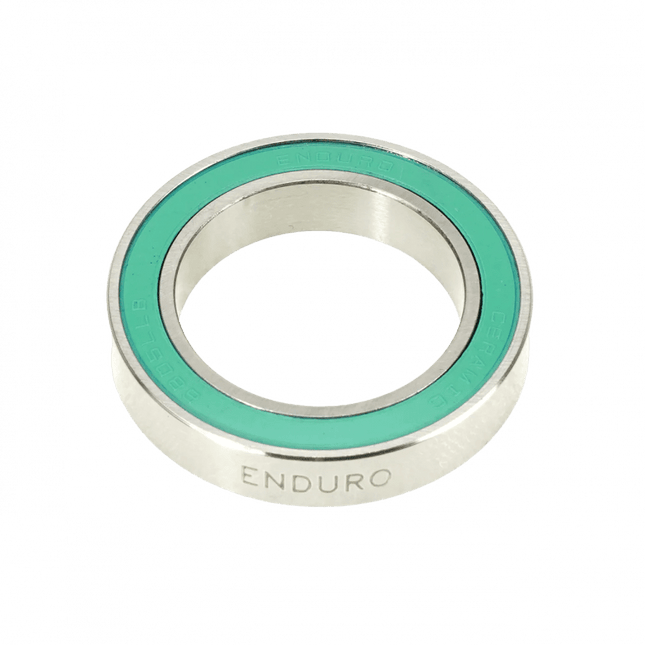

The ultimate bottom bracket bearing. XD-15 uses an angular contact design to provide the perfet preload. Combined with the advanced lightweight nitrogen steel races and oversied grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market.
Bearing Code: 6805
Dimensions: 25 x 37 x 7mm
ABEC: 5
Grade: 3
Seals: LLB
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 18.74g

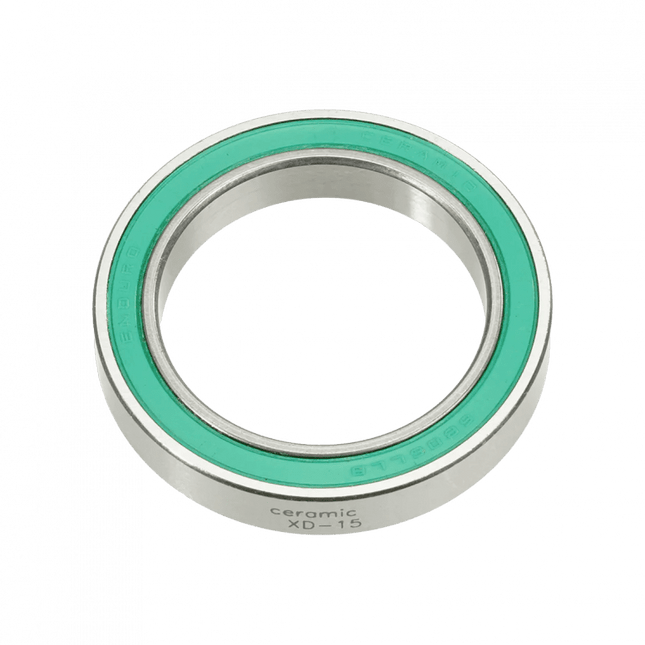

The ultimate bottom bracket bearing. XD-15 uses an angular contact design to provide the perfet preload. Combined with the advanced lightweight nitrogen steel races and oversied grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market.
Bearing Code: 6806
Dimensions: 30 x 42 x 7mm
ABEC: 5
Grade: 3
Seals: VV
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 19.70g

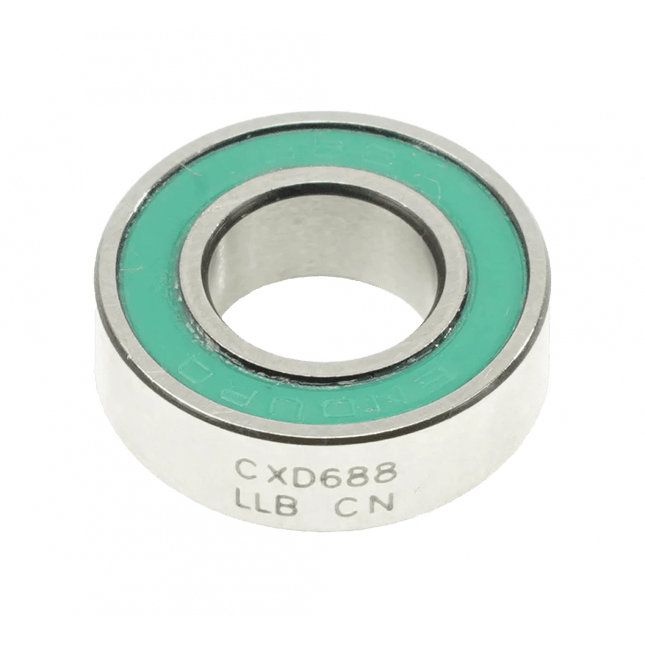

The ultimate bottom bracket bearing. XD-15 uses an angular contact design to provide the perfet preload. Combined with the advanced lightweight nitrogen steel races and oversied grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market.
Bearing Code: 688
Dimensions: 8 x 16 x 5mm
ABEC: 5
Grade: 3
Seals: LLB
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 14.60g

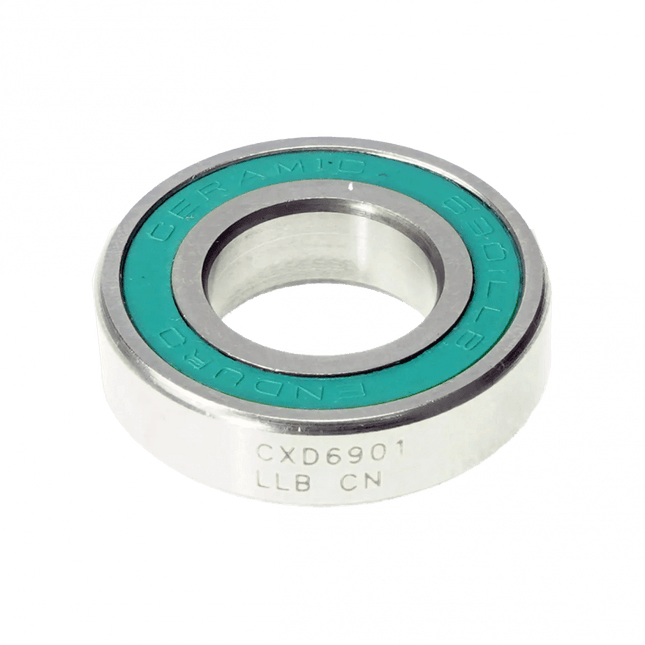

The ultimate bottom bracket bearing. XD-15 uses an angular contact design to provide the perfet preload. Combined with the advanced lightweight nitrogen steel races and oversied grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market.
Bearing Code: 6901
Dimensions: 12 x 24 x 6mm
ABEC: 5
Grade: 3
Seals: LLB
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 9.80g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 4545 1125
Dimensions: 30.5 x 41.8 x 6.5mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 19.24g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: S68808
Dimensions: 40 x 53 x 7mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 24.00g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: B 541
Dimensions: 1-1/16 x 1-1/2 x 9/32 inch
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 19.92g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: B 542
Dimensions: 1"5/16 x 1"3/4 x 9/32"
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 24.81g
Enduro stainless headset bearings feature 440C stainless steel balls and races to provide maximum corrosion resistance. Not all stainless steel is created equal. Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem. Bearings also uses LLB type seals and CRC Marine Grease in these bearings to additionally waterproof against the elements. The Enduro line of headset bearings begin with chromium steel, Black Oxide finish A/C type and then offer full 440C stainless steel at the top. They are always engineered with the largest balls possible and dual lip seals riding in a micro groove for ultimate protection against sweat and the elements. They are filled 90% with high pressure waterproof grease, so you never have to guess if there is grease inside.
Bearing Code: B 543
Dimensions: 1"9/16 x 2 x 9/32"
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 28.77g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 4545 125L
Dimensions: 34.1 x 46.8 x 7mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 25.50g
ACB 4545 136 SS - 1-1/4 440C stainless steel Angular Contact Headset bearing (32.75mm x 41.75mm x 6mm: 45x45deg)Angular-contact headset bearing featuring 440C stainless steel balls and races for superior corrosion protection.This size bearing is also known in the bike Industry by these part numbers:
MR136
ACB418H6
Not all stainless steel is created equal.Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires special heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though it is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions or where sweat and spilled sports drinks can be a problem. Enduro Bearings also uses LLB-type seals and Almagard 3752 grease in these bearings to additionally waterproof against the elements. Enduro 440C stainless headset bearings are the same bearings found in many popular headset brands with a lifetime warranty.The Enduro line of angular-contact headset bearings starts with Black Oxide treated Chromium Steel races and then steps up to full 440C stainless steel. They are always engineered with the largest balls possible, feature dual-lip seals riding in a micro-groove (labyrinth), and are filled 90% with high-pressure waterproof grease for the ultimate protection against sweat and the elements. Enduro Angular Contact (A/C) bearings are designed so all balls are evenly engaged to spread the force over a larger surface area, minimizing wear and maximizing life.
Static load - 425lbf / 1.89kN
Weight - 15.1g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 4545 137
Dimensions: 37 x 46.85 x 7mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 23.30g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 6808 CC
Dimensions: 40 x 52 x 6.5mm
Angular Contacts: 36x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 24.90g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 276442 ACB MINI
Dimensions: 14.2 x 25 x 6.5mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 8g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 125T
Dimensions:Â 34.1 x 46 x 7mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 21.82g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 1125T
Dimensions: 30.15 x 41 x 7mm
Angular Contacts: 45x45
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 21.82g
