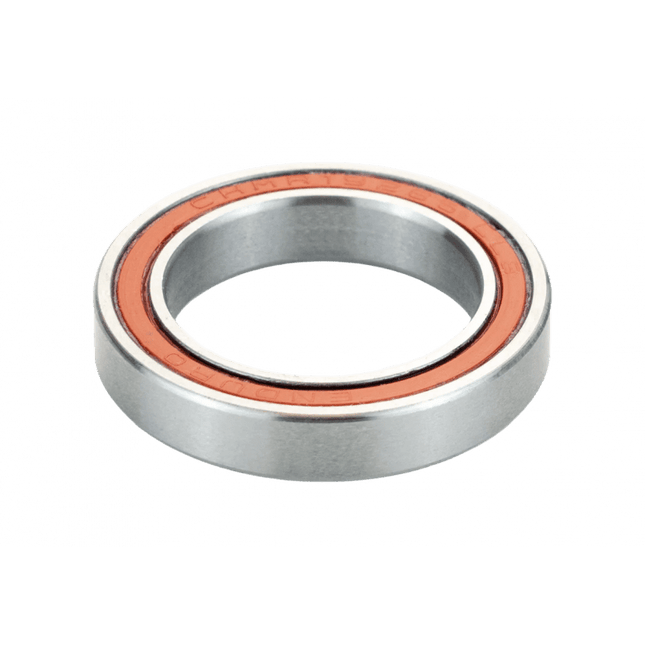

CH MR 19285LB - ABEC-5, Ceramic-Hybrid, radial bearing (C3 clearance) - 19mm x 28mm x 5mm -This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 High-Carbon chromium alloy races, with Grade 5 Silicon-Nitride Ceramic balls, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobilux NGLI 2 high pressure water proof synthetic grease. Si3N4 Ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing.A bit of an oddball size, this bearing generally used as a hub bearing, specifically for Fulcrum rear wheels.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 428lbf / 1.90kN
Weight - 13.5g

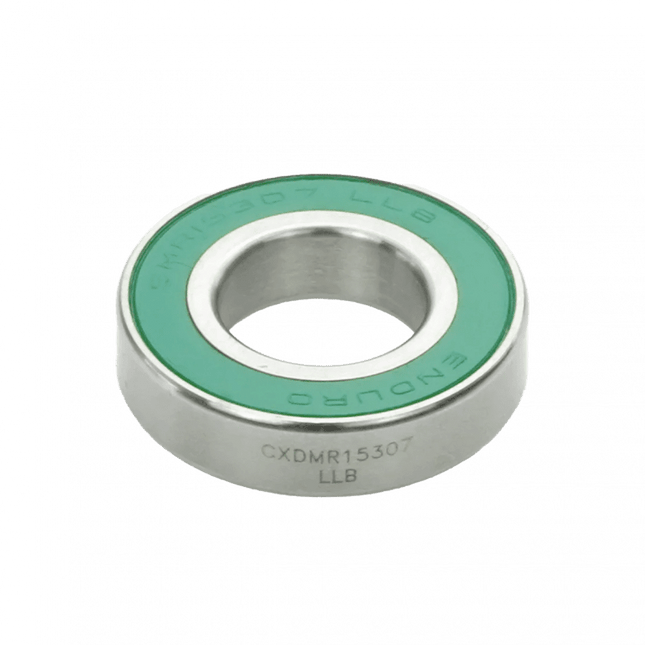

CXD MR 15307 LLB - XD-15 Ceramic-Hybrid, ABEC-5, radial bearing (CN clearance) - 15mm x 30mm x 7mm -The ultimate upgradeAn Enduro Bearings exclusive, our XD-15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 3 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 3 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. Dual-lip labyrinth (LLB) seals protect from the elements, and contain the 90% fill Kluber NBU52 grease that runs smoother with time and is highly resistant to being washed out.The most impressive feature of XD-15 ceramic-hybrid bearings is, unlike other bearings, they only get better with time and use. As the bearings wear-in, the super-hard ceramic balls actually make the XD-15 races even smoother. So, when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD-15 bearings not only provide the same initial advantages on day one, but will become faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. We are so confident in the performance of XD-15 Ceramic-Hybrid bearings that they carry a limited lifetime warranty against wear and corrosion.This size bearing is used primarily in hubs.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 565lbf / 2.51kN
Weight - 11.19g

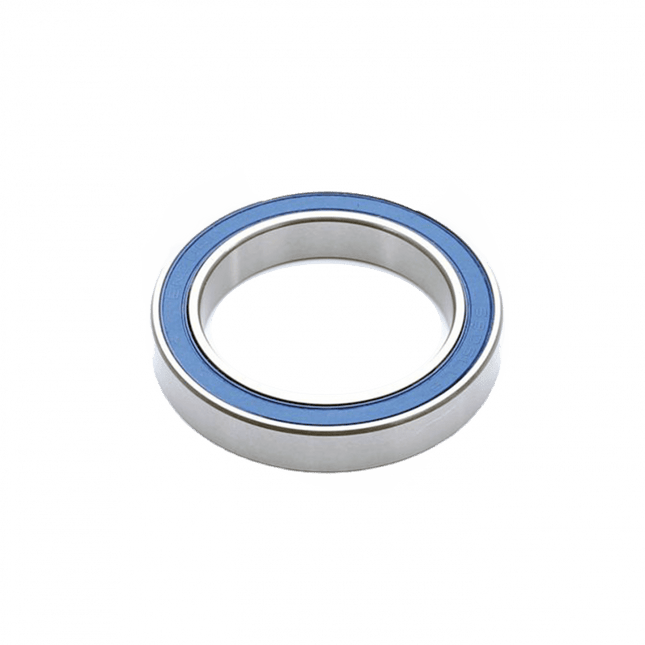

CXD 6806/29 LLB - ABEC-5, XD-15, Ceramic-Hybrid Radial Bearing - 29mm x 42mm x 7mm -The ultimate upgradeAn Enduro Bearings exclusive, our XD-15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 3 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 3 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. 90% fill Kluber NBU52 grease only runs better and smoother with time and is highly resistant to being washed out. Its engineered to stick to the balls and continually be pulled back into the ball path where it is needed.Find out why Bike Radar reported the XD-15 Hands down, the best bottom bracket we have ever tested. We are so confident in the performance of XD-15 Ceramic-Hybrid bearings, that we offer an full lifetime warranty against wear and corrosion. The most impressive feature of these bearings is, unlike other bearings, they only get better with use. As the bearings wear-in, the balls actually make the races even smoother. So when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD-15 bearings not only provide the same initial advantages on day one, but will get even faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. The most common use for this bearings as a direct replacement bearing for SRAM DUB bottom brackets with a 29mmD spindle.The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 854lbf / 3.80kN
Weight - 19.7g"

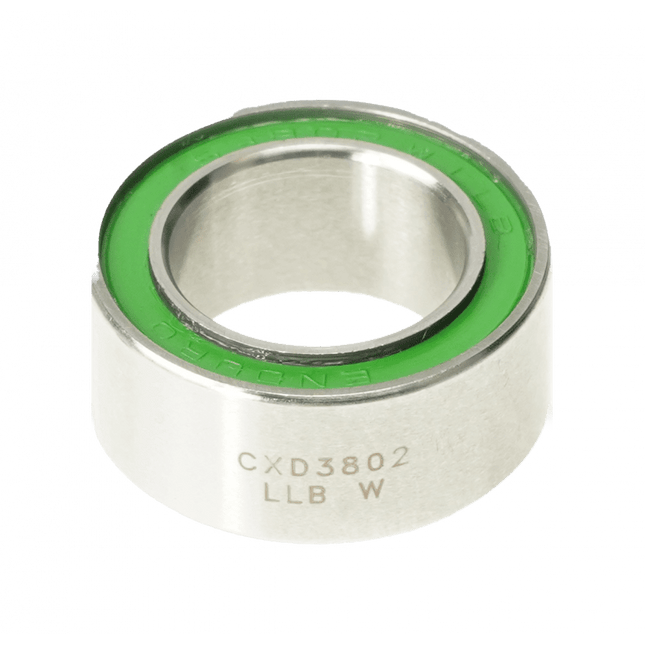

CXD 3802 LLB W - XD-15 Ceramic-Hybrid, ABEC-5, Double-Row, Radial Bearing (C3 Clearance) - 15mm x 24mm x 10mmAn Enduro Bearings exclusive, our XD-15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 3 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 3 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. Dual-lip labyrinth (LLB) seals protect from the elements, and contain the 90% fill Kluber NBU52 grease that runs smoother with time and is highly resistant to being washed out.The most impressive feature of XD-15 ceramic-hybrid bearings is, unlike other bearings, they only get better with time and use. As the bearings wear-in, the super-hard ceramic balls actually make the XD-15 races even smoother. So, when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD-15 bearings not only provide the same initial advantages on day one, but will become faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. We are so confident in the performance of XD-15 Ceramic-Hybrid bearings that we offer an unlimited lifetime bearing and race warranty.This bearing is used primarily by White Industries in their rear hubs. The extra-wide double-row design greatly reduces flex in the axle of the rear hub, while precisely filling the same space as two 6802 single-row bearings.The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.
Static Load - 520 lbf, 2.31 Kn
Weight: 10.5g

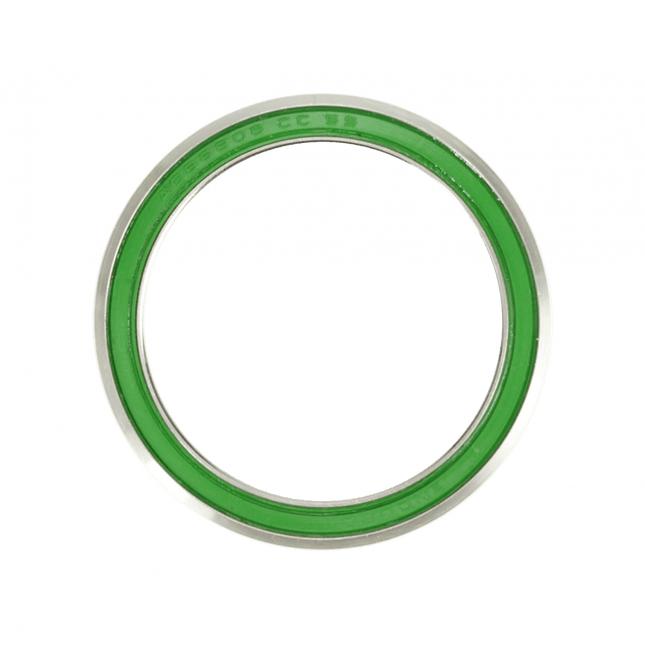

The ultimate bearing. XD-15 uses an angular contact design to provide the perfect preload. Combined with the advanced lightweight nitrogen steel races and oversized grade 3 Cerbec ceramic balls, XD-15 is smoother and has a greater load capacity than any other bearing on the market. Now with Limited Lifetime Warranty against manufacturing defect.
Bearing Code: ACB 6808 CC
Dimensions: 40mm x 52mm x 6.5mm
ABEC: 5
Grade: 3
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Headsets

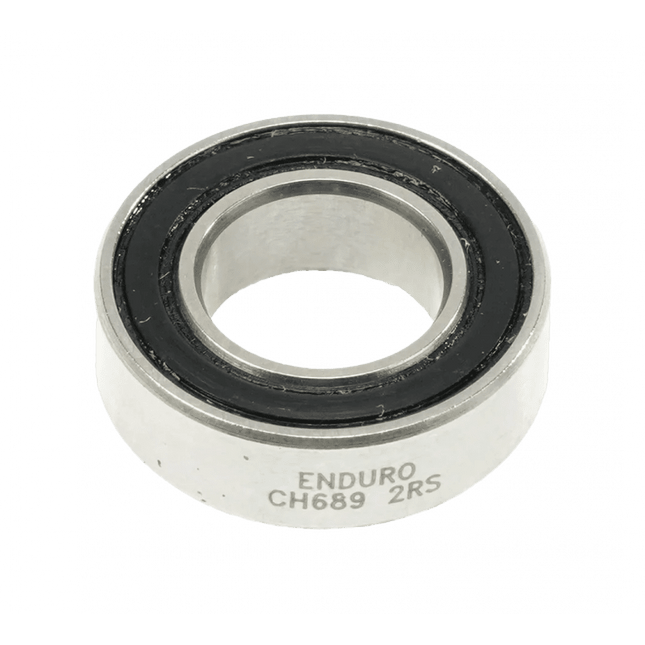

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: 689
Dimensions: 9mm x 17mm x 5mm
ABEC: 5
Grade: 5
Seals: 2RS
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Replacement Bearings for Cane Creek Headsets.All bearings are cross compatible between all Cane Creek headsets. This means you can upgrade your 40 Series headset to a Hellbender or AER bearing etc.Bearing options:
ZN40 - Durable zinc coated steel cartridge bearing (standard in 40 Series)
Hellbender - Full stainless steel bearing for ultimate durability (standard in Hellbender 70 and 110 Series)
AER - Lightweight hybrid Steel/Aluminium. Maintains the quality and durability our bearings are known for, while shaving 35% of the weight.
Replacement Bearings for Cane Creek Headsets.All bearings are cross compatible between all Cane Creek headsets. This means you can upgrade your 40 Series headset to a Hellbender or AER bearing etc.Bearing options:
ZN40 - Durable zinc coated steel cartridge bearing (standard in 40 Series)
Hellbender - Full stainless steel bearing for ultimate durability (standard in Hellbender 70 and 110 Series)
AER - Lightweight hybrid Steel/Aluminium. Maintains the quality and durability our bearings are known for, while shaving 35% of the weight.
Replacement Bearings for Cane Creek Headsets.All bearings are cross compatible between all Cane Creek headsets. This means you can upgrade your 40 Series headset to a Hellbender or AER bearing etc.Bearing options:
ZN40 - Durable zinc coated steel cartridge bearing (standard in 40 Series)
Hellbender - Full stainless steel bearing for ultimate durability (standard in Hellbender 70 and 110 Series)
AER - Lightweight hybrid Steel/Aluminium. Maintains the quality and durability our bearings are known for, while shaving 35% of the weight.
Stainless steel version of the 36x45 angular contact bearing. Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: 36 x 45
Dimensions: 30.5 x 41 x 6.5mm
Contact Angle: Inner 36 degree, Outer 45 degree
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 19.24g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: 6804
Dimensions: 19 x 30 x 6.5mm
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 13.50g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: 6805
Dimensions: 27.15 x 38 x 6.5mm
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 17.67g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: 6808
Dimensions: 40 x 52 x 6.5mm
Contact Angle: 45 degree
ABEC: 3Â
Grade: 10
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 24.90g
Angular contact bearings provide maximum load distribution across all of the ball bearings unlike standard bearings which load only those at the bottom of the bearing. This load distribution ensures bearing life is increased drastically allowing for more time spent in the saddle than the workshop.
Bearing Code: ACB 6808 CC
Dimensions: 40 x 51 x 6.5mm
Angular Contacts: 36x36
ABEC: 3
Grade: 10
Grease: Kyodo Yushi PS-2
Application: Headsets
Weight: 24.90g
Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.

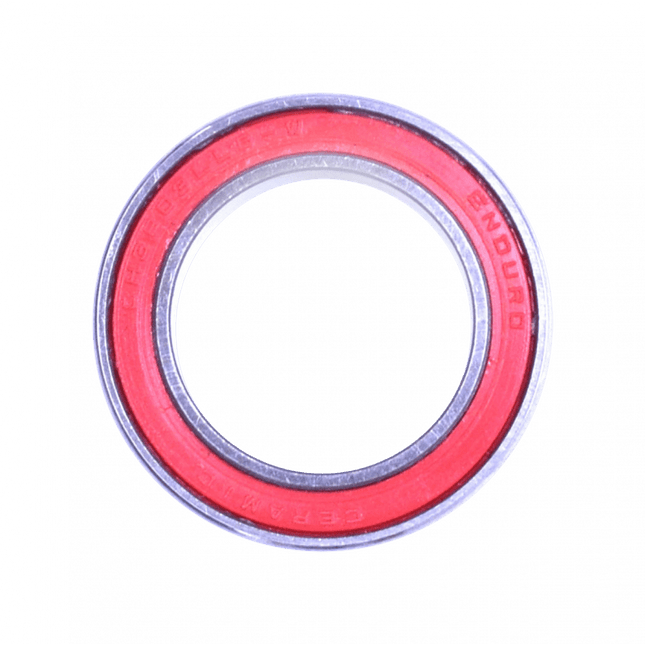

Bearing Code: 3803-W
Dimensions: 17mm x 26mm x 10mm
ABEC: 5
Grade: 5
Seals: LLB
Grease:Â Kyodo Yushi PS-2
Application:Â Hubs, Bottom Brackets
Weight: 14.60g

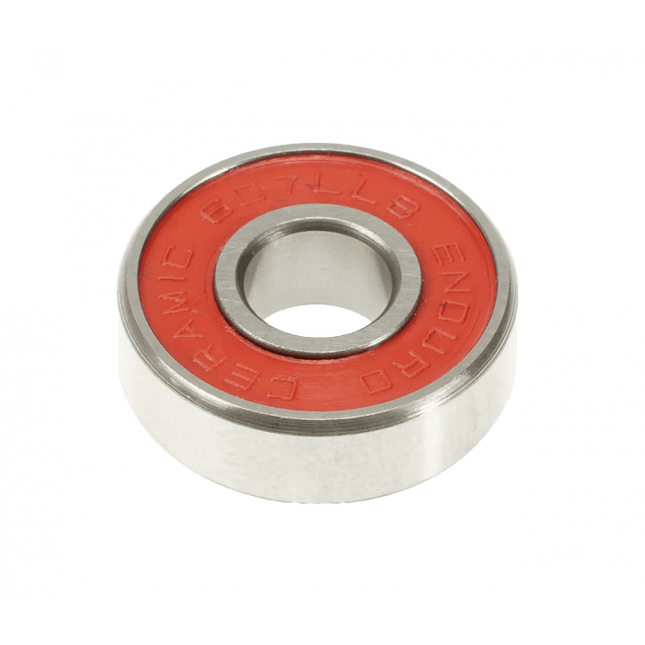

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: 607
Dimensions: 7mm x 19mm x 6mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 6.57g

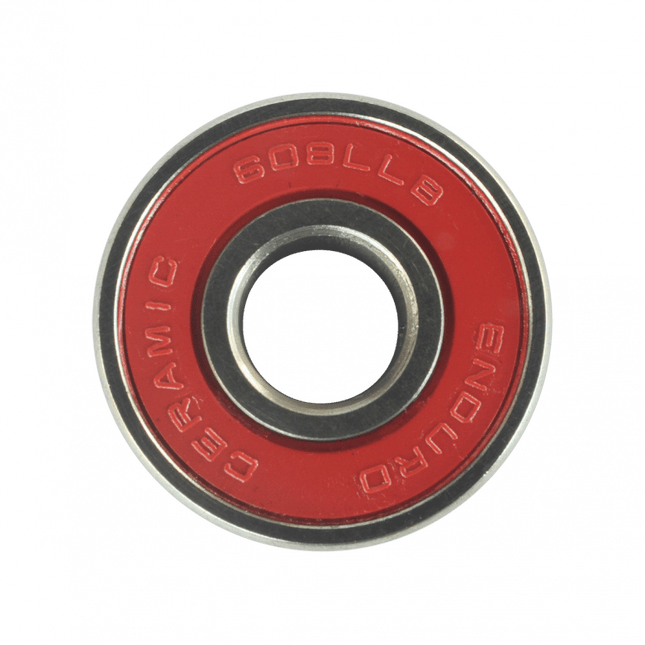

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: 608
Dimensions: 8mm x 22mm x 7mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 10.06g

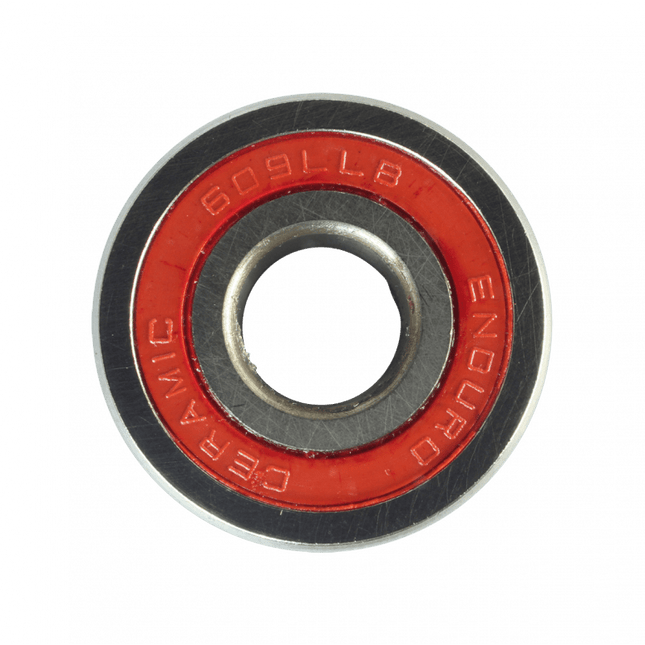

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: 609
Dimensions: 9mm x 24mm x 7mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 14.53g

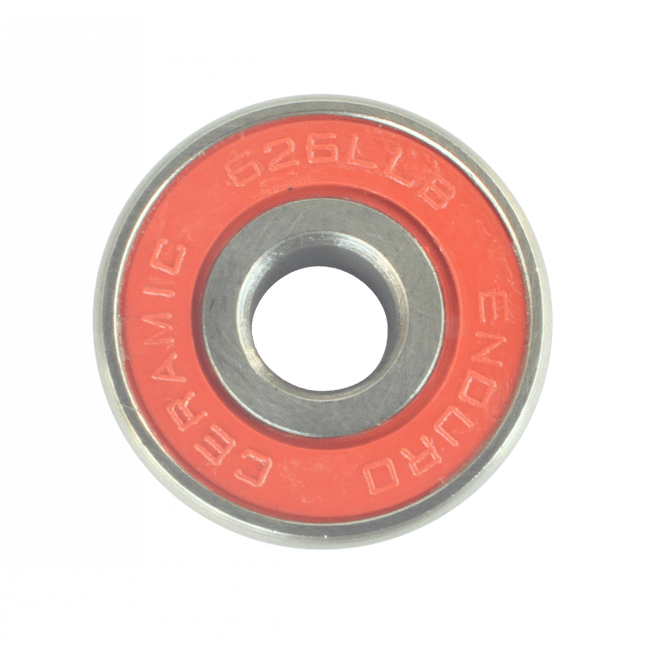

Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.
Bearing Code: 626
Dimensions: 6mm x 19mm x 6mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 6.92g
Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.

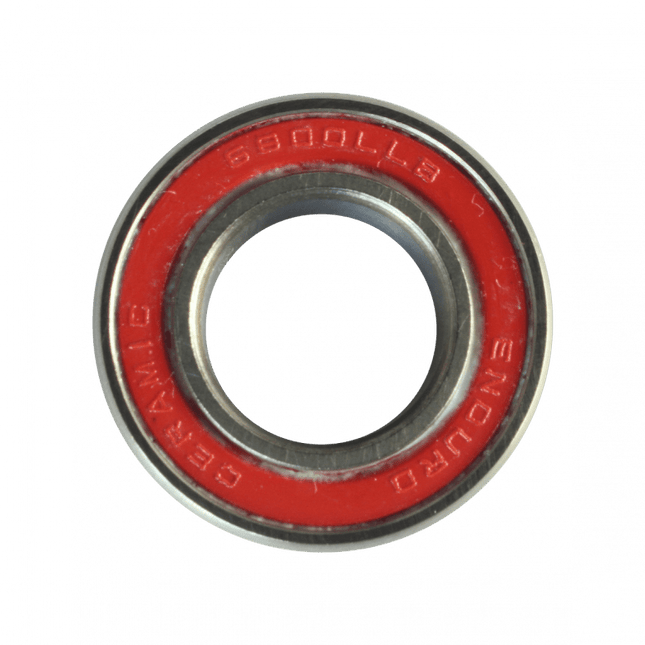

Bearing Code: 6800
Dimensions: 10mm x 19mm x 5mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 4.54g
Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.

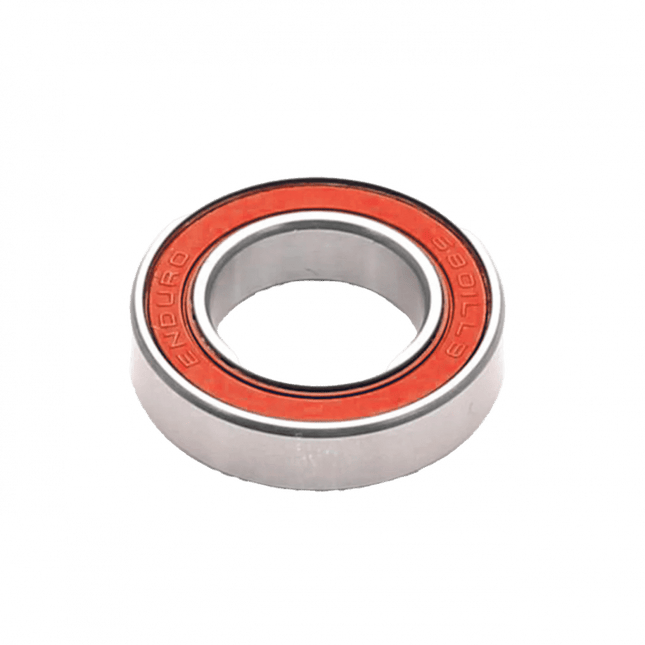

Bearing Code: 6801
Dimensions: 12mm x 21mm x 5mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 5.31g
Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.

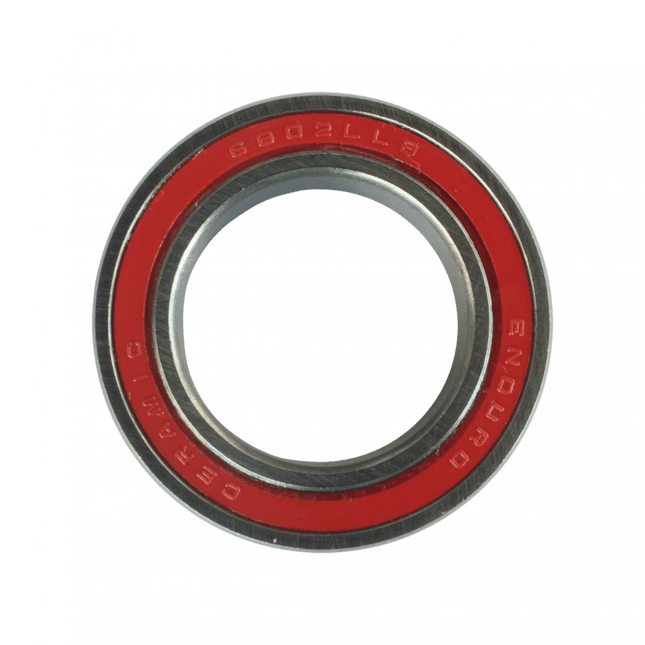

Bearing Code: 6802
Dimensions: 15mm x 24mm x 5mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 6.38g
Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.

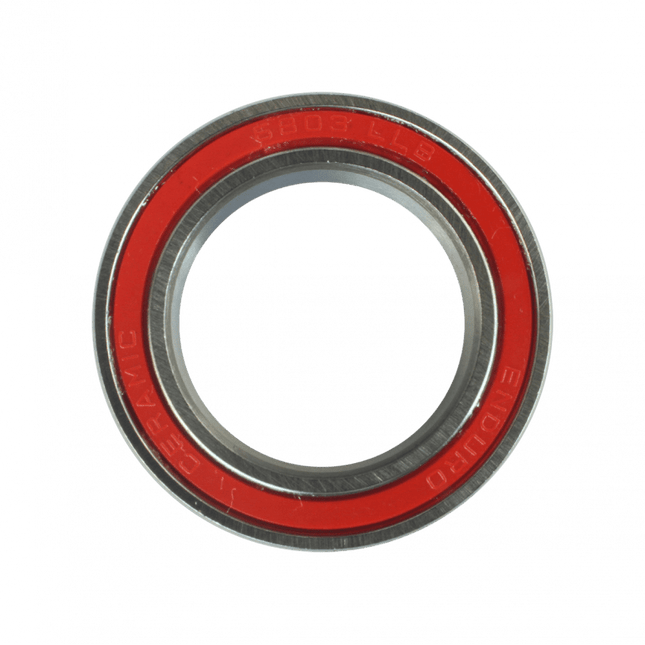

Bearing Code: 6803
Dimensions: 17mm x 26mm x 5mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 6.85g
Ceramic Hybrid combines the chromium steel races found in Enduro's ABEC 5 range with Grade 5 ceramic (Silicon Nitride - Si3n4) balls found in Zero Ceramic bearings. This combination creates a lighter, more efficient and more affordable ceramic bearing, perfect for use in hubs or bottom brackets. The low contact LLB seals provide protection from water or dirt ingress, but without causing any friction or drag.

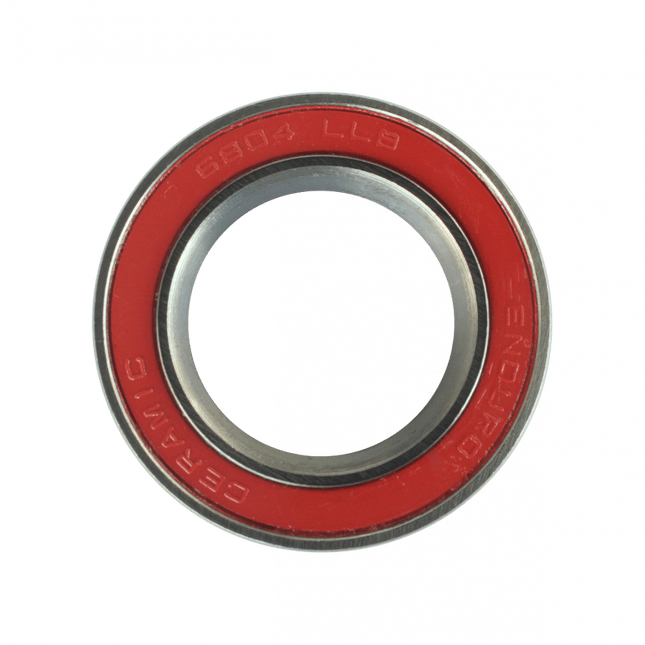

Bearing Code: 6804
Dimensions: 20mm x 32mm x 7mm
ABEC: 5
Grade: 5
Seals: LLB
Grease: Kyodo Yushi PS-2
Application: Hubs, Bottom Brackets
Weight: 15.54g
