Description

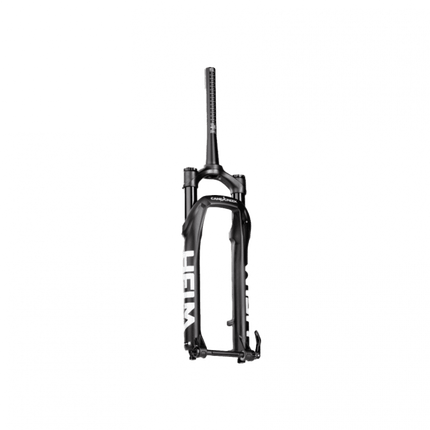

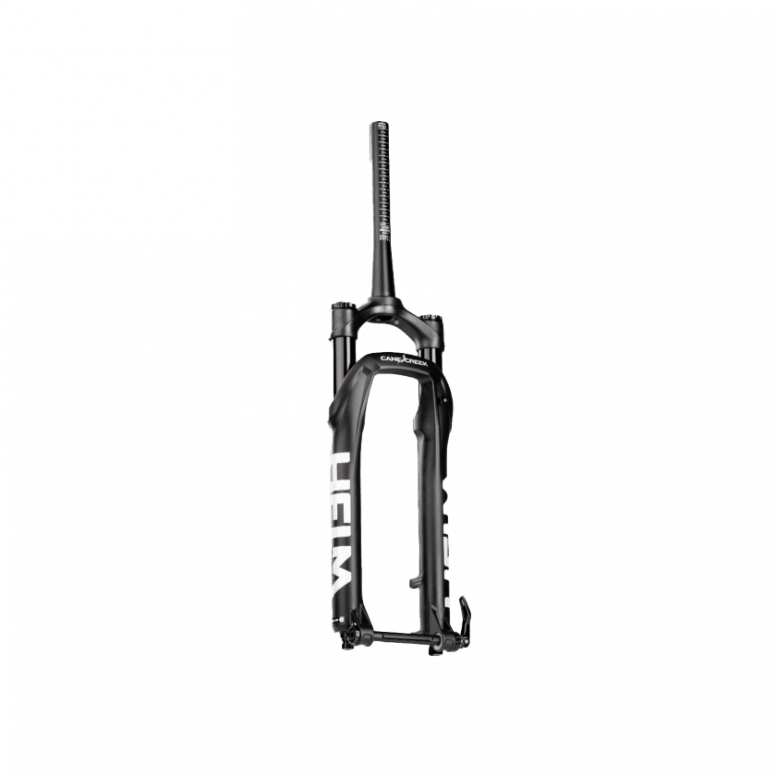

The versatility of the Cane Creek HELM continues with the new HELM DJ.

Built by us - Built for us. The new Cane Creek HELM DJ combines

the proven performance, reliability and strength of the HELM MKII’s chassis with a new short travel air spring optimized for Dirt Jumps,

Dual Slalom and Street riding.Taking Excellence to Another Level!

With the HELM MKII we re-examined every aspect of the fork’s internal design. From new SKF wiper seals, to lighter weight damper fluid, to a redesigned air spring - we tweaked and tuned and improved the HELM, all in the name of reducing friction as the fork moves through its travel. The result is the smoothest and most supple fork Cane Creek has ever made, all while providing the same incredible support and stability of the original HELM.

Helm MKII Highlights:

• Redesigned Air Spring - New friction reducing air piston material and a threadless air seal head for  ease of maintenance
• SKF Wiper Seals -  Reduced friction over previous seals
• Updated Damper - Lighter compression tune to increase sensitivity, 2.5wt Motorex damper oil with 11% lighter viscosity and new SKF oil seal head to reduce friction.

Helm MKII DJ Features:

• Weight: 2140g
• Wheel Size: 27.5” and 26” The HELM DJ is travel adjustable to accommodate different axle to crown frame requirements
• Damping: High Speed Compression - 10 Positions, Low Speed Compression - 17 positions, Low Speed Rebound - 10 positions
• Optimised Air Spring - Helm DJ preset volume setting, independent positive and negative air spring
• Stanchion diameter: 35mm
• Travel: Factory preset at 90mm, indexed travel adjust system capable up to 170mm
• Max Tyre Size: 65mm wide by 714mm tall
• Axle: "D-Loc" 15mm thru axle system
• Spacing: 15mm x 110 BOOST spacing
• Offset: 44mm
• Colour: Matte Black

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
