Description

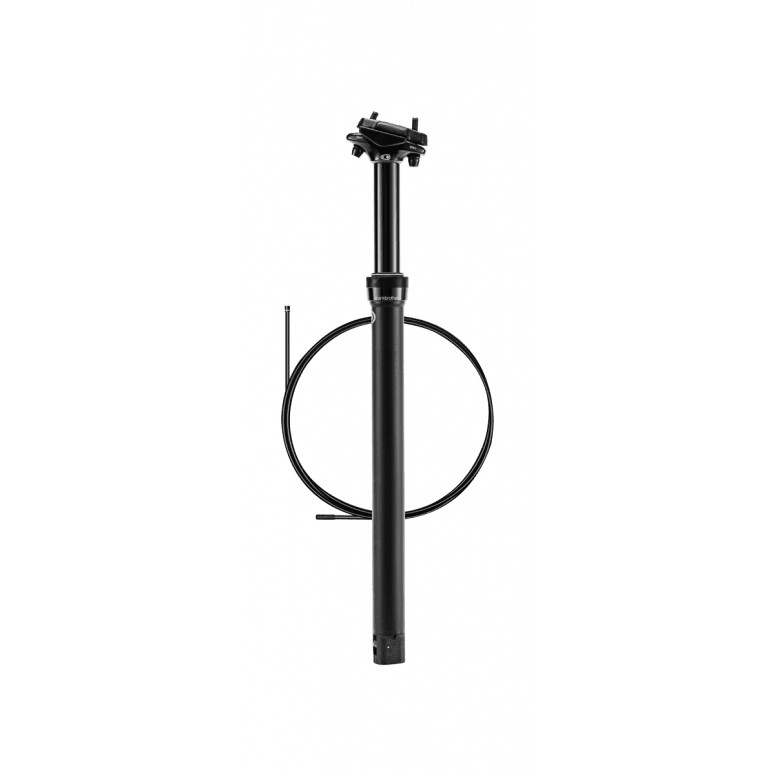

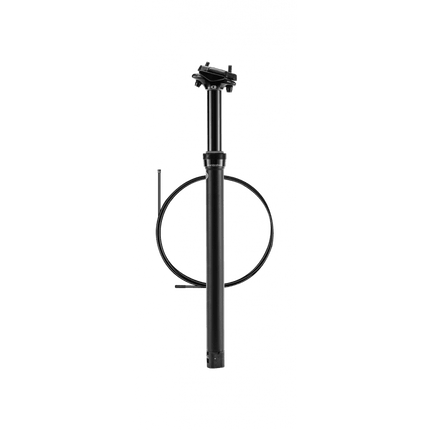

The all-new Highline XC/Gravel delivers infinite adjustment, smooth feel, and easy installation.

• 27.2mm seatpost diameter to fit most XC and gravel bikes
• Jagwire® cable and housing
• Self-contained IFP hydraulic cartridge
• Internal routing
• Quick connect mechanism for ease of cable installation
• Linear actuator for quick return speed
• 2-bolt standard head

Specifications

• Material: 7075-T6 aluminium
• Setback: 0
• Minimum stack height: 60mm
• Warranty 4 years

Specs 60mm;

• Max extended length: 260mm
• Max insertion length: 264mm
• Total post length: 387mm
• Weight: 410g (27.2)

Specs 80mm;

• Max extended length: 280mm
• Max insertion length: 264mm
• Total post length: 407mm
• Weight: 434g (27.2)

Specs 100mm;

• Max extended length: 300mm
• Max insertion length: 264mm
• Total post length: 427mm
• Weight: 459g (27.2)

Specs 125mm;

• Max extended length: 325mm
• Max insertion length: 264mm
• Total post length: 452mm
• Weight: 467g (27.2)

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
