Description

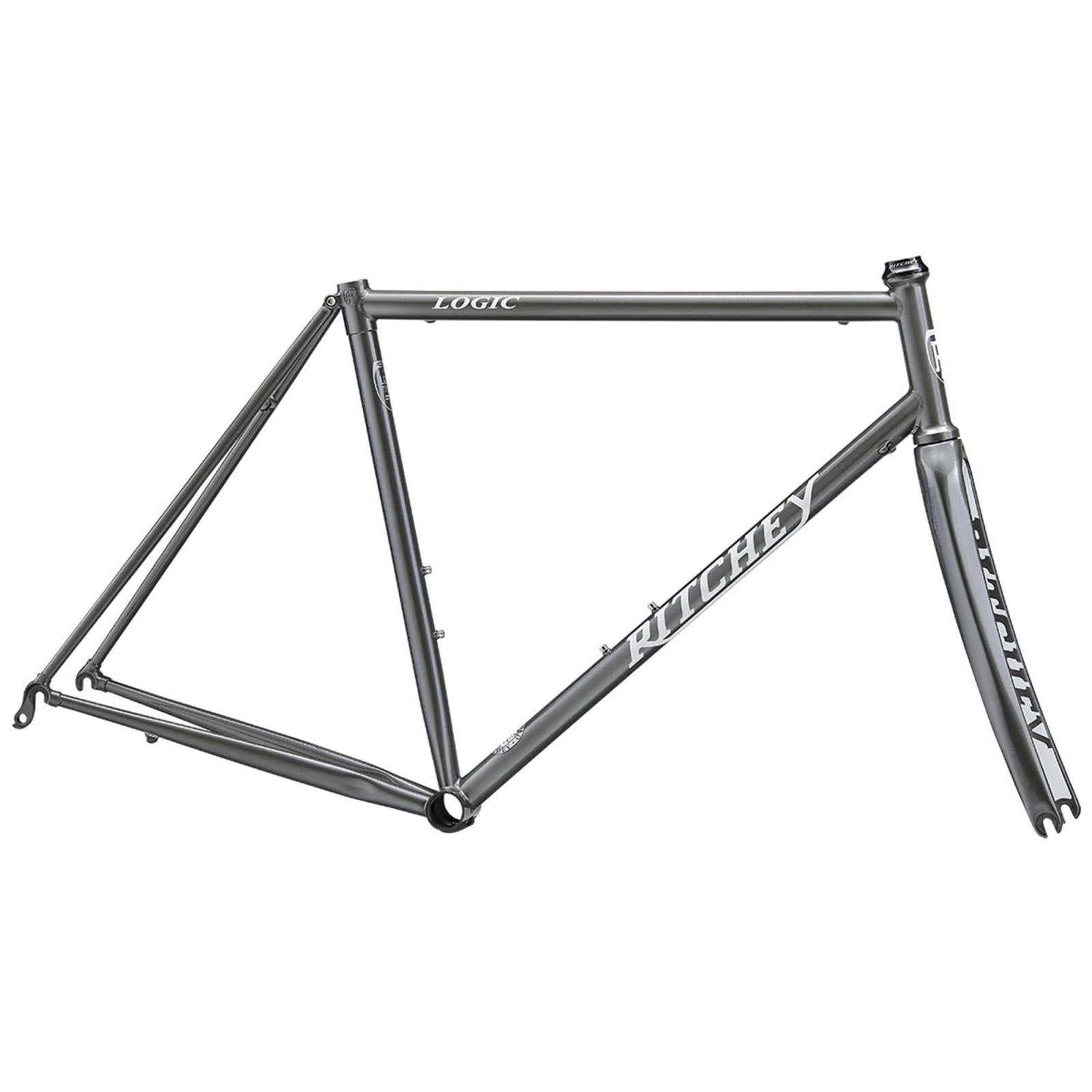

The Road Logic offers a riding experience that's steeped with more than 50 years of life experiences, framebuilding heritage, innovation and exploration. The beauty of its classic lines unites with modern building techniques and proven materials to deliver a contemporary bicycle that's remarkably comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement.

Tom Ritchey's frame building experience started in the 1970s when he built his first road frame in his parent's garage in northern California. Since then, Tom has continued to explore, experience and innovate in ways that define the craft. The Road Logic is the result of Tom's expanding legacy, his prodigious experience with steel, and mastery of the subtleties and details gleaned from his tenure in the art of creating bicycles.

A true modern classic, Tom designed a heat-treated and triple-butted Ritchey Logic tubeset for the Road Logic, featuring aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality. Ritchey’s proprietary forged-and-machined integrated headtube uses standard drop-in bearings and saves 80 grams over a standard head tube design.

Wrapped in a delicious Anthracite coat of paint, the Road Logic also features spacing for up to 30c tires and a Ritchey Carbon Fork that will ensure a lifetime of enjoyable pedal turns.

Frame

• Material heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
• Ultra-light forged and machined straight 1-1/8" headtube
• Electrophoretic Deposition (ED Coat) treated for corrosion resistance
• Seat tube clamp size28.6mm (2.5Nm max for derailleur clamps and chain guides)
• 27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
• Bottom bracket68mm - English threaded
• Crankset min/max ring size46/30t to 53/39t
• Chainline 49mm
• Bottle cage mounts 2
• Standard Quick Release front and rear
• External cable routing
• WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

Fork

• Ritchey WCS Carbon Road Fork included
• 1-1/8" straight steerer with integrated 45-degree crown race
• Steerer length300mm
• Axle-crown 371mm
• Rake/Offset 46mm (sizes 49/51/53cm) – 43mm (sizes 55/57/59cm)
• 30mm maximum spacers below stem
• Wheel and tire compatibility 700 x 30c tire clearance (depending on tire/rim manufacturer)
• Frame spacing 38mm
• Fork spacing 40mm

Details

• Sizes 49 / 51 / 53 / 55 / 57 / 59cm
• Frame weight 1,750g (size 55)
• Fork weight 350g (uncut steerer)
• Colour Anthracite
