Description

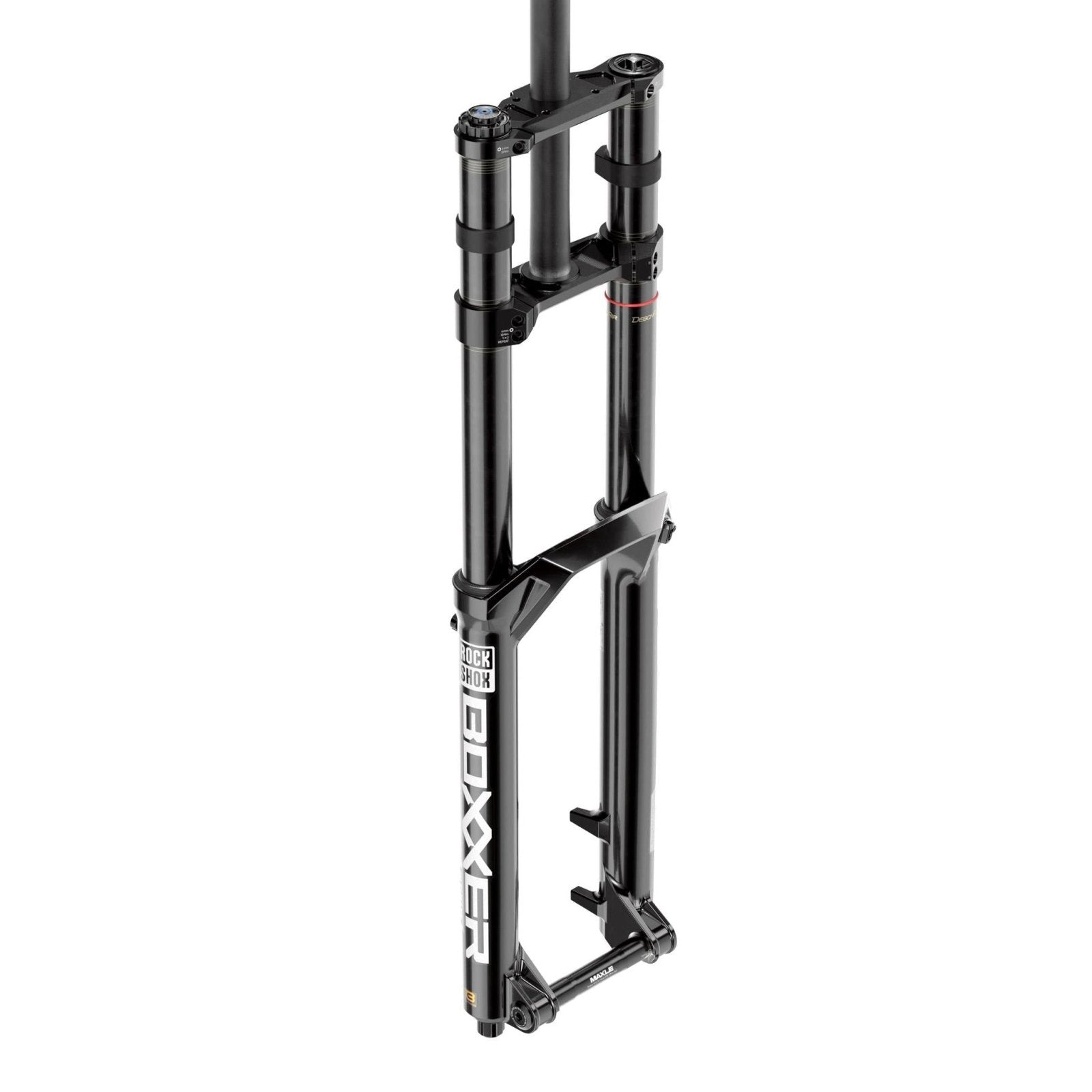

Redesigned by the world’s fastest racers, for the world’s fastest racers, you want BoXXer in your corner. The all-new 38mm chassis is equipped with the DebonAir+ twin tube air spring that will have you thinking it’s a coil. Paired with a Charger 3 damper tuned for downhill speed, BoXXer Ultimate takes you straight to the top step of the podium.

FEATURES

• NEW 38mm chassis designed to meet the needs of the world’s fastest racers with balanced stiffness and ride quality.
• NEW DebonAir+ twin tube air spring strikes the perfect balance between butter-smooth small bump feel, added support throughout the travel, and taller ride height for confidence when things get steep.
• NEW Signature colorway BoXXer Electric Red with an all-new graphics package.
• NEW RockShox premium fender compatibility (RockShox Bolt-On Fender included with purchase)
• NEW Titanium crown bolts to make BoXXer Ultimate even more premium.
• NEW Lightweight machined and anodized crown for premium looks and durability.
• Short and tall crown options available to accommodate different head tube lengths.
• Charger 3 damper tuned for BoXXer’s updated chassis and spring. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is meaningful and exact. This allows the rider to tune to perfection with every click.
• ButterCups block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue, leaving you feeling fresh with more control.
• Ultra-low-friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel.
• Maxima Plush damping fluid reduces friction and silences damper noise.
• Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.

SPECIFICATIONS
Model designator (SF): Ultimate
Wheel size: 27.5"
Travel (mm): 200mm
Damper Type: Charger 3 RC2 W/ButterCups
Fork offset: 48mm & 44mm (27.5")
Maxle included: Maxle Stealth
Color (FS): BoXXer Electric Red - Gloss, Gloss Black
E-Bike Approved: E-bike Approved
Steerer: 1-1/8" Aluminum
Axle: 20x110mm BOOST™
Axle to Crown (mm): 586
Brake type (FD): Disc
Crown Material: Forged, 6061 T-6 aluminum, direct mount stem compatible
Upper crown type: Short/Tall
Lower leg type: Magnesium
Upper Tube Finish: Fast Black
Upper tube type: 38mm aluminum
Damper adjust: Crown
Damping adjustments: Extl begin stroke rebnd, low speed comp, high speed comp
Volume reducer: 0/6 Tokens
Spring: DebonAir+ W/ButterCups
Spring rate: n/a
Max Tire Diameter (mm): 732
Max Tire Width (mm): 81
Maximum Rotor Size: 220mm
Minimum Rotor Size: 200mm
Fender Compatibility: Bolt On - Short
Crown OD (mm): 42
