Description

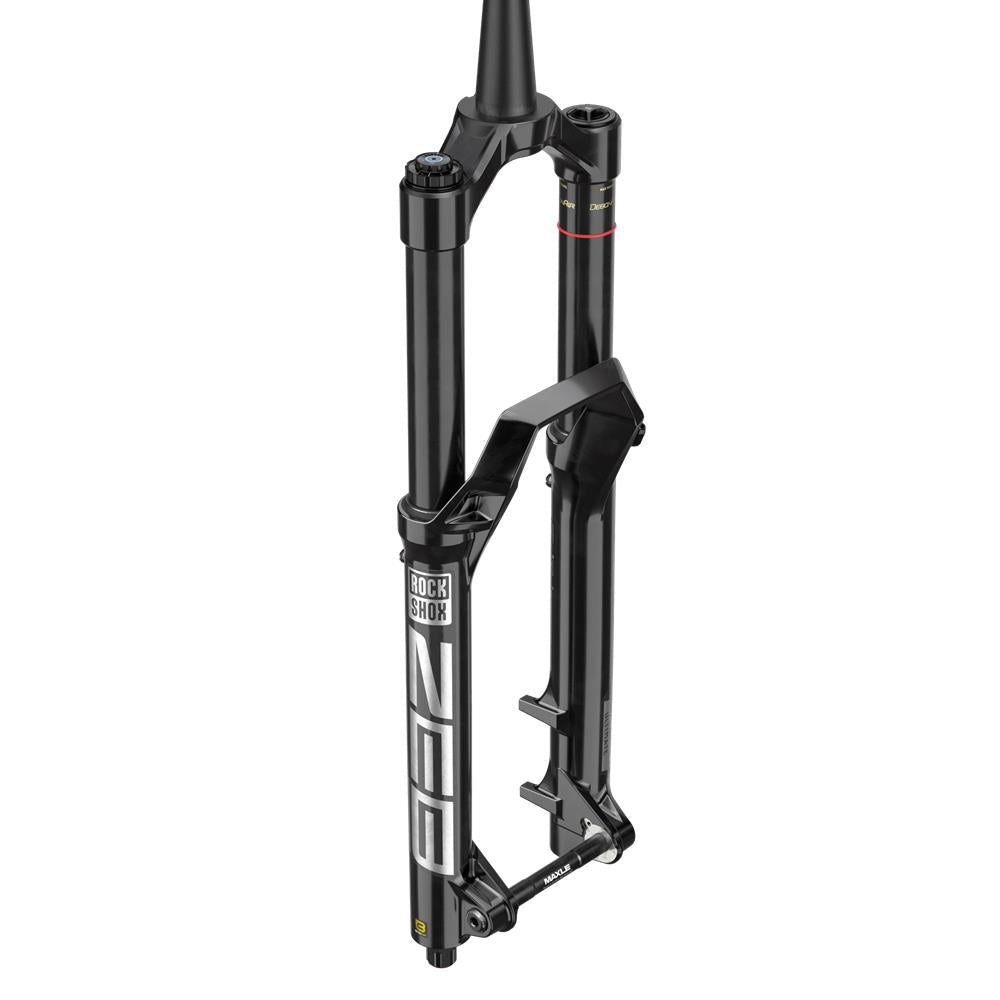

Long on travel, short on excuses, ZEB Ultimate is a whole new breed of fork designed to challenge the limits and take on the world’s toughest enduro tracks. An updated stiff 38mm chassis includes the new Charger 3 RC2 damper with vibration-killing ButterCup technology. Our highest performing, athlete-proven technologies matched with premium style plays. This is ZEB.?

FEATURES

• 38mm chassis for increased stiffness and rider confidence on every critical line.
• Already proving itself on the podium with multiple wins during the 2021 season, Charger 3 is ready to meet the masses. Charger 3 features an all-new Internal Floating Piston (IFP) design that offers more consistency through the stroke, and truly independent adjustments that reduce harshness and increase control without any “cross-talk”. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is exact and meaningful. Dial in your perfect ride experience without a second guess. No sacrifices and no hesitation. This is Charger 3.
• ButterCups block 20% of high frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
• DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
• Ultimate Bushing Package maximizes bushing overlap, reducing friction and creating the smoothest ride possible.
• Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
• Bolt-in torque cap adapters now included for use with standard hub end caps.
• Lightweight machined and anodized crown for premium looks and durability.
• Available in the Signature colorway Slab Grey or Ultimate High Gloss Black.
• Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
• RockShox premium short fender compatibility.
• Maxima Plush damping fluid reduces friction and silences damper noise.

SPECIFICATIONS
Model designator (SF): Ultimate
Wheel size: 27.5"
Damper Type: Charger 3 RC2 W/ButterCup
Fork offset: 44mm (27.5")
Maxle included: Maxle Stealth
E-Bike Approved: E-bike Approved
Steerer: 1.5" Tapered
Axle: 15x110mm BOOST™
Axle to Crown (mm): 587
Brake type (FD): Disc
Crown Material: Forged, hollow aluminum
Upper crown type: n/a
Lower leg type: Pressure Relief Valve
Upper Tube Finish: Fast Black
Upper tube type: 38mm aluminum
Damper adjust: Crown
Damping adjustments: Extl begin stroke rebnd, low speed comp, high speed comp
Volume reducer: 0/4 Tokens
Spring: DebonAir W/ButterCup
Spring rate: n/a
Max Tire Diameter (mm): 732
Max Tire Width (mm): 81
Maximum Rotor Size: 220mm
Minimum Rotor Size: 200mm
Fender Compatibility: Short, 3 point mount
Crown OD (mm): 59
