Description

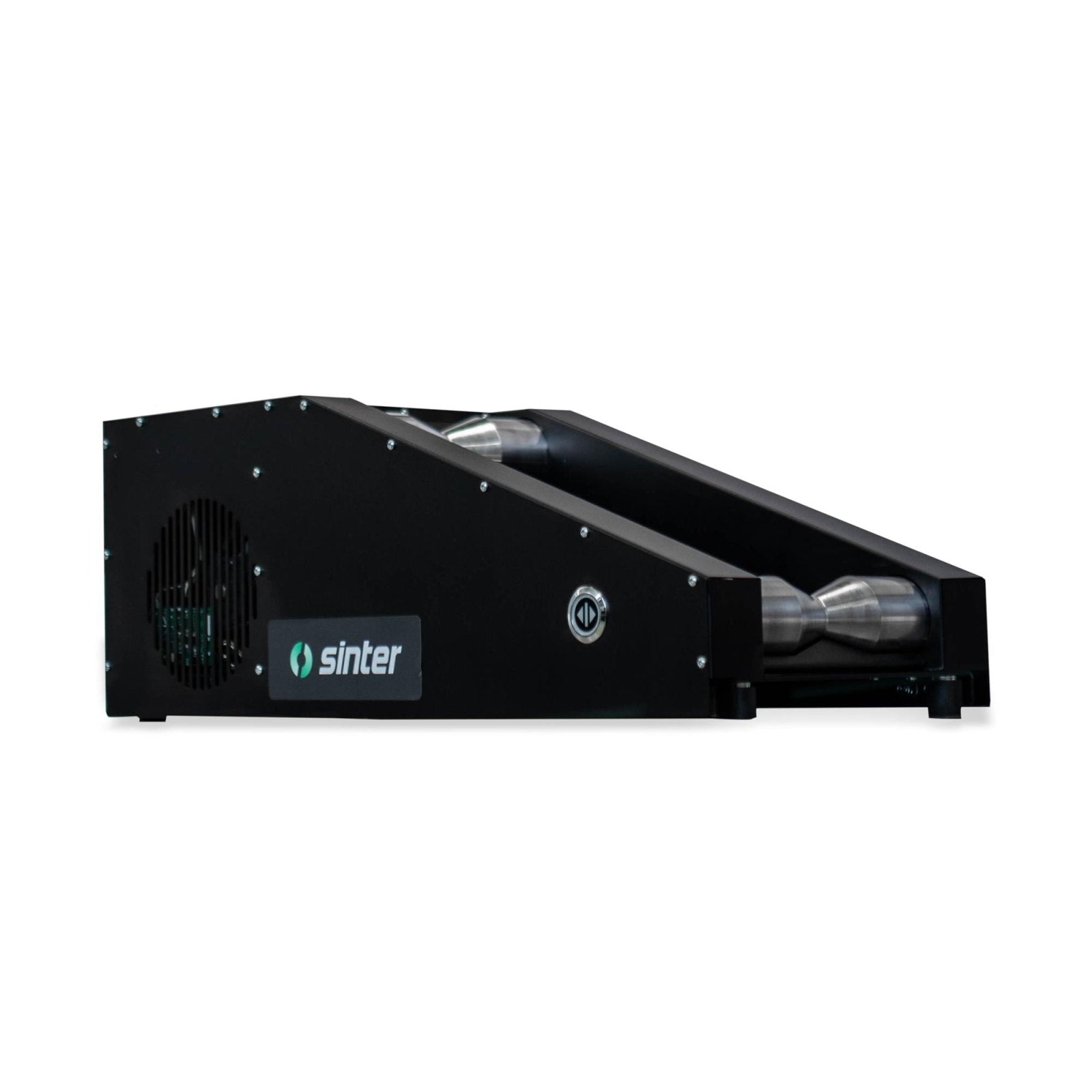

The Sinter Smart Brake Pad Bedding Machine revolutionises workshop efficiency by automating one of the most time-consuming tasks in bike assembly and service. It delivers a precise, repeatable bedding process in minutes—removing the need for outdoor test rides or manual brake burn-in. Each setup leaves the stand fully bedded, quiet, and performance-ready, allowing technicians to build, service, and deliver more bikes per day with consistent, professional results.

Features
• Rapid automated bedding process cuts manual labour time dramatically
• Dual Drive V-Form aluminium rollers for secure traction across all wheel sizes
• Compatible with 20”–29” wheels and 1.0”–3.0” tyres, including e-bikes
• Touchless foot sensor enables instant front/rear wheel switching mid-workflow
• Step-by-step guided operation ensures accuracy and uniform results
• Real-time interface showing brake force, timer, and cool-down progress
• Start/stop automation with selectable modes (A/B/C) for system and rotor type
• USB port for firmware updates, keeping the unit workshop-current

Specifications
Generated Speed: 24 km/h (tyre dependent)
Rollers: Dual-drive aluminium V-shape
Wheel Sizes: 20”–29”
Tyre Widths: 1.0”–3.0”
Power Options: 220 V / 110 V
Controls: Touchless foot sensor or manual switch
Width: 270 mm
Height: 250 mm
Length: 690 mm
Weight: 22.8 kg

Key Benefits
Dual Drive V-Form Aluminium Rollers
The custom V-shape roller system provides positive traction on tyres of all sizes while securely holding the wheel in place during braking. Compatible with everything from 20” to 29” wheels and tyre widths between 1.0” and 3.0”, it handles any bike you throw at it—from lightweight road builds to wide-tyre e-MTBs.

Touchless Direction Change
Switch between front and rear wheel operation with a simple wave of your foot past the touchless sensor—no fumbling with controls mid-process. Prefer buttons? The control panel offers manual switching too, keeping your workflow smooth and intuitive.

Failsafe Step-by-Step Process
Ease of use is built in. The Bedding Machine walks your technician through each bedding step, ensuring consistency and safety every time. The user interface displays real-time feedback, including brake force, remaining time, and cooling intervals—making even first-time users confident in the process.

Faster Bike Assembly & Service Turnaround
Fully bedding pads now takes just a few minutes, even in rain, snow, or extreme heat. That means more bikes built or serviced per day, less time spent outdoors trying to bed brakes, and a higher-quality finish with every build. It also frees up staff to focus on other tasks—improving workshop productivity overall.

SPECIFICATIONS
Generated speed: 24km/h (tyre dependent)
Rollers: V-shape dual drive aluminium, accepts all tyre types
Wheel sizes: 20” to 29”
Tyre widths: 1.0” to 3.0”
Power options: 220v or 110v models
Control: Touchless foot sensor or top-panel switch

DIMENSIONS
Width: 270mm
Height: 250mm
Length: 690mm
Weight: 22.8kg
