Description

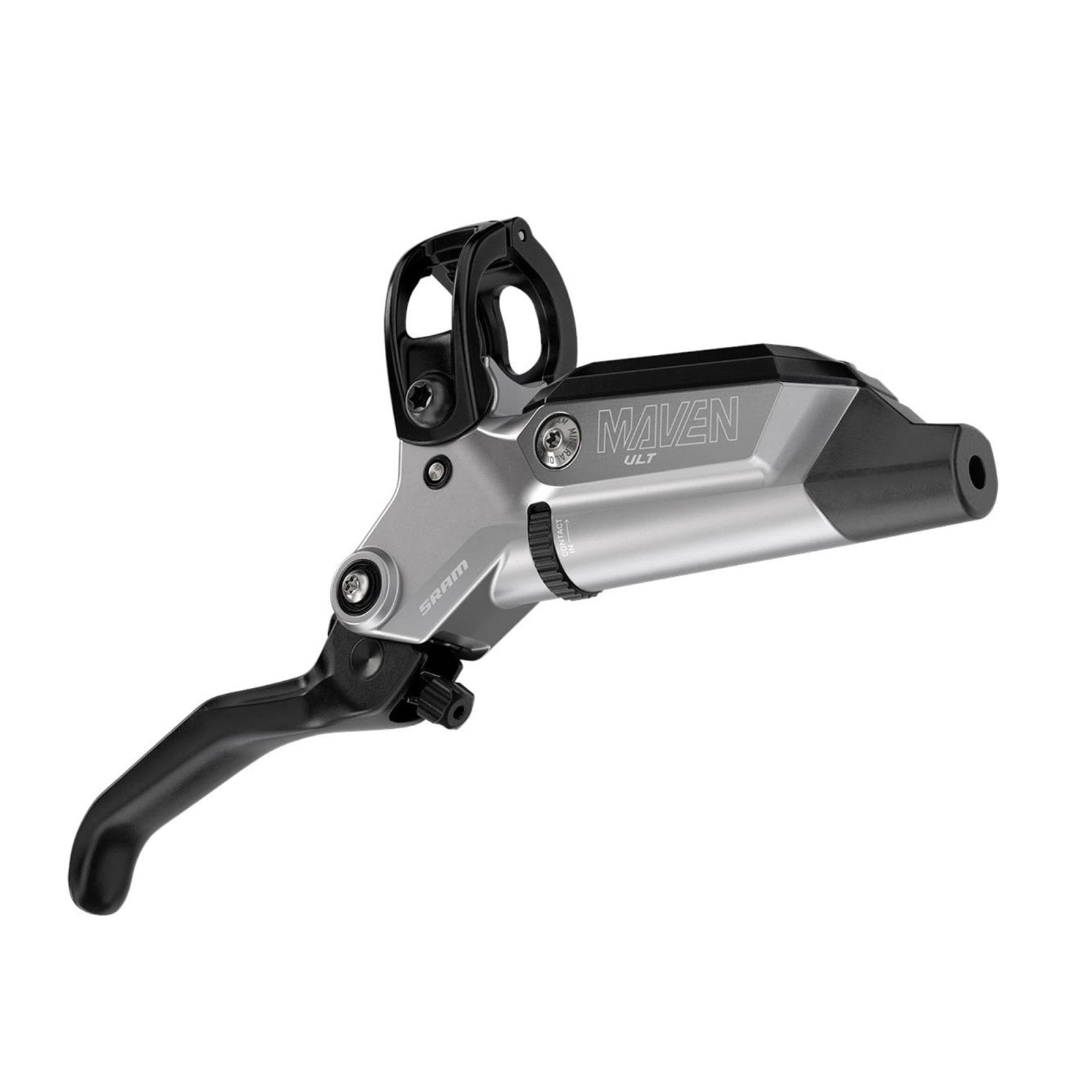

Modern mountain bikes have redefined what riders are capable of, pushing the requirements for heavy-duty power further than ever before. Maven Ultimate is our answer to that evolution, with monstrous 18 and 19.5-millimeter pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. Swinglink translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. But with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Ultimate pairs a sleek high polish lever body to a caliper with machined edges and titanium hardware for a finish worthy of any modern super bike. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust. Maven is the expert, but Maven Ultimate is the pinnacle.

FEATURES

• 18 and 19.5-millimeter pistons for best-in-class power.
• Swinglink for signature SRAM lever feel.
• Stiff 4-piston caliper with best heat management and easier bolt access.
• Organic pads come standard for the best modulation and the quietest ride.
• Stealth lever architecture for a sleeker, more modern ride.
• Mineral Oil for low maintenance and performance.
• Designed for use with Maxima Mineral Brake Oil only.
• Ultimate worthy polished Lever body and Titanium hardware.
• Contact Point Adjust and tool-free Reach Adjust.

SPECIFICATIONS

Application (DB) MTB
Brake type Hydraulic
Blade material Aluminum
Contact adjust Yes
Colour (DB) Clear Anodized
Rec MMX clamp (not included) MMX clamp, black, stainless
Orientation Front/Rear
Pad type (Disc) Steel-backed organic
Bracket (Disc Brake) Direct mount DIR
Hose length (mm) 950mm/2000mm
Reach adjust Tool-free
Rec discrete clamp (not included) U-Clamp - Stainless - black
Pistons 4
Piston material Phenolic Plastic
Hose routing angle Stealth Lever - Adj Caliper
Caliper body material Forged Aluminum
Caliper hardware Steel
Caliper construction 2-piece
Hydraulic fluid SRAM Mineral Oil
Lever pivot Bearing
Lever body material Forged Aluminum
Rotor type recommended 1-piece HS2
Clamp Included (DB) Yes – MMX Clamp
Caliper Bleed Port Bleeding Edge

Requires use of Maxima Mineral Oil brake fluid (MAX8030000/MAX8030001)
