Description

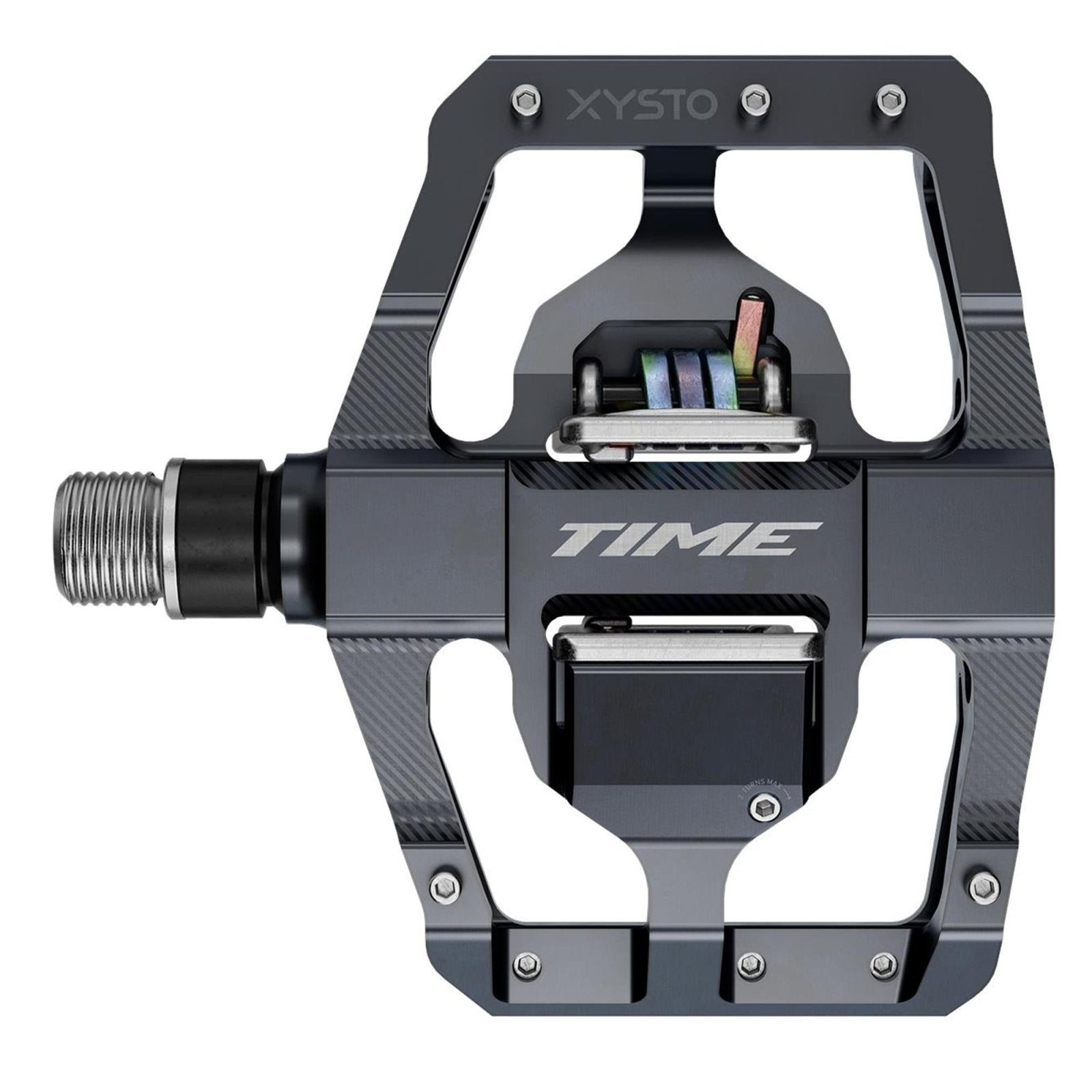

TIME XYSTO is a robust full-bodied pedal system for DH, Enduro, and aggressive off-road riders. The asymmetrical design fits the natural shape of your sole, with the extra-large platform providing additional support and control. TIME’s proven ATAC technology provides easy entry, retention, and mud clearance.

Features

• Extra-large 79x94mm platform provides additional support and control
• Asymmetrical design fits the natural shape of your sole
• Customizable grip pin placement
• Adjustable release tension
• ATAC design clears mud and debris every time you clip in
• Easy engagement and performance in all conditions
• Dark Grey alloy anodized platform
• 57mm spindle length
• 226g per pedal
• 13/17° cleats included with pedals
• Made in-house in Coimbra, Portugal

Specifications
Axle component Steel axle
Bearings Steel
Body component 6106 T6 - Aluminum
Cleats ATAC cleats
Pedal stack height 18.3mm
Angular freedom 5° to -5° with free cleats, 0° with fixed cleats
Distance pedal spindle / crank arm 57mm
Lateral freedom 2.5 mm or -2.5 mm
Release angle 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension Micro adjustment
Threading 9/16 - 20 inch
Colour (Pedal )Dark Grey
Accessories ATAC CLEATS AND 20 GRIP SCREWS
Intended use Gravity
Power Measurement Not Compatible
Weight (per pedal) 226g
