Description

FIT, FORM, FUNCTION

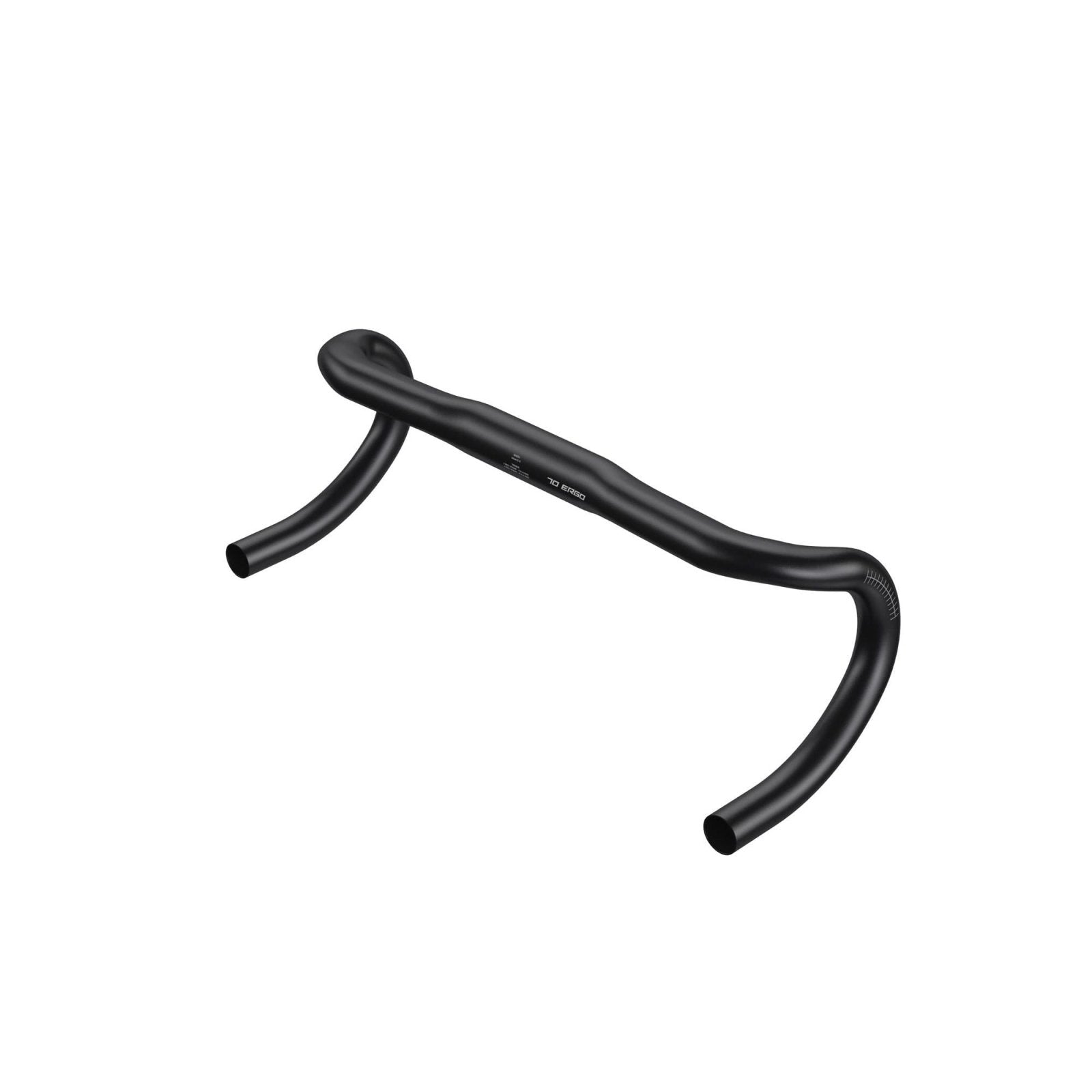

The Service Course-70 Ergo packs a powerful punch of everything you’d want in a bar – a design based on feedback from pro bike fitters and pro riders, an ergonomic top section, and a price you’ll love. The bar features a contoured top for a natural ergonomic grip on the bar tops for all-day comfort. The Service Course-70 Ergo’s specially tuned drop shape creates comfortable hand positions with the short reach to control levers vital for race situations. The bar’s 70mm reach (the horizontal distance from the bar’s stem clamp area to the centre of the brake perch) is the shortest of Zipp’s Service Course line-up. Its 128mm drop (vertical distance from the bar’s stem clamp area to the bottom of the drops) places the rider low and in control without compromising comfort.

FEATURES

• 6061 aluminium for light weight and durability
• 70mm reach and 128mm drop for a short-low position
• Flattened top shape to better fit the hand
• Clip-on Compatible

SPECIFICATIONS
Material (HB): AL-6061
Reach (HB): 70mm
Drop (HB): 128mm
Width (centre-to-centre): 38cm, 40cm, 42cm, 44cm
Clip compatible: Yes, except 38cm
Clamp diam: 31.8mm
Ramp angle: 10°
Outsweep: 4°
Backsweep (degrees): 3
Drop shape: Variable
Clamp width: 110mm, 70mm, 90mm
Finish (HB): Bead Blast Black
Drop Flare: n/a

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
