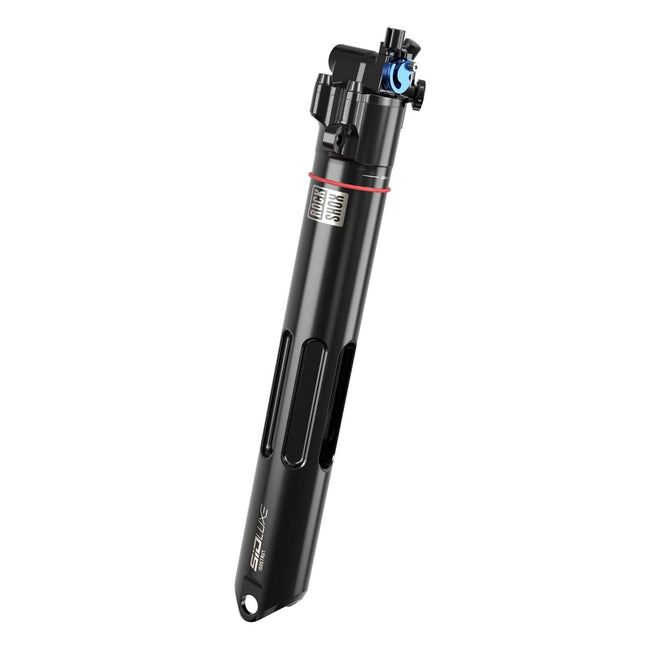

RockShox: SIDLuxe IsoStrut Rear ShockThe all-new SIDLuxe IsoStrut is a frame-integrated rear shock built specifically for the Trek Supercaliber. By designing the rear suspension as a complete system, it preserves the bike’s structural integrity and stiffness while reducing weight through a simplified pivot layout. SIDLuxe IsoStrut offers two compression settings—Open and a rock-solid Lock—delivering 80mm of race-tuned suspension performance made to conquer the toughest XC tracks.Features
Frame-integrated IsoStrut design preserves stiffness and saves weight
Engineered in collaboration with Trek for the Supercaliber platform
Two-position compression damping: Open and Lock
80mm of race-tuned suspension travel
Lightweight design focused on cross-country racing
Fewer pivots compared to traditional full-suspension systems
SPECIFICATIONSEye to eye / Stroke: 239x40Damper Type: RLRRebound Tune: R81Compression Tune: C27Lockout Force: X6Body Eyelet: No BushingE-Bike Approved: E-bike Approved
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A two-position damping system features Open, and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 190x40Air volume: Solo AirRemote: TwistLoc/OneLoc 2 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: n/aLockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 2 pos remote comp (open/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325Part Weight (g): 227
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A two-position damping system features Open, and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 185x47.5(TR)Air volume: DebonAirRemote: TwistLoc/OneLoc 2 pos remote sold separatelyHose length/Cable Exit: In PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: n/aLockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: TrunnionBody Eyelet: StandardDamping adjustments: Extl rebnd, 2 pos remote comp (open/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325Part Weight (g): 227
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A two-position damping system features Open, and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 190x45Air volume: DebonAirRemote: TwistLoc/OneLoc 2 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C33Pedal tune: n/aLockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: BShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 2 pos remote comp (open/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325Part Weight (g): 227
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A two-position damping system features Open, and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR)Air volume: Solo AirRemote: TwistLoc/OneLoc 2 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: n/aLockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: TrunnionBody Eyelet: StandardDamping adjustments: Extl rebnd, 2 pos remote comp (open/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A two-position damping system features Open, and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 170x27.5, 170x30, 170x32.5, 170x35, 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50Air volume: Solo AirRemote: TwistLoc/OneLoc 2 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: n/aLockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 2 pos remote comp (open/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Blistering sprints, chunky descents, and high-speed singletrack—SIDLuxe Ultimate is built for this. Its two-position (2P) XC damping gives you a rock-solid Lock position for starts and sprints as well as an Open position with lighter compression damping for punishing downhills. SIDLuxe is the only super-light rear shock that can go toe to toe with your favorite SID fork.
NEW High speed compression damping blow-off for Open position.
NEW Ultimate graphics package includes the decal option in our new signature Blue Crush colourway.
Super-light XC-focused design delivers premium performance and efficiency.
Dial in the perfect feel with multiple Open and Lock compression tunes available. Designed to complement the feel of the SID and SID SL 2P suspension forks.
Compatible with TwistLoc and OneLoc remotes.
Four damper options to accommodate all bikes: lever adjust, remote in, remote out, backside remote.
Eye to eye / Stroke 190x45Air volume Solo AirRemoteTwistLoc 3 pos remote sold separatelyHose length/Cable Exit Out PullModel designator (SR)UltimateDamper TypeRLRRebound tuneR29Compression tune C25Pedal tune MDLockout force X8Colour (Shock body) BlackColour (Decal) BlueDecal orientation AShaft Eyelet StandardBody Eyelet No Bushing - 90 Deg RotationDamping adjustments Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer0 Tokens – No Eyelet Volume SpacerCheck Tune STDE-Bike Approved YesRebound Clicks 11Max Air Pressure (PSI) 325

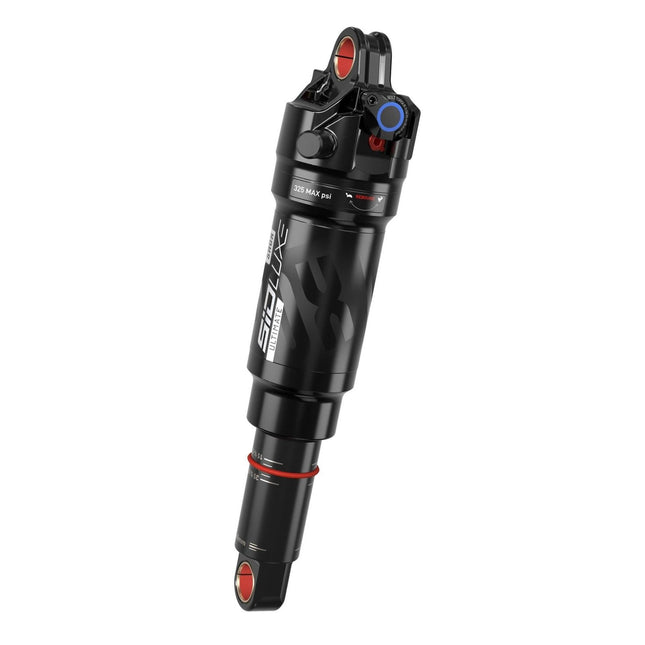

RockShox: Blistering sprints, chunky descents, and high-speed singletrack — SIDLuxe Ultimate is built for this. Its new three-position (3P) XC damping gives you efficiency when you want it and travel when you need it with Open, Pedal, and Lock positions. SIDLuxe is the only super-light rear shock that can go toe to toe with your favorite SID fork.FEATURES
NEW Three-position damping system: Open, Pedal, and Lock.
NEW High speed compression damping blow-off for Open and Pedal positions.
NEW Ultimate graphics package includes the decal option in our new signature Blue Crush colorway.
Super-light XC design delivers premium performance and efficiency.
Dial in the perfect feel with multiple Open, Pedal, and Lock compression tunes available.
Designed to complement the feel of the SID and SID SL 3P suspension forks.
Compatible with the latest TwistLoc Ultimate remote.
Four damper control options to accommodate all bikes: lever adjust, remote in, remote out, backside remote.
SPECIFICATIONS
Eye to eye / Stroke 190x40
Air volume Solo Air
Remote TwistLoc 3 pos remote sold separately
Hose length/Cable Exit Out Pull
Model designator (SR) Ultimate
Damper Type RLR
Rebound tune R29
Compression tune C25
Pedal tune MD
Lockout force X8
Colour (Shock body )Black
Colour (Decal) Blue
Decal orientation A
Shaft Eyelet Standard
Body Eyelet No Bushing - 90 Deg Rotation
Damping adjustments Extl rebnd, 3 pos remote (open/pedal/lock)
Volume reducer 0 Tokens – No Eyelet Volume Spacer
Check Tune STD
E-Bike Approved E-bike Approved
Rebound Clicks 11
Max Air Pressure (PSI) 325

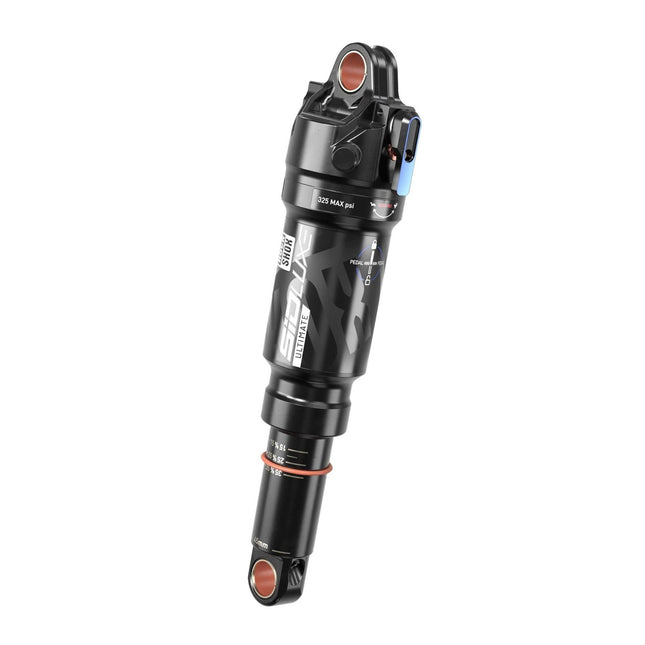

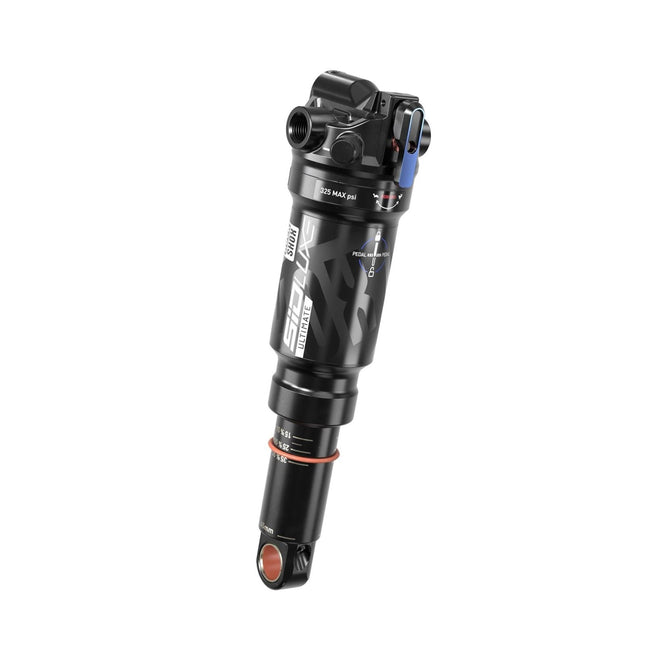

RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 190x45Air volume: Solo AirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R57Compression tune: C30Pedal tune: M2Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 190x42.5Air volume: Solo AirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R57Compression tune: C30Pedal tune: M2Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 185x50(TR)Air volume: DebonAirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: In PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: TrunnionBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 185x47.5(TR)Air volume: DebonAirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: In PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: TrunnionBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 210x50Air volume: Solo AirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R81Compression tune: C27Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: No Bushing - 90 Deg RotationDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 0 TokensCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 190x45Air volume: Solo AirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: Back Side Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C27Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: Standard - 90 Deg RotationDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 0 TokensCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR)Air volume: Solo AirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: TrunnionBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 170x27.5, 170x30, 170x32.5, 170x35, 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50Air volume: Solo AirRemote: TwistLoc 3 pos remote sold separatelyHose length/Cable Exit: Out PullModel designator (SR): UltimateDamper Type: RLRRebound tune: R85Compression tune: C30Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 190x45Air volume: Solo AirRemote: n/aHose length/Cable Exit: n/aModel designator (SR): UltimateDamper Type: RLRebound tune: R85Compression tune: C30Pedal tune: M2Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: No BushingDamping adjustments: Extl rebnd, 3 pos comp (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 170x35Air volume: Solo AirRemote: n/aHose length/Cable Exit: n/aModel designator (SR): UltimateDamper Type: RLRebound tune: R85Compression tune: C30Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos comp (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325Part Weight (g): 227
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR)Air volume: Solo AirRemote: n/aHose length/Cable Exit: n/aModel designator (SR): UltimateDamper Type: RLRebound tune: R85Compression tune: C30Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos comp (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325
RockShox: Smooth out the path to the podium when you pair SID with SIDLuxe Ultimate. A new three-position damping system features Open, Pedal and rock-solid Lockout positions for the ultimate efficiency when putting the power down. Only the necessities in this lightweight package with minimal high-speed compression and maximum leg burning speed. SPECIFICATIONSEye to eye / Stroke: 170x27.5, 170x30, 170x32.5, 170x35, 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50Air volume: Solo AirRemote: n/aHose length/Cable Exit: n/aModel designator (SR): UltimateDamper Type: RLRebound tune: R85Compression tune: C30Pedal tune: M8Lockout force: X8Color (Shock body): BlackColor (Decal): BlackDecal orientation: AShaft Eyelet: StandardBody Eyelet: StandardDamping adjustments: Extl rebnd, 3 pos comp (open/pedal/lock)Volume reducer: 1 TokenCheck Tune: STDE-Bike Approved: E-bike ApprovedRebound Clicks: 11Max Air Pressure (PSI): 325

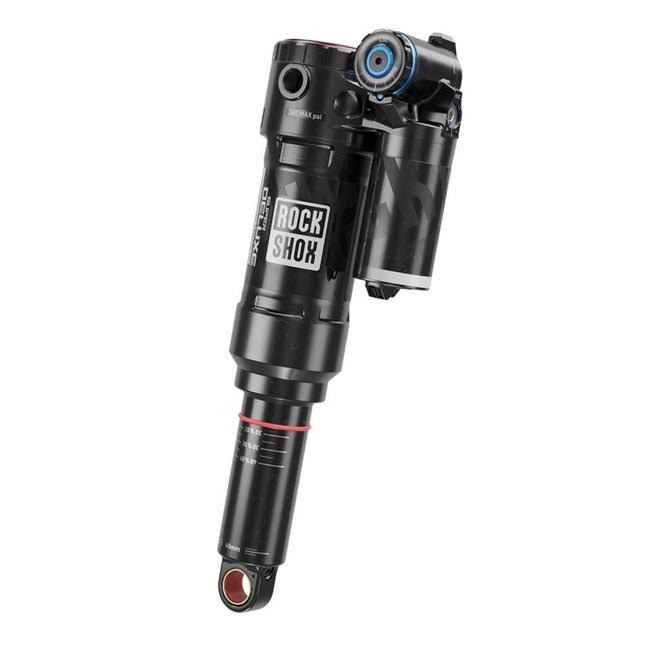

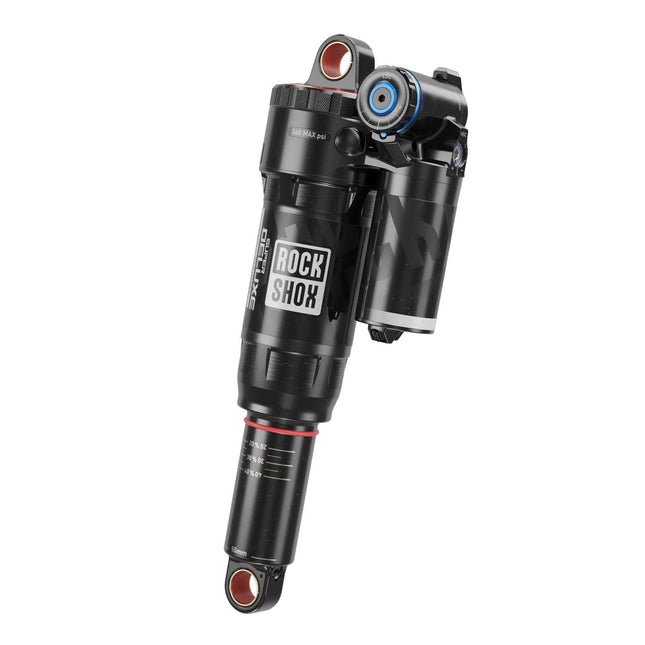

RockShox: Give your all-day trail bike the firepower it needs for rugged terrain, plus the efficiency to climb back up for more. Super Deluxe Ultimate is a race-proven, award-winning rear shock that keeps getting better. The latest generation has decreased High-Speed Compression damping to devour the downhills. The proven RC2T damper contains an arsenal of suspension tuning settings for any rider or trail. Independently adjust High and Low Speed Compression or reach for the Threshold lever if you need pedaling efficiency. Pure all-mountain performance starts and finishes with Super Deluxe. Features
NEW High-flow main piston reduces High Speed Compression damping, eliminating hang-ups and allows the wheel to easily get out of the way on hard impacts.
RC2T damper, the most tunable shock damper we’ve ever made, offers independent High Speed and Low Speed Compression adjustments, eliminating “cross-talk” so you can tune your shock to exactly how you want it to perform.
RC2T damper offers Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-adjust Threshold lever for added pedaling efficiency.
DebonAir+ air springs maximize fine-tuning potential, allowing you to tune your air volume with Bottomless Tokens to perfectly match your bike, desired ride feel, and the trail ahead.
The optional Hydraulic Bottom Out kicks in to restrict the flow of oil within the last 20% of travel, offering a soft hydraulic cushion that reduces harsh bottom out.
14-15 clicks of Rebound adjustment offer a wider range of tunability and accommodate more rider types.
Castled bottom out bumper reduces harsh bottom-out, leaving extra room for the bold to go big.
Separate and independent Open and Threshold pistons tuned exactly for your ride.
Top-of-the-line Maxima Plush Dynamic Suspension Lube reduces friction to help maintain traction.
Compatible with DebonAir Linear XL air can. With an increase in positive volume, Linear XL is a dead ringer for a coil with super supple action at the top of the travel.
Non-model specific shocks include an extra Progressive air cans for easy tuning no matter where or what you ride.
Specifications
Eye to eye / Stroke 210x55
Air volume Debon Air Linear XL
Remote n/a
Hose length/Cable Exit n/a
Model designator (SR )Ultimate
Damper Type RC2T Hydraulic Bottom Out
Rebound tune R55
Compression tune C34
Pedal tune n/a
Lockout forc eX4
Colour (Shock body)Black
Colour (Decal)Standard
Decal orientation A
Shaft Eyelet Standard
Body Eyelet No Bushing - 90 Deg Rotation
Damping adjustment s Extl rebnd, 2 pos (open/firm), Hi & Low Speed comp adj
Volume reducer 4 Pos 0 Sleeve
Check Tune 0 - Light
E-Bike Approved
Rebound Clicks 15
Max Air Pressure (PSI)360
RockShox: Give your all-day trail bike the firepower it needs for rugged terrain, plus the efficiency to climb back up for more. Super Deluxe Ultimate is a race-proven, award-winning rear shock that keeps getting better. The latest generation has decreased High-Speed Compression damping to devour the downhills. The proven RC2T damper contains an arsenal of suspension tuning settings for any rider or trail. Independently adjust High and Low Speed Compression or reach for the Threshold lever if you need pedaling efficiency. Pure all-mountain performance starts and finishes with Super Deluxe. FEATURES
NEW High-flow main piston reduces High Speed Compression damping, eliminating hang-ups and allows the wheel to easily get out of the way on hard impacts.
RC2T damper, the most tunable shock damper we’ve ever made, offers independent High Speed and Low Speed Compression adjustments, eliminating “cross-talk” so you can tune your shock to exactly how you want it to perform.
RC2T damper offers Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-adjust Threshold lever for added pedaling efficiency.
DebonAir+ air springs maximize fine-tuning potential, allowing you to tune your air volume with Bottomless Tokens to perfectly match your bike, desired ride feel, and the trail ahead.
The optional Hydraulic Bottom Out kicks in to restrict the flow of oil within the last 20% of travel, offering a soft hydraulic cushion that reduces harsh bottom out.
14-15 clicks of Rebound adjustment offer a wider range of tunability and accommodate more rider types.
Castled bottom out bumper reduces harsh bottom-out, leaving extra room for the bold to go big.
SPECIFICATIONSEye to eye / Stroke 190x40, 210x55Damper Type RC2T Hydraulic Bottom OutRebound tune R55Compression tune C26, C30Lockout force X4Shaft Eyelet StandardBody Eyelet No BushingE-Bike Approved E-bike ApprovedWeight Based On 210x50, Linear air can w/1 pos token, standard/standardWeight (g) 458Air volume DebonAir Linear XL(RSSDLX8454022,RSSDLX8454024), DebonAir Linear(RSSDLX8454023)

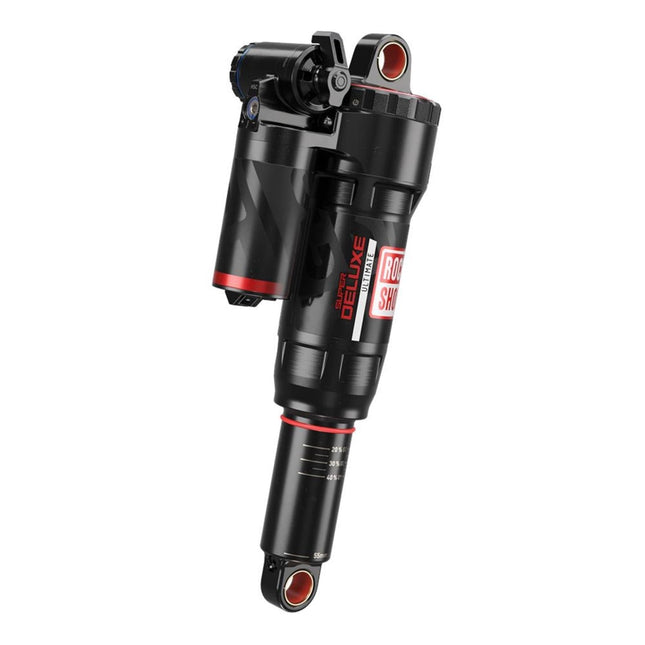

RockShox: The Super Deluxe Ultimate delivers uncompromising all-mountain control, combining downhill composure with efficient climbing capability. Designed for aggressive trail riders, it uses RockShox’s race-proven RC2T damper and DebonAir+ air spring system to fine-tune every aspect of suspension performance. With reduced High-Speed Compression damping and advanced hydraulic bottom-out control, this shock is engineered for ultimate traction, responsiveness, and confidence across demanding terrain.Features • NEW high-flow main piston for smoother response and reduced harshness on big impacts • RC2T damper with independent High-Speed and Low-Speed Compression adjustment for precise tuning • Threshold lever adds pedaling efficiency when needed • DebonAir+ air spring allows volume tuning with Bottomless Tokens • Optional Hydraulic Bottom Out for controlled end-stroke cushioning • 14–15 clicks of rebound adjustment for a wide tuning range • Castled bottom-out bumper for smoother landings • E-bike approvedSpecifications Eye to Eye / Stroke: 190x45, 210x50, 210x55, 230x60 Damper Type: RC2T Hydraulic Bottom Out Rebound Tune: R55 Compression Tune: C30, C34 Lockout Force: X4 Shaft Eyelet: Standard Body Eyelet: Bearing E-Bike Approved: Yes Weight Based On: 210x50, linear air can with 1 position token, standard/standard Weight: 458 g
RockShox: Give your all-day trail bike the firepower it needs for rugged terrain, plus the efficiency to climb back up for more. Super Deluxe Ultimate is a race-proven, award-winning rear shock that keeps getting better. The latest generation has decreased High-Speed Compression damping to devour the downhills. The proven RC2T damper contains an arsenal of suspension tuning settings for any rider or trail. Independently adjust High and Low Speed Compression or reach for the Threshold lever if you need pedaling efficiency. Pure all-mountain performance starts and finishes with Super Deluxe. FEATURES
NEW High-flow main piston reduces High Speed Compression damping, eliminating hang-ups and allows the wheel to easily get out of the way on hard impacts.
RC2T damper, the most tunable shock damper we’ve ever made, offers independent High Speed and Low Speed Compression adjustments, eliminating “cross-talk” so you can tune your shock to exactly how you want it to perform.
RC2T damper offers Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-adjust Threshold lever for added pedaling efficiency.
DebonAir+ air springs maximize fine-tuning potential, allowing you to tune your air volume with Bottomless Tokens to perfectly match your bike, desired ride feel, and the trail ahead.
The optional Hydraulic Bottom Out kicks in to restrict the flow of oil within the last 20% of travel, offering a soft hydraulic cushion that reduces harsh bottom out.
14-15 clicks of Rebound adjustment offer a wider range of tunability and accommodate more rider types.
Castled bottom out bumper reduces harsh bottom-out, leaving extra room for the bold to go big.
SPECIFICATIONSEye to eye / Stroke 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x60(TR), 205x62.5(TR), 205x65(TR)Damper Type RC2T Hydraulic Bottom OutRebound tune R25(RSSDLX8454026), R55Compression tune C26, C30, C37Lockout force X4Shaft Eyelet TrunnionBody Eyelet StandardE-Bike Approved E-bike ApprovedWeight Based On 210x50, Linear air can w/1 pos token, standard/standardWeight (g) 458Air volume;Debon Air Linear XL RSSDLX8454026DebonAir Linear RSSDLX8454007, RSSDLX8454008, RSSDLX8454009, RSSDLX8454013, RSSDLX8454014, RSSDLX8454015, RSSDLX8454016, RSSDLX8454017DebonAir Progressive RSSDLX8454027, RSSDLX8454028
