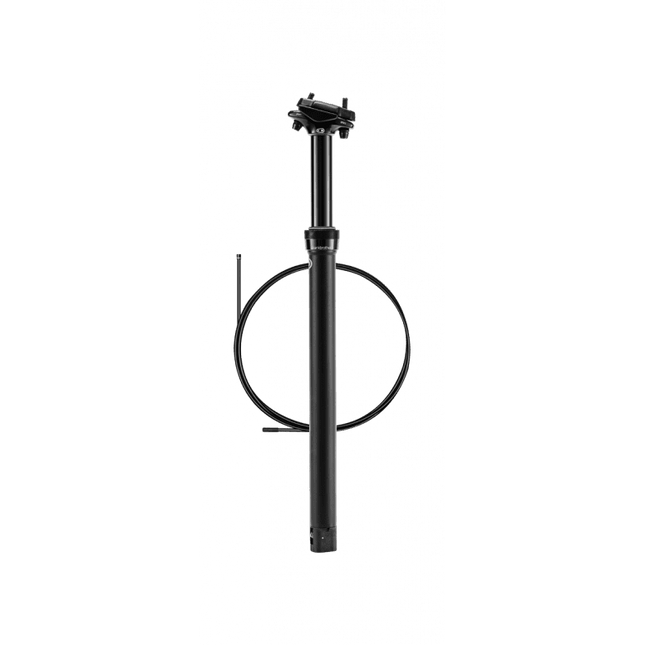

The all-new Highline XC/Gravel delivers infinite adjustment, smooth feel, and easy installation.
27.2mm seatpost diameter to fit most XC and gravel bikes
Jagwire® cable and housing
Self-contained IFP hydraulic cartridgeÂ
Internal routingÂ
Quick connect mechanism for ease of cable installation
Linear actuator for quick return speed
2-bolt standard head
Specifications
Material: 7075-T6 aluminium
Setback: 0
Minimum stack height: 60mm
Warranty 4 years
Specs 60mm;
Max extended length: 260mm
Max insertion length: 264mm
Total post length: 387mm
Weight: 410g (27.2)
Specs 80mm;
Max extended length: 280mm
Max insertion length: 264mm
Total post length: 407mm
Weight: 434g (27.2)
Specs 100mm;
Max extended length: 300mm
Max insertion length: 264mm
Total post length: 427mm
Weight: 459g (27.2)
Specs 125mm;
Max extended length: 325mm
Max insertion length: 264mm
Total post length: 452mm
Weight: 467g (27.2)

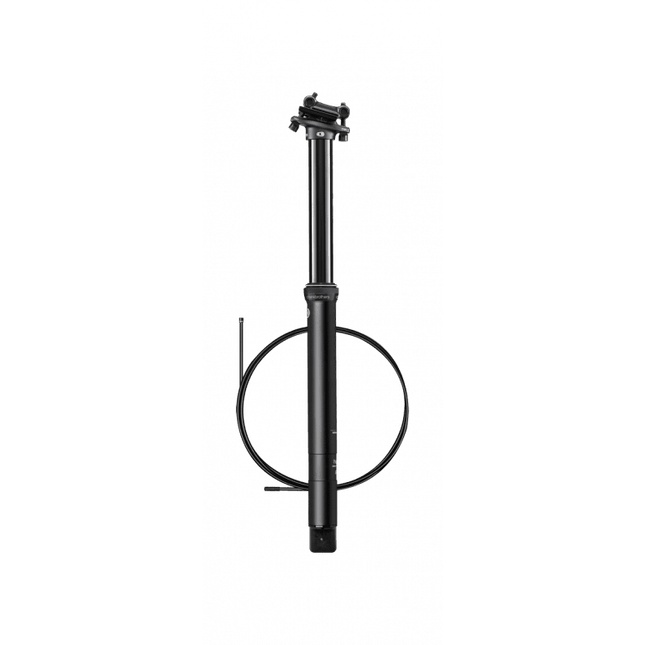

The all-new Highline delivers infinite adjustment, smooth feel, and easy installation for any bike.Details
Shorter insertion length to fit more bikes
Premium Trelleborg® sealing
Exclusive Igus® LL-glide bearings and keys
Jagwire® cable and housing
Self-contained IFP hydraulic cartridgeÂ
Internal routingÂ
Quick connect mechanism for ease of cable installation
Linear actuator for quick return speed
2-bolt quick-connect head
Remote sold separatelyÂ
Specifications
Material: 7075-T6 aluminum
Setback: 0
Minimum stack height: 47mm
Warranty 4 years
Specs 100mm;
Max extended length: 237mm
Max insertion length: 217mm
Total post length: 367mm
Weight: 475g (30.9), 490g (31.6)
Specs 125mm;
Max extended length: 286mm
Max insertion length: 242mm
Total post length: 417mm
Weight: 515g (30.9), 532g (31.6)
Specs 150mm;
Max extended length: 336mm
Max insertion length: 268mm
Total post length: 467mm
Weight: 551g (30.9), 572g (31.6)
Specs 170mm;
Max extended length: 377mm
Max insertion length: 287mm
Total post length: 507mm
Weight: 583g (30.9), 604g (31.6)
Specs 200mm;
Max extended length: 450mm
Max Insertion length: 327mm
Total post length: 577mm
Weight: 679g

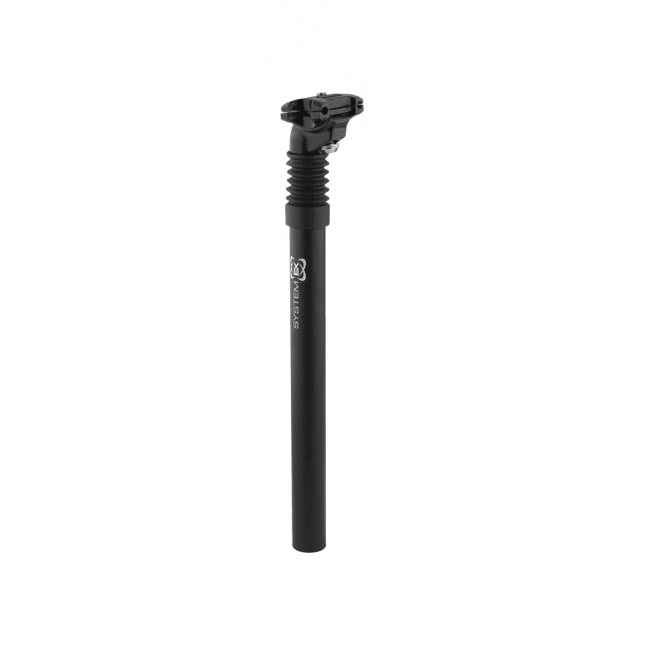

Cushion road shocks with this great value sprung/elastomer seatpost. Shims available for other sizes.
45mm travel
Adjustable preload
Lightweight 6061-T6 alloy
Micro-adjusting forged head
350mm
388g

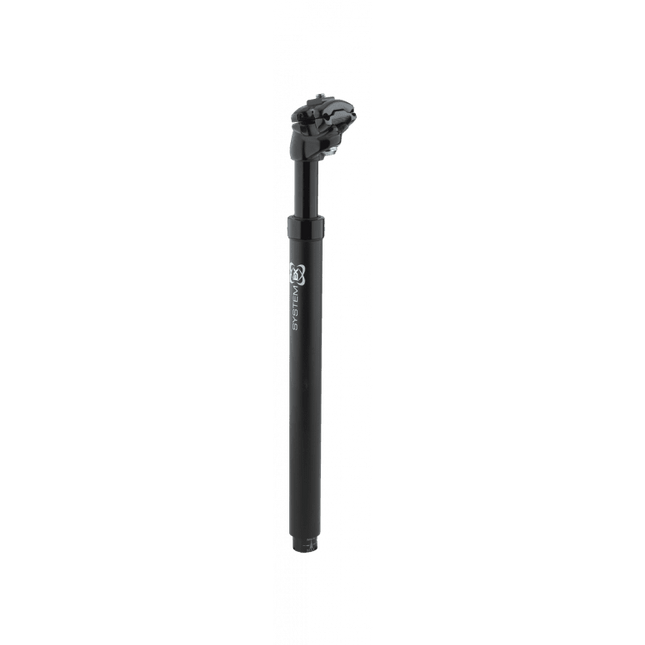

A simple but effective way to cushion road shocks. This sprung seatpost with pre-load adjustment can be set to suit your preferred ride. Shims available for other sizes.
35mm travel
Adjustable preload
Lightweight 6061-T6 alloy
Micro-adjusting forged head
350mm
